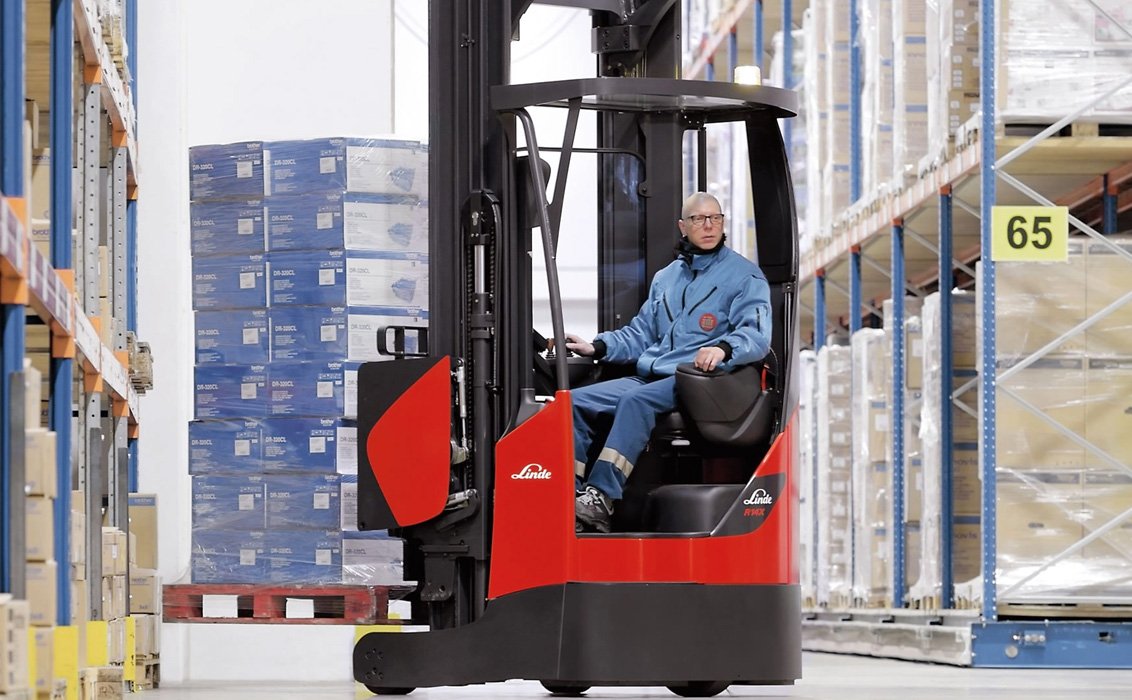

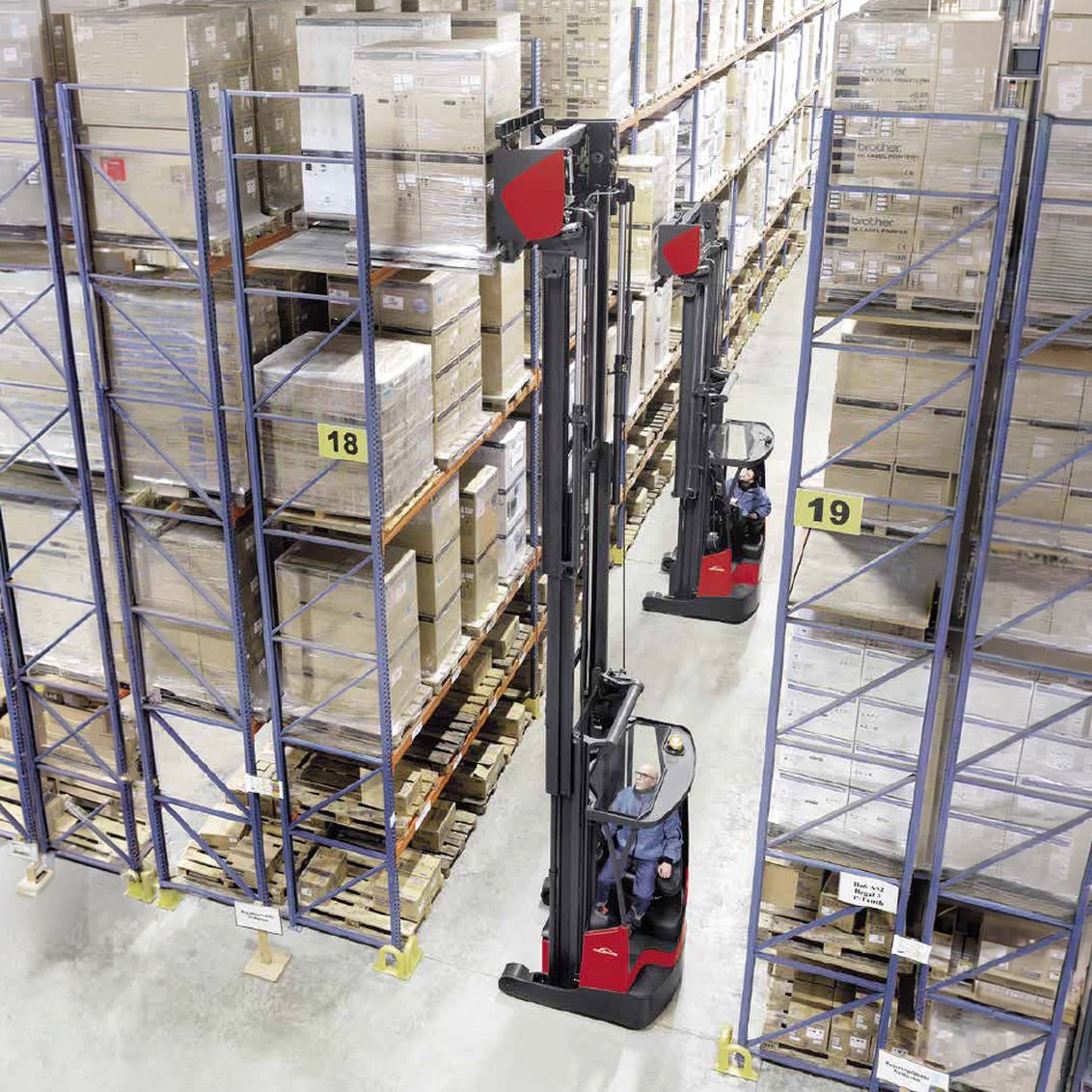

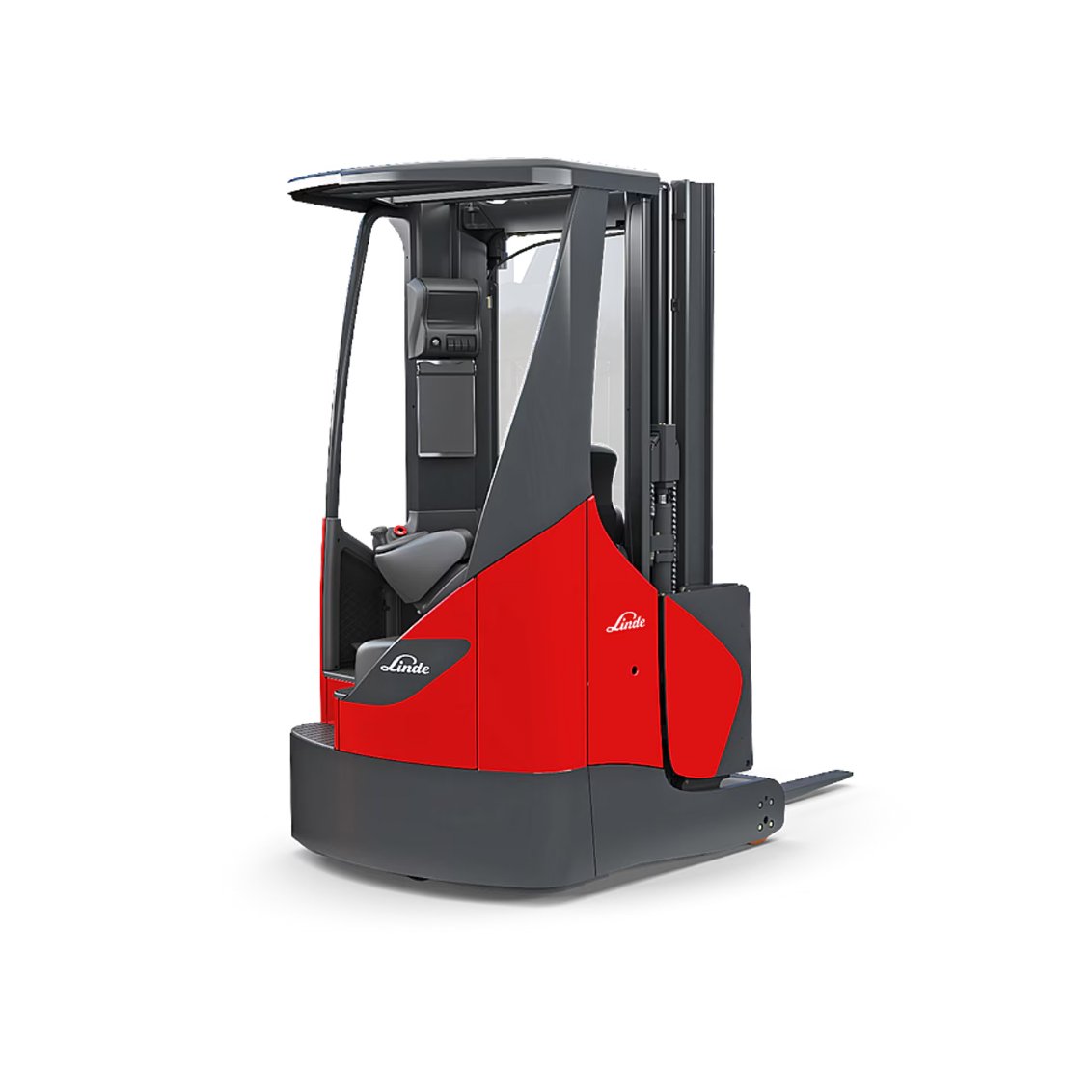

Linde R17 Electric Narrow Aisle Forklift
Designed with Linde’s reputation of top-notch reliability and performance, the Linde R17SX Reach Truck offers a lift capacity of 3,500 lbs. Features such as a service door that opens greater than 90 degrees and ergonomic controls help your operators excel on the job. Work with confidence thanks to excellent all-round visibility including a glass overhead guard. Increase productivity and minimize downtime – the Linde R17SX can deliver superior results to your business.
Specifications
| Lowered Overall Height | 116.0 in |
| Mast Type | 3-Stage |
| Free Lift Height | 80.0 in |
| Lift Height | 250.0 in |
| Mast | 3-Stage |
| Voltage | 48.0 V |
| Power Mode | Electric |
| Operating Weight | 8258.0 lbs |
| Overall Length | 105.0 in |
| Overall Width | 50.0 in |
| Height to Top Overhead Guard | 86.0 in |
| Fork Size (T x W x L) | 1.77 x 3.94 x 45.28 (inches) in |
| Load Center | 24.0 in |
| Lifting Speed (Loaded/Unloaded) | 78.74/137.8 (ft/min) ft/sec |
| Capacity | 3748.0 lbs |
| Travel Speed Loaded | 9.0 |
