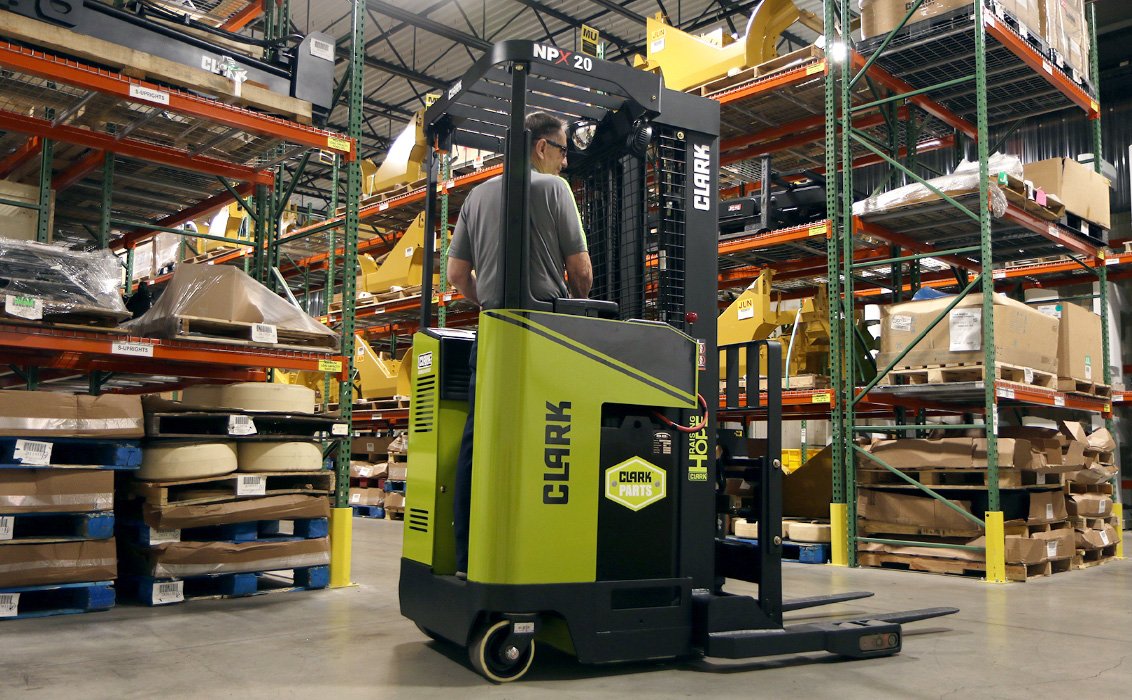

Clark NPX 20 Electric Narrow Aisle Forklift
The Clark NPX 20 is an electric narrow aisle forklift built for productivity and safety in high-density warehouse environments. Featuring a heavy-duty 4,000-pound lift capacity and a versatile dual 24V/36V electric power system , this narrow aisle machine utilizes a 100% AC electrical design to deliver smooth acceleration, fast travel, and highly efficient lifting speeds.
Engineered for maximum visibility, the NPX 20 features a unique operator compartment that positions the driver at a 65-degree angle from the centre, providing the widest range of visual confirmation when traveling and handling loads. Operational confidence is further enhanced by electronic speed-sensitive power steering, auto-centering drive wheels, and electro-mechanical braking, ensuring operators maintain precise control with minimal fatigue throughout their shift.
Specifications
| Lift Capacity | 4000.0 lbs |
| Max Lift Height | 198 - 366 in |
| Free Lift Height | 54 - 126 in |
| Lowered Overall Height | 89 - 161 in |
| Mast Type | Triple Stage |
| Operating Weight | 6900.0 lbs |
| Baseleg Outer Width | 42.0 - 62.25 (Configurable Outriggers) in |
| Overall Length (to Fork Face) | 70.25 in |
| Overhead Guard Height | 95.0 in |
| Turning Radius | 66.5 in |
| Minimum Aisle Width | 102.0 in |
| Travel Speed (Unloaded) | 7.5 mph |
| Lift Speed (Loaded) | 67 fpm |
| Steering Type | Electronic Power Steering |
| Tire Type | Solid (Urethane/Rubber) |
| Power Mode | Battery (Lead-Acid) |
| Voltage | 24/36 V |
