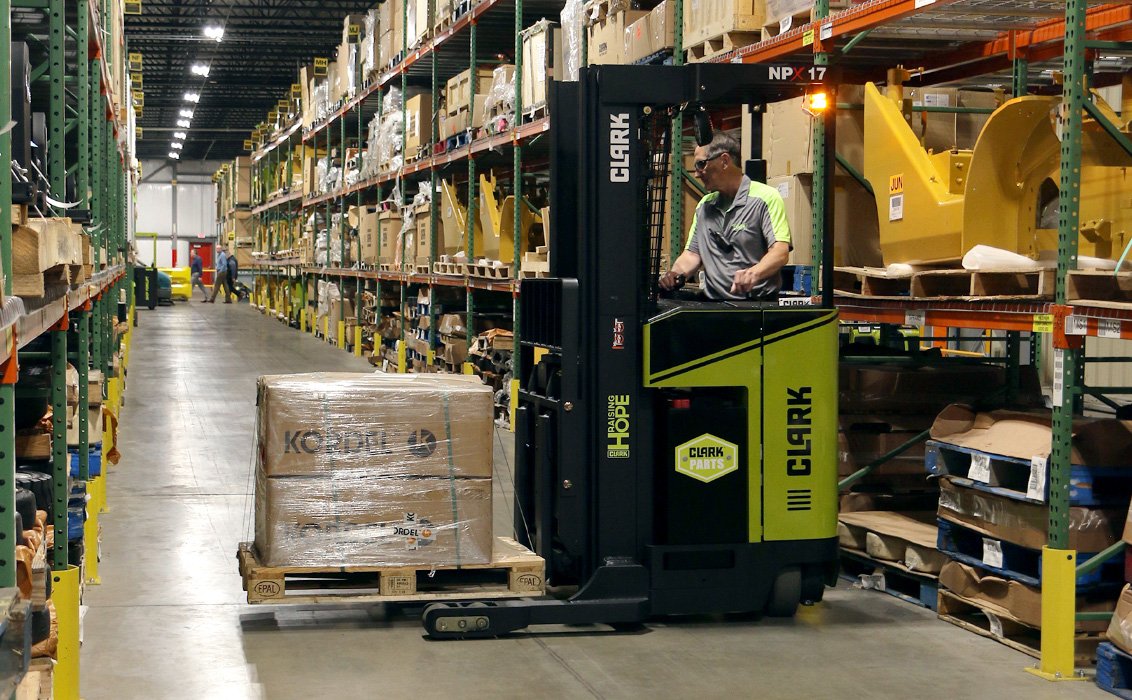

Clark NPX 17 Electric Narrow Aisle Forklifts
For operations that need serious narrow-aisle performance without over-buying on mast height, the Clark NPX 17 hits the sweet spot. Delivering a solid 3,500-pound capacity, this reach truck is built around a versatile dual 24V/36V system, making it incredibly easy to drop into your facility's existing charging infrastructure. Because it utilizes a slightly more compact battery footprint than its larger siblings, it offers exceptional agility for distribution centres with standard racking setups up to 270 inches.
We know your operators spend long, demanding hours on their feet, so the NPX 17 is engineered to keep them fresh and focused. The signature 65-degree side-stance gives the operator a massive, unobstructed field of view whether they are pushing forward down a tight aisle or backing out of a blind rack. Combine that open visibility with dead-on electronic power steering and smooth, highly responsive 100% AC drive motors, and you get a machine that works hard, reacts instantly, and stays out of the shop.
Specifications
| Lift Capacity | 3500.0 lbs |
| Max Lift Height | 198 - 270 in |
| Free Lift Height | 54 - 84 in |
| Lowered Overall Height | 89 - 119 in |
| Mast Type | Triple Stage |
| Operating Weight | 6900.0 lbs |
| Baseleg Outer Width | 42.0 - 62.25 (Configurable Outriggers) in |
| Overall Length (to Fork Face) | 70.25 in |
| Overhead Guard Height | 95.0 in |
| Turning Radius | 66.5 in |
| Minimum Aisle Width | 102.0 in |
| Travel Speed (Unloaded) | 7.5 mph |
| Lift Speed (Loaded) | 67 fpm |
| Steering Type | Electronic Power Steering |
| Tire Type | Solid (Urethane/Rubber) |
| Power Mode | Battery (Lead-Acid) |
| Voltage | 24/36 V |
