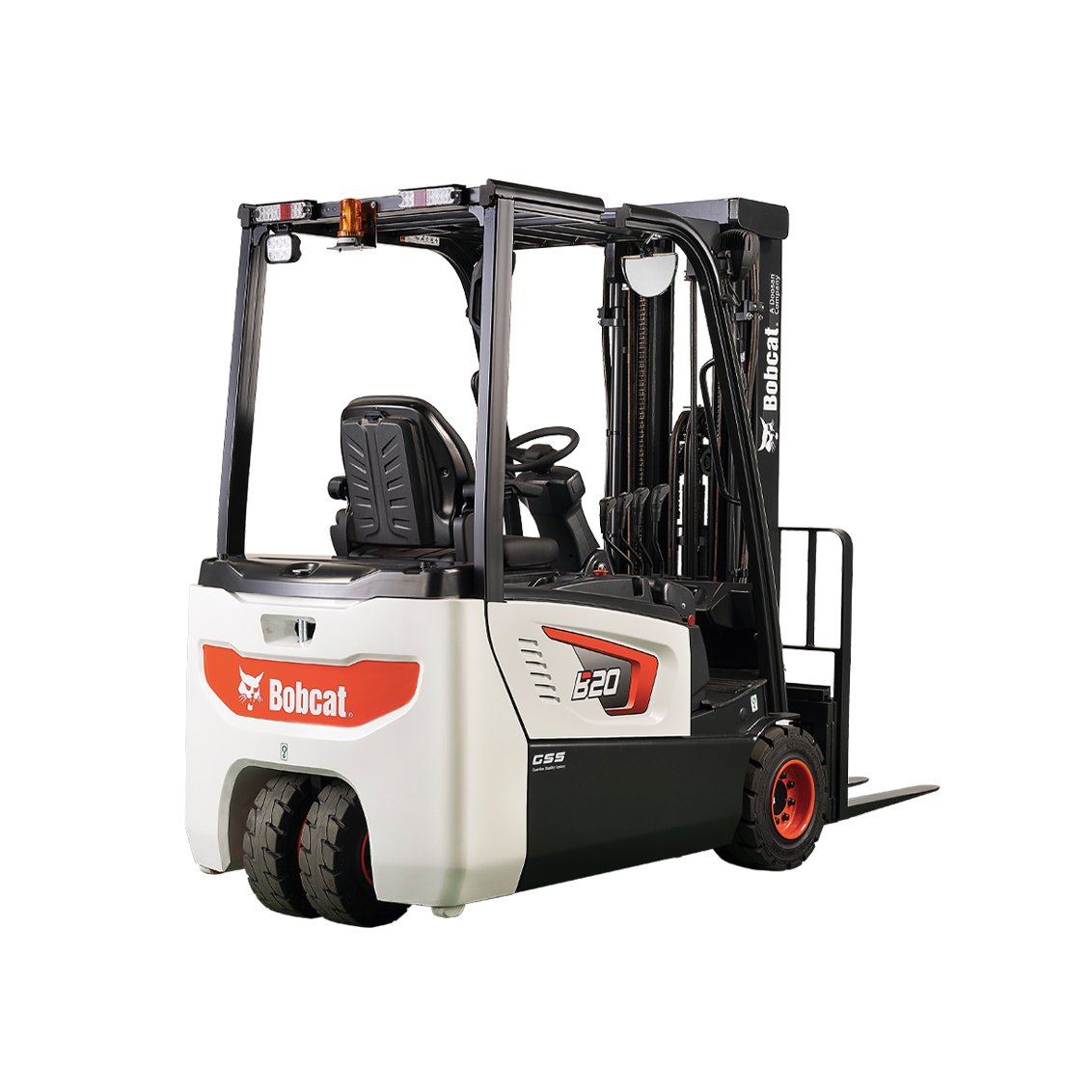

Bobcat B20T-7 Plus 3-Wheel Electric Cushion Forklift
Maximize your heavy-duty narrow-aisle warehouse operations with the Bobcat B20T-7 Plus, the flagship 3-wheel electric counterbalance forklift offering an impressive 4,000-pound lifting capacity. Driven by an industry-proven 100% AC drive system and an advanced hydrostatic steer axle, this powerful machine combines the raw lifting capability of a larger unit with the tight turning radius necessary for confined spaces.
Designed to endure demanding indoor and outdoor environments, the B20T-7 Plus features IP65-rated controllers and IP43-rated enclosed motors for ultimate dust and moisture protection. Operators can confidently power through long shifts thanks to an ergonomic operator compartment, a fully adjustable premium suspension seat, and a fatigue-reducing E-Motor Foot Brake. Every maneuver is backed by standard safety innovations, including the Guardian Stability System and an automatic electro-magnetic parking brake.
Specifications
| Lift Capacity | 4000.0 lbs |
| Up to Max Lift Height | 236.2 in |
| Free Lift | 5.3 in |
| Load Centre | 24.0 in |
| Mast Type | Standard Two-Stage (FF and FFT Optional) |
| Steering Type | Hydrostatic Steer Axle |
| Operator Protection | Standard Overhead Guard |
| Operating Weight | 7654.0 lbs |
| Overall Width | 44.1 in |
| Overall Length (to Fork Face) | 79.9 in |
| Overhead Guard Height | 79.0 in |
| Turning Radius | 64.9 in |
| Max Travel Speed | 10.6 mph |
| Max Gradeability | 24.0 % |
| Brake Type | E-Motor Foot Brake (EFB) / Auto-Electric Parking Brake |
| Max Lift Speed | 118 fpm |
| Front Tire Size | 200 x 50 - 10 in |
| Rear Tire Size | 16 x 6 - 8 in |
| Tire Type | Super Elastic / Cushion |
| Power Mode | Battery (Lead-Acid standard / Lithium-Ion optional) |
| Voltage | 48 V |
