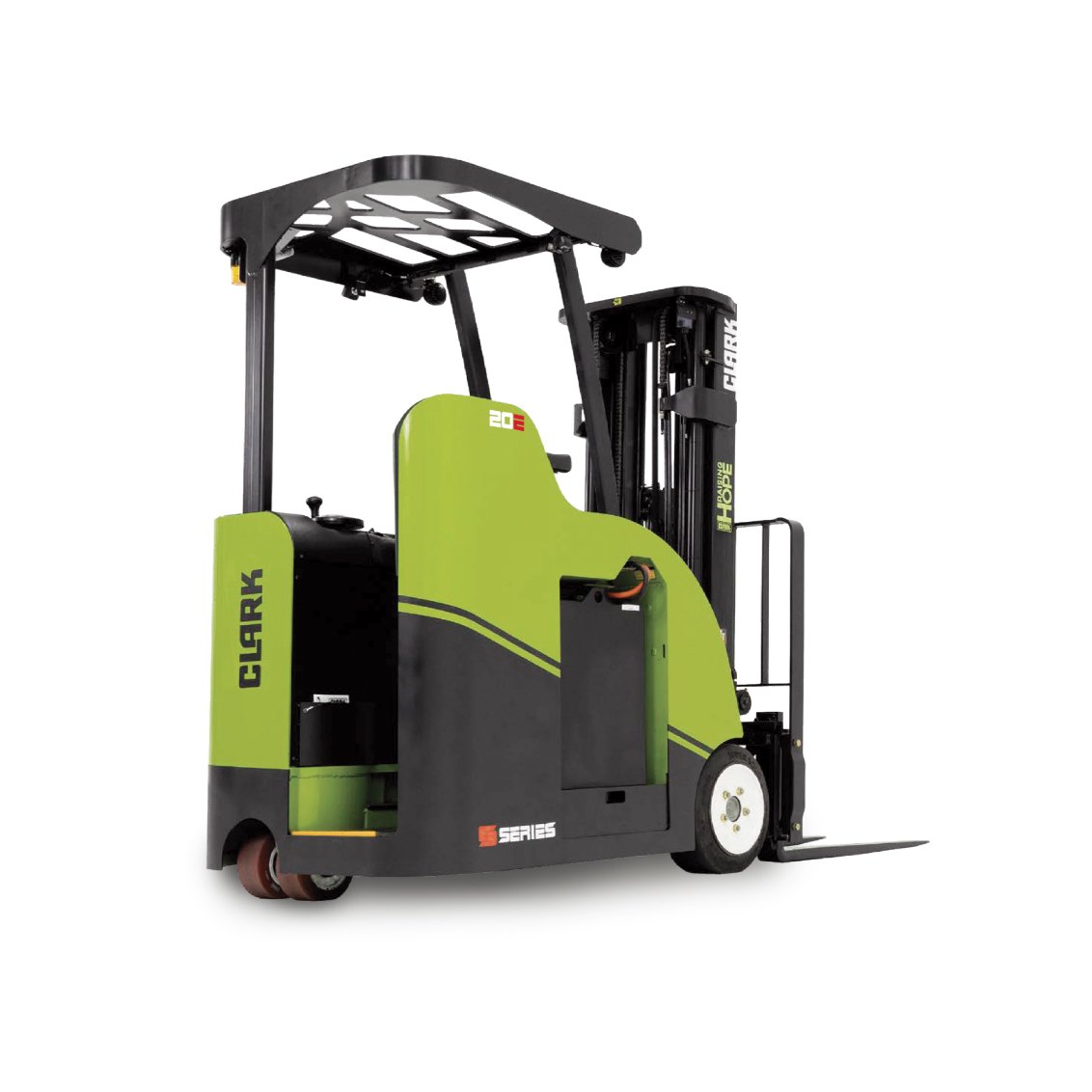

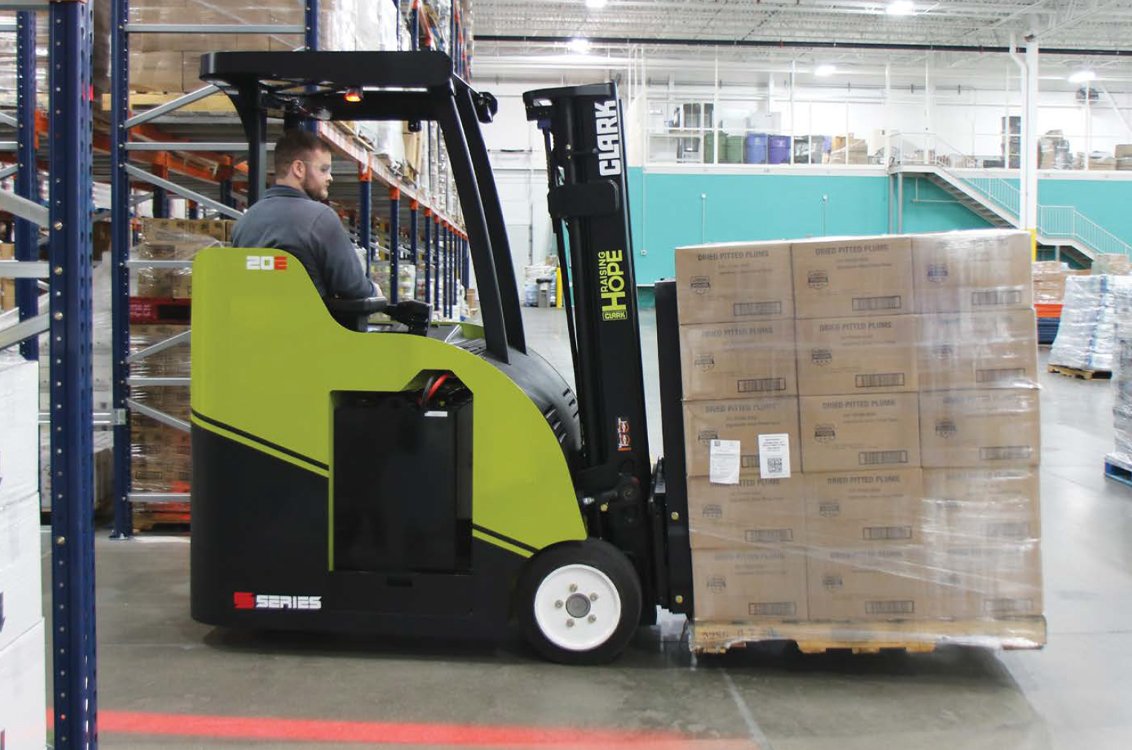

Clark SES20 Electric Stand-Up Cushion Forklift
Dominate narrow aisles with the Clark SES20, a heavy-duty 4,000-pound capacity stand-up forklift engineered for high-density warehouses. Driven by a 100% AC system and optional factory lithium-ion power, this zero-emissions workhorse maximizes uptime while eliminating traditional brake maintenance.
Operators stay sharp all shift long thanks to an advanced floating floorboard that absorbs dock-shock and an ergonomic, synchronized armrest control. When configured with the premium Quad-stage mast, the SES20 securely hoists loads up to 275.5 inches, relying on a rigid nested I-beam design and an 8-roller carriage to eliminate load wobble. Complete with automated curve control and a 5-inch color Smart Dash, it delivers precise handling in the tightest spaces.
Specifications
| Lift Capacity | 4000.0 lbs |
| Up to Max Lift Height | 276.5 in |
| Free Lift | 71.0 in |
| Load Centre | 24.0 in |
| Mast Type | Standard Triple Stage (Optional Quad Stage) |
| Steering Type | Advanced Electric Steering |
| Operator Protection | Standard Overhead Guard |
| Operating Weight | 9648.0 lbs |
| Overall Width | 42.0 in |
| Overall Length (to Fork Face) | 70.9 in |
| Overhead Guard Height | 86.8 in |
| Turning Radius | 58.1 in |
| Max Travel Speed | 7.3 mph |
| Max Gradeability | 15.0 % |
| Brake Type | Maintenance-Free Electric |
| Max Lift Speed | 116.1 fpm |
| Front Tire Size | 18 x 8 x 12.12 in |
| Rear Tire Size | 9 x 5 in |
| Tire Type | Cushion |
| Power Mode | Battery (Lead-Acid / Li-ION) |
| Voltage | 36 V / 48 V |
Current Promotions
Current promotions can save you money. We offer promotions that may include Low finance rates, cash back, bonus attachments and more. Check out our current promotional offers to see what may apply to your next equipment purchase.
For a limited time, get 0% financing for 48 months (up to $50,000) on all Clark Electric forklifts, combined with a new standard 5 year warranty. Incredible rates and unbeatable protection. Click to learn more!
Specifications and images may vary in accuracy.
