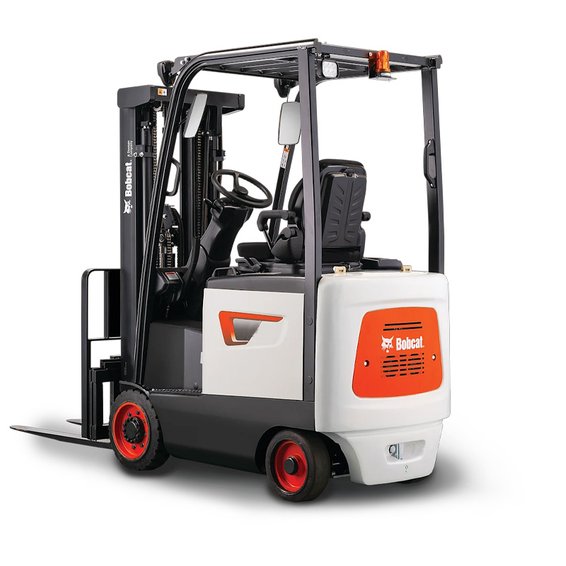

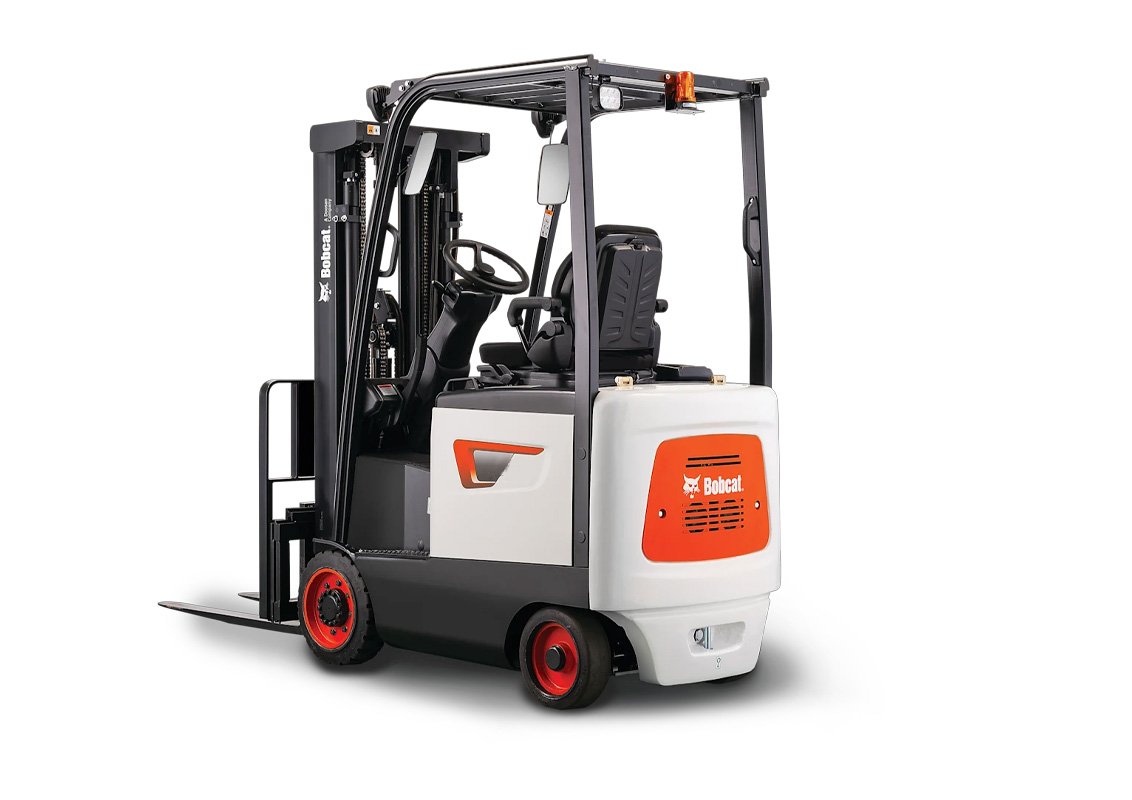

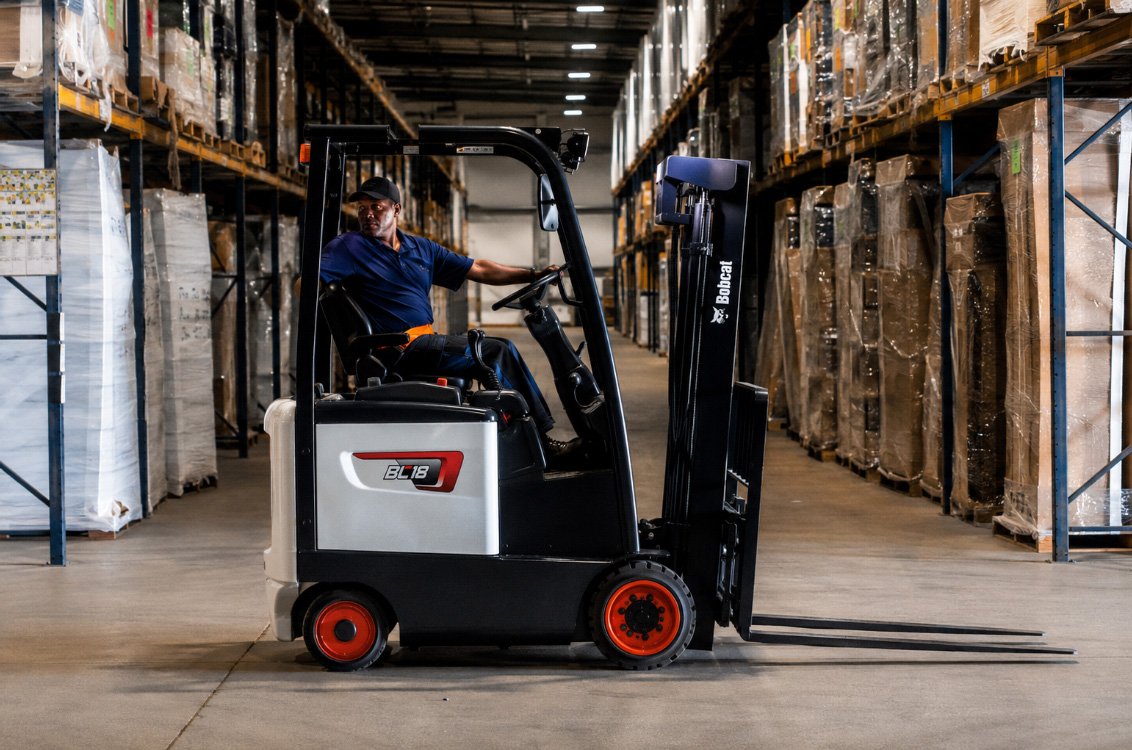

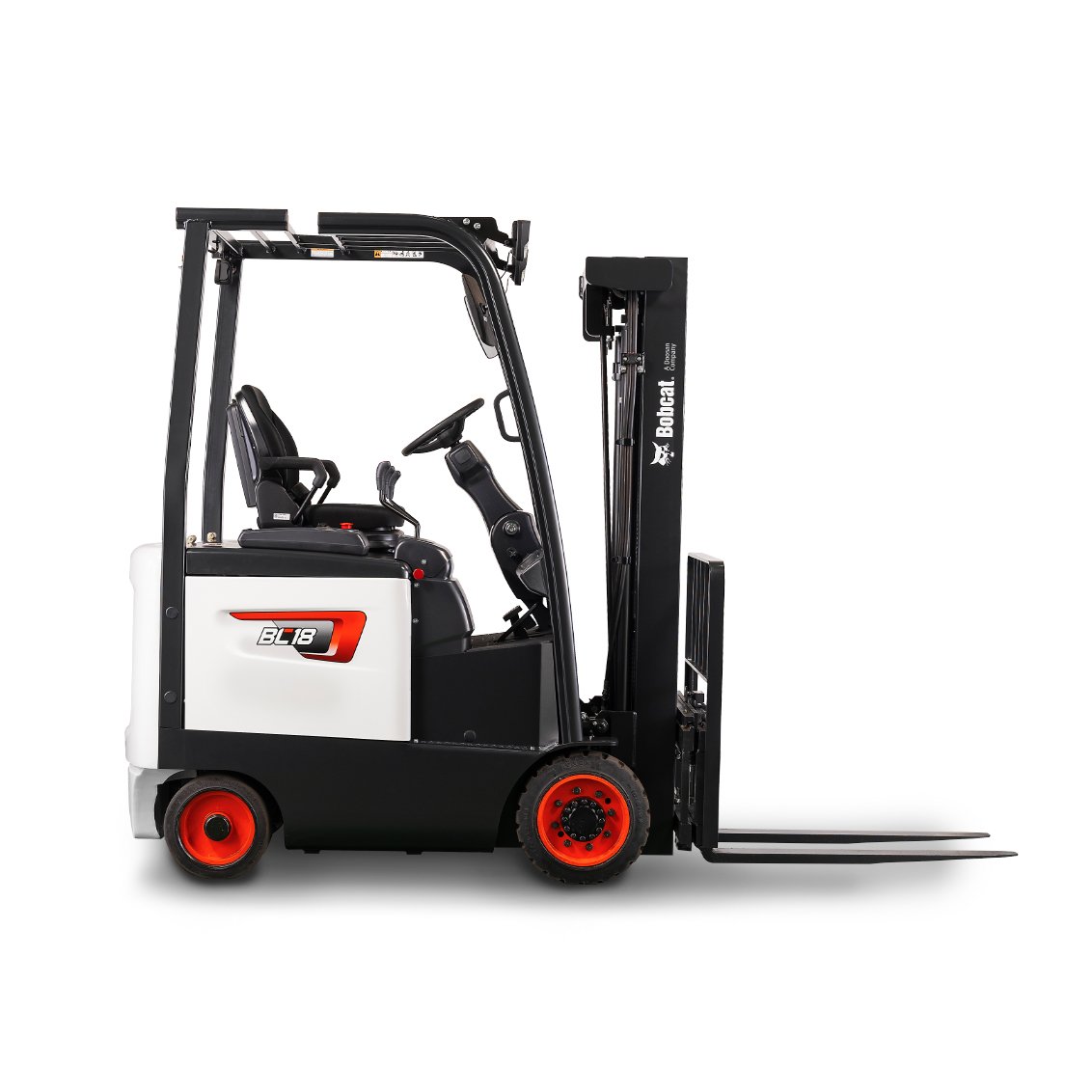

Bobcat BC20SC-5 Electric Cushion Forklift
Step up to top-tier indoor material handling with the Bobcat BC20SC-5. Boasting a 4,000-pound lift capacity, this 4-wheel electric cushion tire forklift is built to thrive in dense warehouse environments, tight racking layouts, and busy loading docks. Driven by an advanced AC electrical system, available in 36V or 48V, it delivers exceptional acceleration and gradeability while keeping energy consumption remarkably efficient.
The BC20SC-5 is designed to maximize operator comfort and minimize fatigue during long shifts. It features deck-mounted hydraulic levers for natural arm positioning, a fully adjustable steering column, and a rear grab handle with an integrated horn button for safe, confident reverse travel. Paired with Bobcat’s virtually maintenance-free Oil-Cooled Disc Brakes (OCDB) and a rugged full-floating drive axle, this machine is engineered to keep your total cost of ownership exceptionally low.
Specifications
| Lift Capacity | 4000.0 lbs |
| Up to Max Lift Height | 130.0 in |
| Free Lift | 5.3 in |
| Load Centre | 24.0 in |
| Mast Type | Standard Two-Stage (FF and FFT Optional) |
| Operator Protection | Standard Overhead Guard |
| Operating Weight | 7870.0 lbs |
| Overall Width | 39.0 in |
| Overall Length (to Fork Face) | 79.9 in |
| Overhead Guard Height | 86.8 in |
| Turning Radius | 71.2 in |
| Max Travel Speed | 10.6 mph |
| Max Gradeability | 12.0 % |
| Brake Type | Shoe / Oil-Cooled Disc Brakes (ODB) / Hand-Mechanical Parking Brake |
| Max Lift Speed | 118 fpm |
| Front Tire Size | 18 x 7 x 12.12 in |
| Rear Tire Size | 14 x 5 x 10 in |
| Tire Type | Cushion |
| Power Mode | Battery (Lead-Acid) |
| Voltage | 36 V / 48 V |
