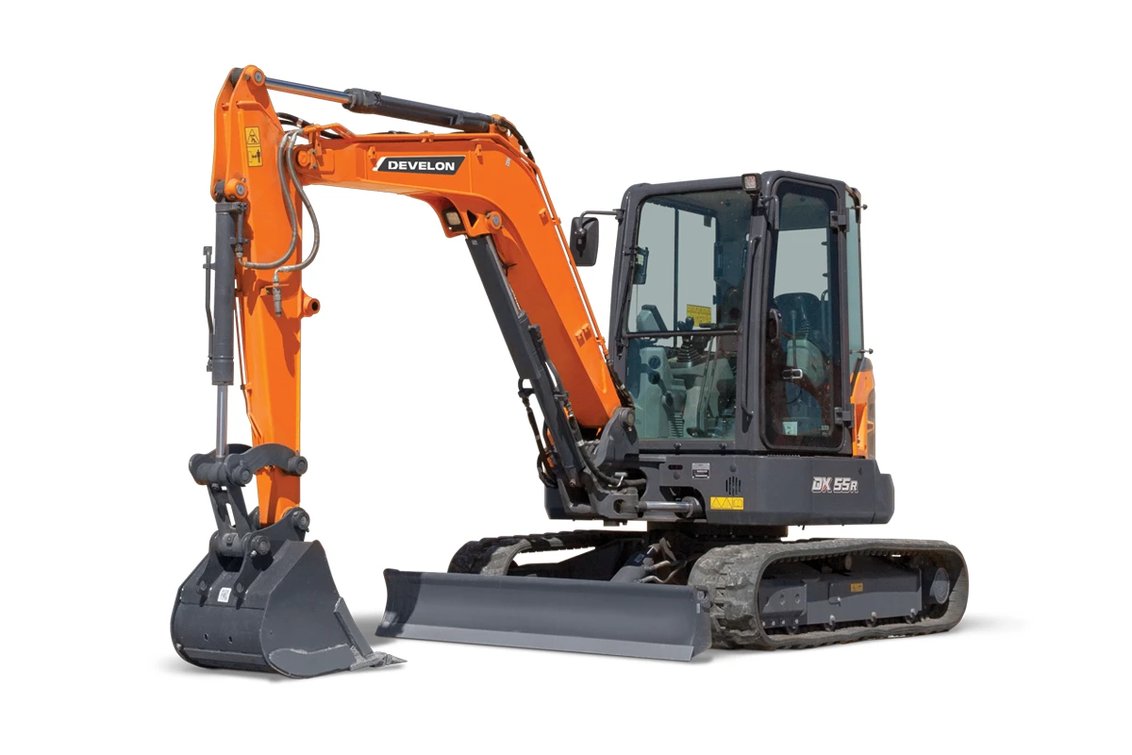

DEVELON DX55R-7 Mini Excavators
Heavyweight performance in a reduced tail swing package. The DEVELON DX55R-7 utilizes a reliable 48.8 HP Tier 4 Final engine and an impressive 37.0 gpm hydraulic pump to deliver industry-leading multi-function speed and power. Boasting a 12,655-pound operating weight and an extended 234.3-inch ground-level reach, this machine provides the stability and working range required for high-production commercial utility trenching and intensive site preparation.
-
Dominate Tough Soil: Muscle through the most challenging earthwork with an aggressive 9,766 lbf of bucket breakout force and 6,151 lbf of arm digging force.
-
Tight-Quarters Agility: A reduced tail swing design keeps the machine compact and maneuverable, minimizing the risk of property damage on crowded job sites.
-
Unmatched Attachment Performance: Operate heavy breakers, thumbs, and flail mowers seamlessly with a single main pump delivering 37.0 gpm of continuous flow.
-
Maximized Uptime: Keep your crew working longer with an oversized 20.6-gallon fuel tank and a fully enclosed, sound-suppressed ROPS/TOPS cabin equipped with automatic climate control.
Specifications
| Operator Protection | ROPS / TOPS |
| Tail Swing Type | Minimal Tail Swing |
| Operating Weight | 12655.0 lb |
| Overall Width | 78.0 in |
| Overall Height | 101.4 in |
| Overall Length | 214.4 in |
| Horsepower | 48.8 hp |
| Engine Manufacturer | DEVELON |
| Engine Model | D18 |
| Emissions Tier | Tier 4 Final |
| Fuel Tank Capacity | 20.6 gal |
| Maximum Digging Depth | 142.9 in |
| Maximum Reach at Ground Level | 234.3 in |
| Maximum Dumping Height | 151.0 in |
| Bucket Breakout Force | 9766.0 lbf |
| Stick Digging Force - Standard | 6151.0 lbf |
| Blade Size (H x W) | 13.7 x 78 in |
| Arm Configuration | Standard |
| Auxiliary Circuit Flow | 37.0 gal/min |
| Track Shoe Type | Rubber |
| Ground Pressure | 4.7 psi |
Current Promotions
Current promotions can save you money. We offer promotions that may include Low finance rates, cash back, bonus attachments and more. Check out our current promotional offers to see what may apply to your next equipment purchase.
0% Financing for up to 48 months on ALL new DEVELON Excavators. Choose from Crawler Excavators, Mini Excavators, Wheeled Excavators and more. Click here for details.
Specifications and images may vary in accuracy.
