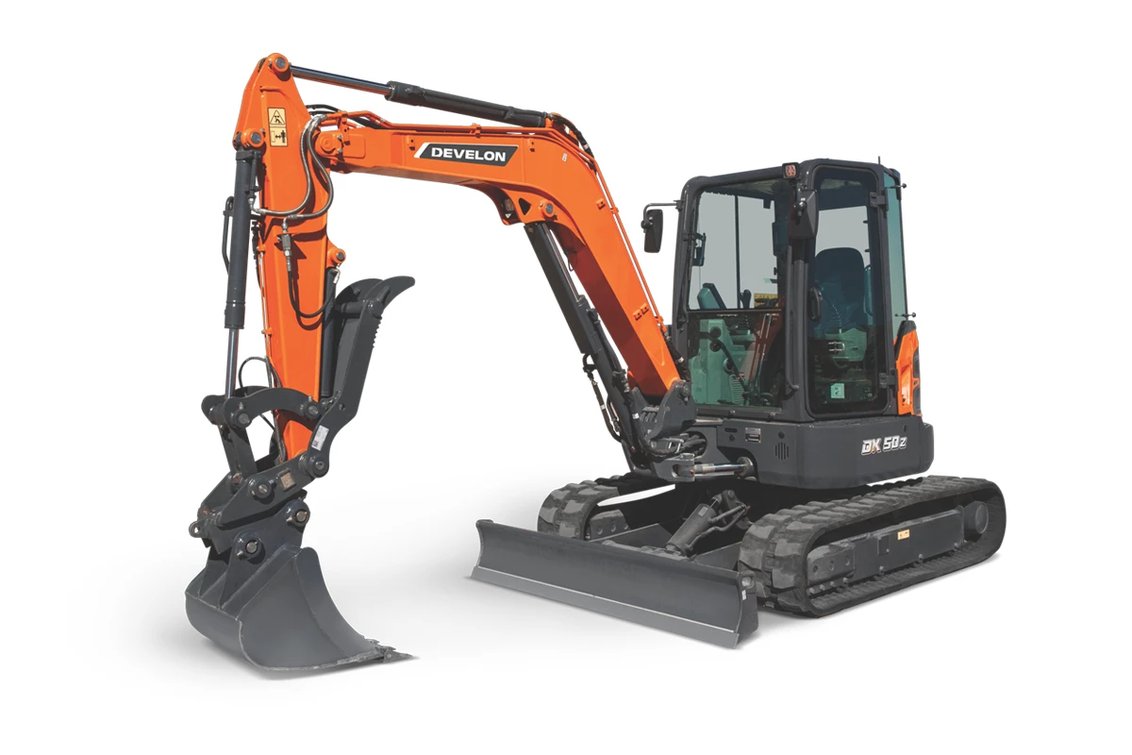

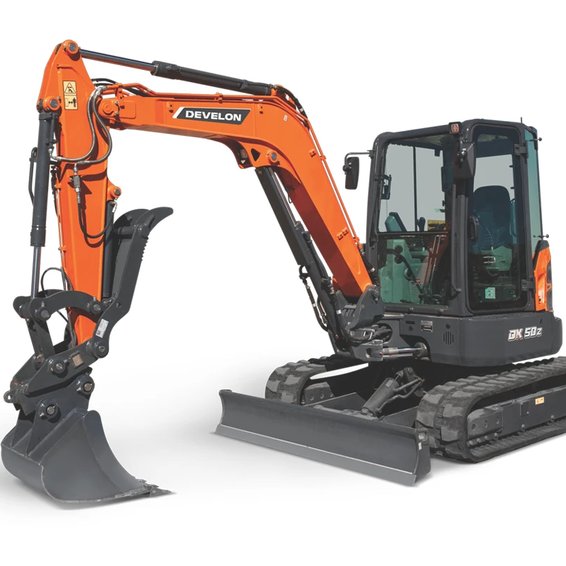

DEVELON DX50Z-7 Mini Excavator
The DEVELON DX50Z-7 combines a tight-quarters zero tail swing design with the heavy-duty performance of a 5-metric-ton machine. Powered by a robust 48.8 HP DEVELON engine, this excavator features a massive 37.0 gpm main hydraulic pump to effortlessly run demanding attachments. With an operating weight of nearly 12,000 pounds and an impressive 7,606 lbf of bucket breakout force, it provides the exceptional stability and digging power needed for aggressive trenching and commercial site prep.
-
Unmatched Breakout Power: Muscle through rocky soil and dense clay with a formidable 7,606 lbf of bucket breakout force and 5,181 lbf of arm digging force.
-
High-Volume Hydraulics: Ensure your heavy attachments never lose speed with a single main pump delivering an impressive 37.0 gpm of continuous flow.
-
Work in Tight Spaces: The zero tail swing design and 78.0-inch overall width allow operators to work confidently along foundations and in single-lane traffic zones.
-
Premium Comfort: The all-weather ROPS/TOPS certified cabin includes a touchscreen monitor, Bluetooth stereo, and adjustable seating to keep you working comfortably the entire work shift.
Specifications
| Operator Protection | ROPS / TOPS |
| Tail Swing Type | Zero Tail Swing |
| Operating Weight | 11988.0 lb |
| Overall Width | 78.0 in |
| Overall Height | 101.4 in |
| Overall Length | 212.1 in |
| Horsepower | 48.8 hp |
| Engine Manufacturer | DEVELON |
| Engine Model | D18 |
| Emissions Tier | Tier 4 Final |
| Fuel Tank Capacity | 17.4 gal |
| Maximum Digging Depth | 137.0 in |
| Maximum Reach at Ground Level | 228.4 in |
| Maximum Dumping Height | 150.4 in |
| Bucket Breakout Force | 7606.0 lbf |
| Stick Digging Force - Standard | 5181.0 lbf |
| Blade Size (H x W) | 13.8 x 70 in |
| Arm Configuration | Standard |
| Auxiliary Circuit Flow | 37.0 gal/min |
| Track Shoe Type | Rubber |
| Ground Pressure | 4.41 psi |
Current Promotions
Current promotions can save you money. We offer promotions that may include Low finance rates, cash back, bonus attachments and more. Check out our current promotional offers to see what may apply to your next equipment purchase.
Tackle your toughest seasonal projects with the DEVELON DX35Z-7 Mini Excavator. Upgrade your equipment lineup today with this versatile, high-performance machine and get ready to maximize your job site efficiency.
Specifications and images may vary in accuracy.
