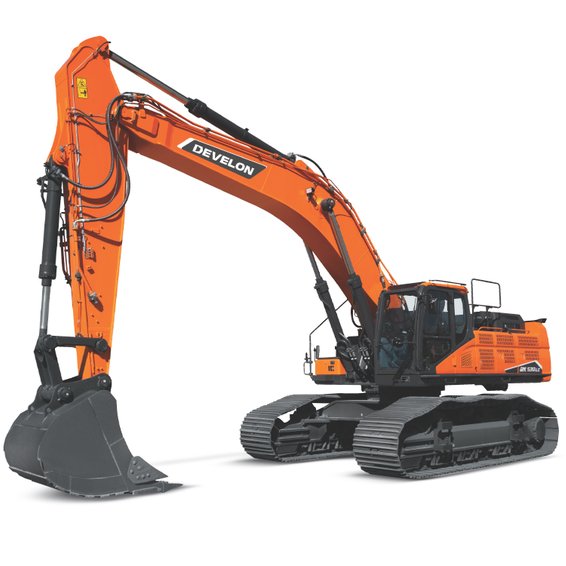

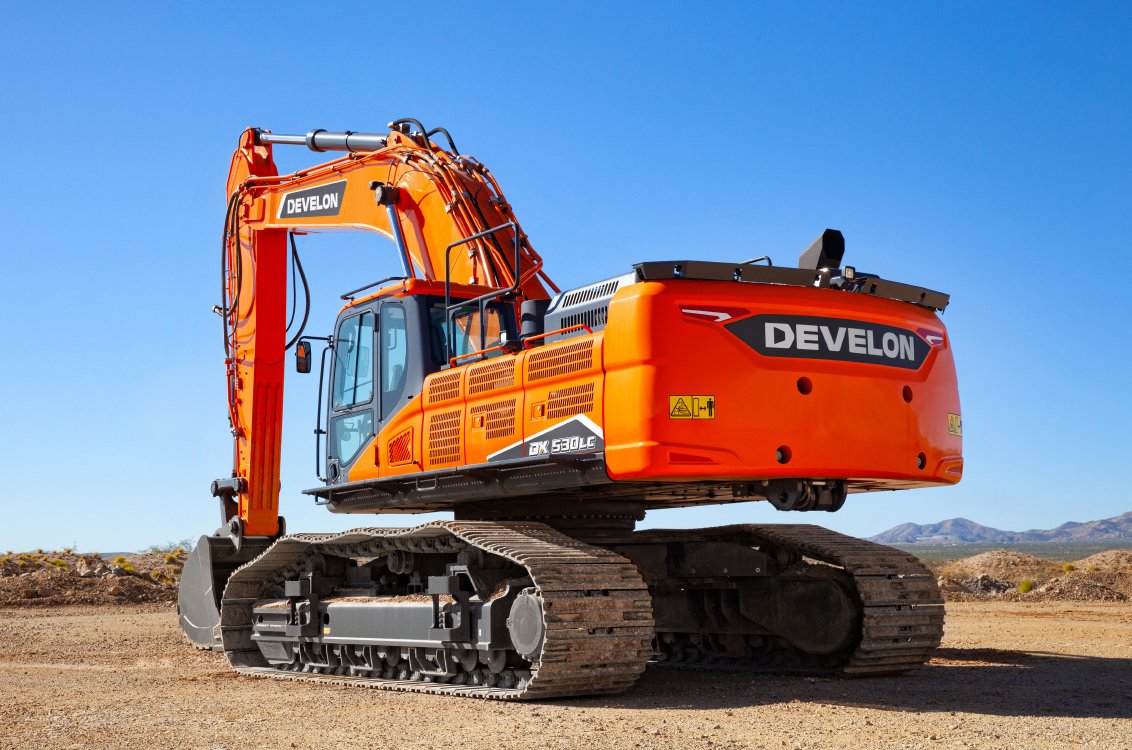

DEVELON DX530LC-7 Crawler Excavator

Take on the most grueling earthmoving and trenching projects with the DEVELON DX530LC-7. Powered by a massive 380 horsepower Scania engine and a 122,050-pound operating weight, this excavator provides the ultimate anchor for heavy-duty commercial excavation.

Accelerate your cycle times with a high-capacity tandem hydraulic system pushing 206 gallons per minute. Delivering an immense 67,902 pounds of bucket breakout force and a 307-inch maximum digging depth, this machine easily tears through dense rock to keep your crew strictly on schedule.

Request a Quote

Specifications

Operator Protection	ROPS (ISO 12117-2:2008) Enclosed Cab

Operating Weight	122050.0 lbs
Tail Swing Radius	149.6 in
Overall Width	143.0 in
Overall Height	145.9 in
Overall Length	485.4 in

Horsepower	379.5 hp
Engine Make & Model	Scania DC13
Emissions Tier	Tier 4 Final (T4F)
Fuel Tank Capacity	162.7 gal

Arm Length (standard)	131.9 in
Max Digging Depth	306.7 in
Max Reach at Ground Level	467.1 in
Max Dumping Height	309.6 in
Bucket Breakout Force	67901.7 lbf
Stick Digging Force	50044.4 lbs

Max Main Pump Flow	206.0 (2 x 103.0) gal/min
Track Shoe Width	35.4 in
Ground Pressure	9.1 psi
