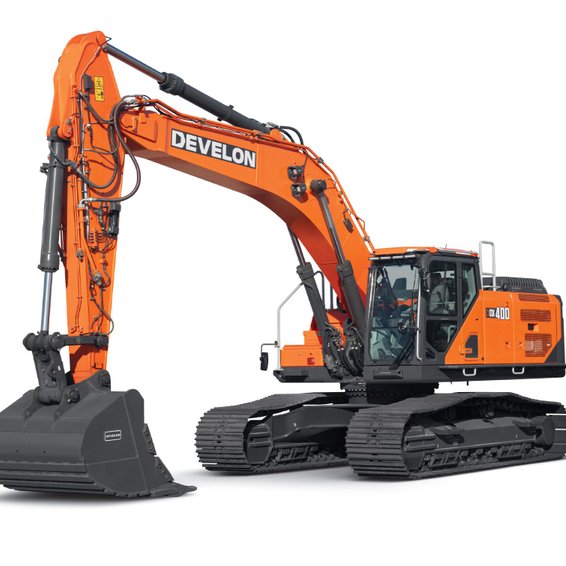

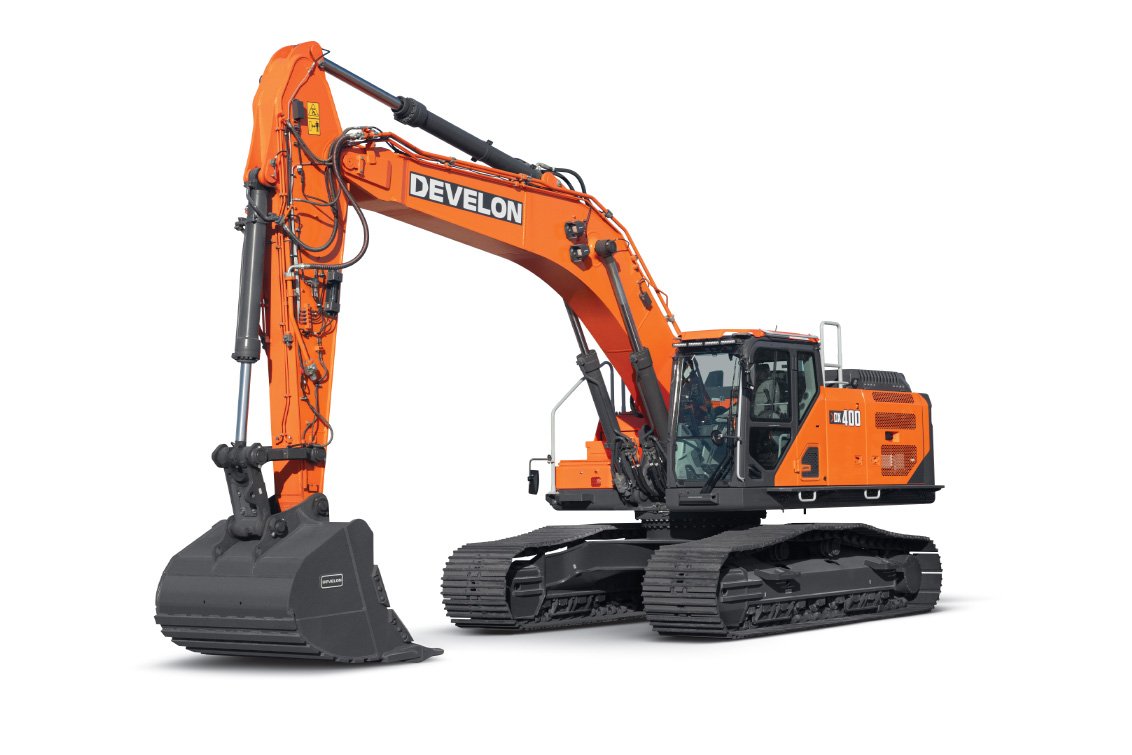

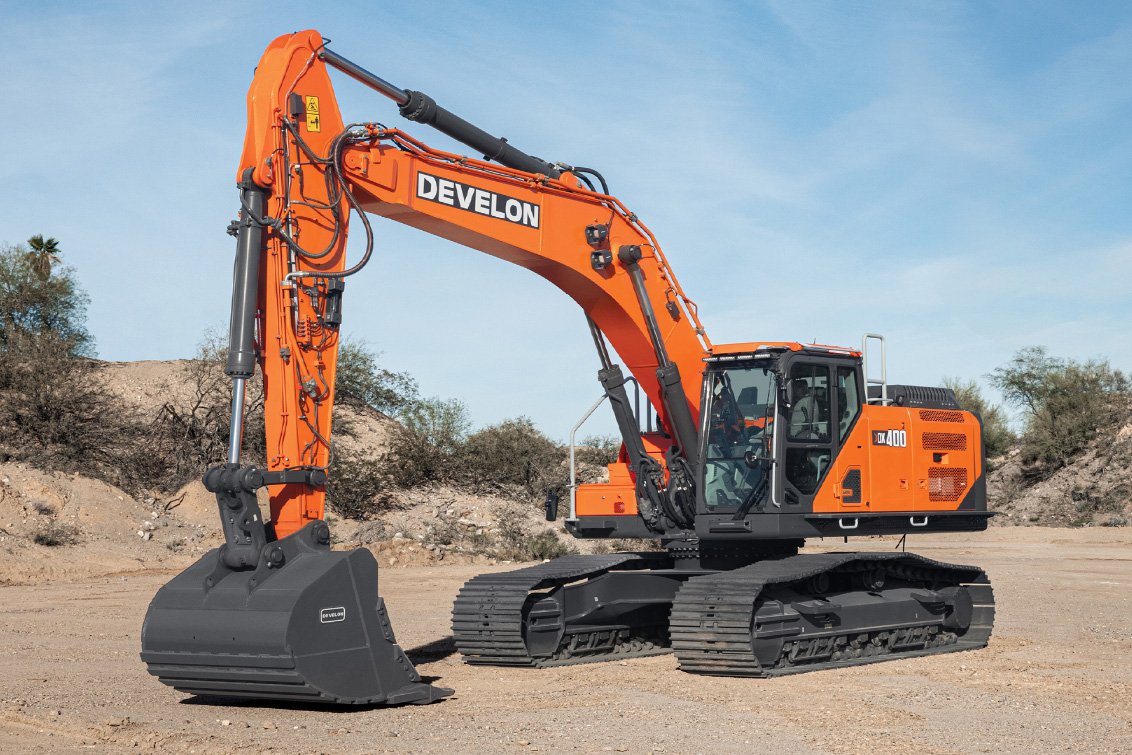

DEVELON DX400LC-9 Crawler Excavator
When maximum production is the only metric that matters, the DEVELON DX400LC-9 delivers uncompromising earthmoving muscle. Operating at a massive 95,703 pounds and producing 341 horsepower, this heavy-duty crawler excavator is purpose-built to conquer the most grueling mass excavation and quarry applications. With an expansive ground-level reach of 429 inches and a maximum digging depth of 291 inches, it allows your crew to extract enormous volumes of material from a single position, drastically cutting down on machine repositioning and accelerating overall project timelines.
To back up its imposing size, the DX400LC-9 utilizes a dual main pump system that floods the hydraulics with 190 gallons per minute of flow. This raw fluid power translates into a staggering 59,350 pounds of bucket breakout force, allowing operators to rip through dense, compacted rock and stubborn clay with total ease. Because high output requires operator endurance, the standard ROPS-certified enclosed cab surrounds your team with premium climate control, advanced vibration damping, and an ergonomic workspace, ensuring peak performance is maintained from dawn until dusk.
Specifications
| Operator Protection | ROPS (ISO 12117-2:2008) Enclosed Cab |
| Operating Weight | 95703.0 lbs |
| Tail Swing Radius | 138.9 in |
| Overall Width | 143.7 in |
| Overall Height | 136.1 in |
| Overall Length | 444.3 in |
| Horsepower | 340.6 hp |
| Engine Make & Model | DEVELON DX08 |
| Emissions Tier | Tier 4 Final (T4F) |
| Fuel Tank Capacity | 156.4 gal |
| Arm Length (standard) | 126.0 in |
| Max Digging Depth | 291.3 in |
| Max Reach at Ground Level | 429.1 in |
| Max Dumping Height | 287.8 in |
| Bucket Breakout Force | 59350.0 lbf |
| Stick Digging Force | 41140.0 lbs |
| Max Main Pump Flow | 190.2 gpm (2 x 95.1 gpm) gal/min |
| Track Shoe Width | 35.4 in |
| Ground Pressure | 7.5 psi |
