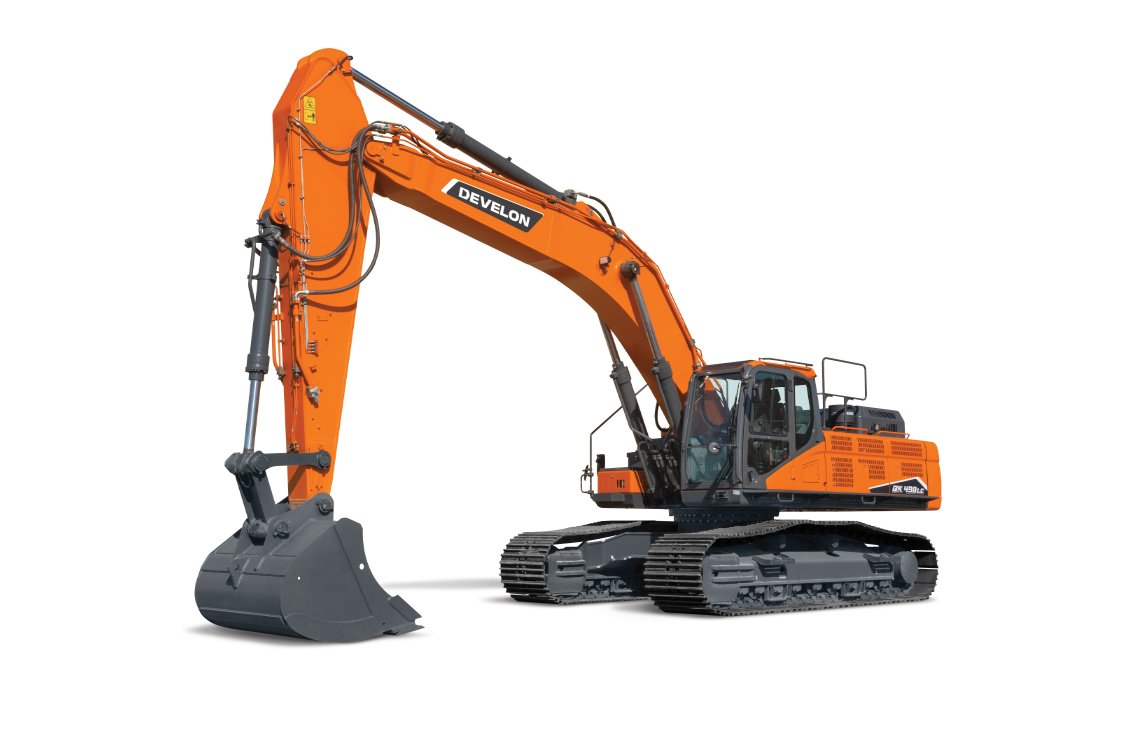

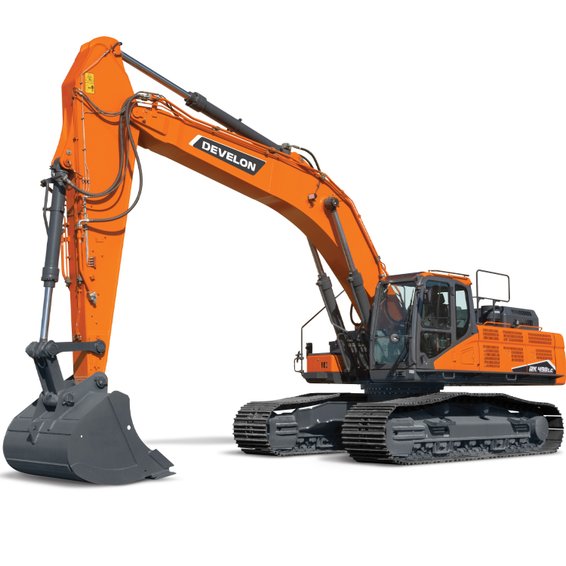

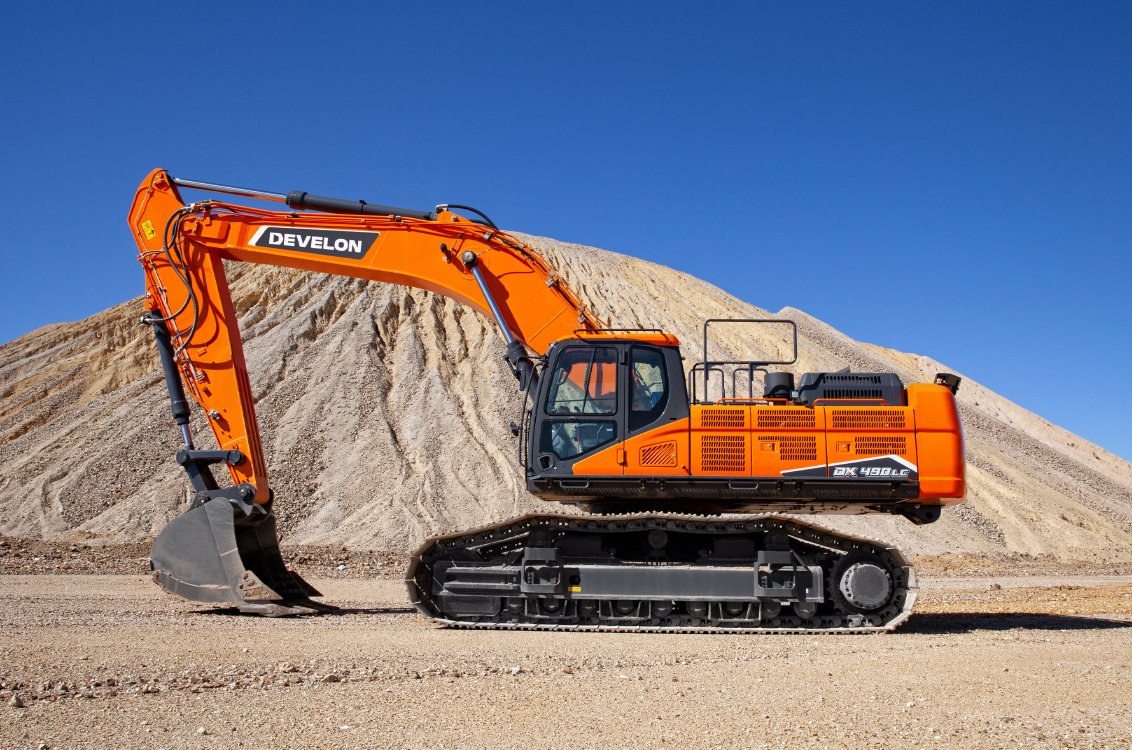

DEVELON DX490LC-7 Crawler Excavator

New Equipment

DEVELON DX490LC-7 Crawler Excavator

Dominate your largest commercial excavation and quarry projects with the heavy-duty DEVELON DX490LC-7. Powered by a massive 380 horsepower engine and a 121,678-pound operating weight, this machine provides the extreme stability required for the most demanding mass earthmoving operations.

Accelerate your cycle times using an advanced hydraulic system that delivers 206 gallons per minute of main pump flow. Generating 67,902 pounds of bucket breakout force and a 307-inch maximum digging depth, this excavator effortlessly clears dense, compacted material to keep your site highly productive.

Request a Quote

Specifications

Operator Protection	ROPS (ISO 12117-2:2008) Enclosed Cab

Operating Weight	121678.0 lbs
Tail Swing Radius	149.6 in
Overall Width	149.2 in
Overall Height	145.9 in
Overall Length	481.5 in

Horsepower	379.5 hp
Engine Make & Model	Scania DC13
Emissions Tier	Tier 4 Final (T4F)
Fuel Tank Capacity	162.7 gal

Arm Length (standard)	131.9 in
Max Digging Depth	306.7 in
Max Reach at Ground Level	467.1 in
Max Dumping Height	309.6 in
Bucket Breakout Force	67901.7 lbf
Stick Digging Force	50044.4 lbs

Max Main Pump Flow	206.0 (2 x 103.0) gal/min
Track Shoe Width	35.4 in
Ground Pressure	9.0 psi
