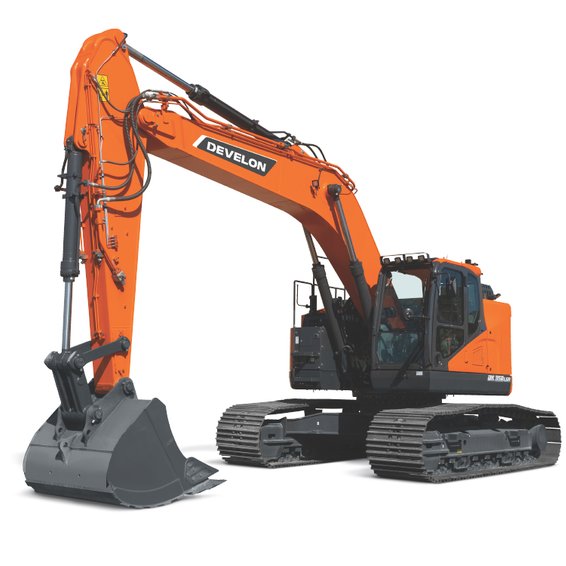

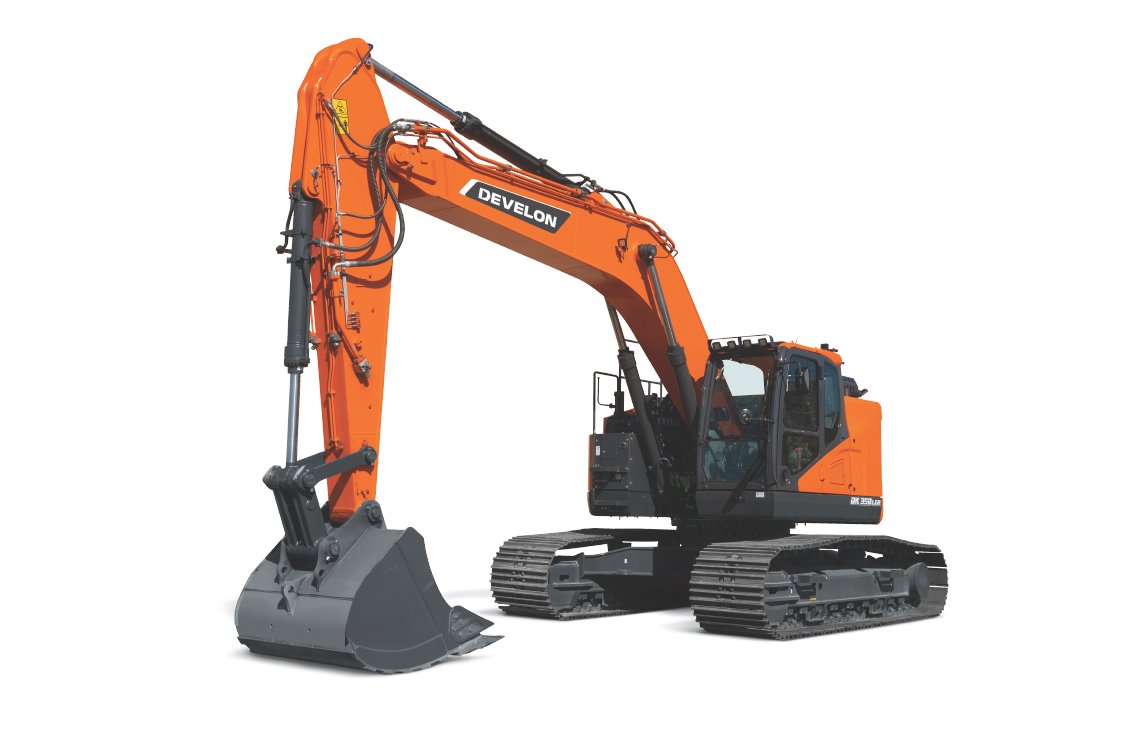

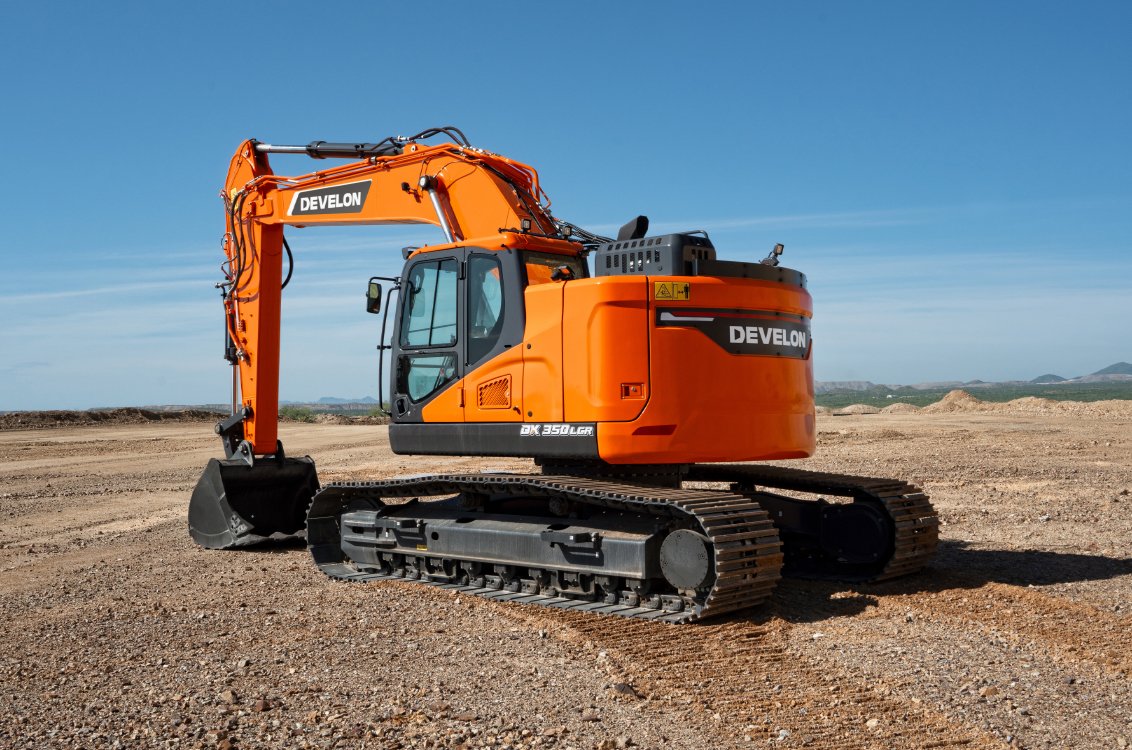

DEVELON DX350LCR-7 Crawler Excavator
Command tight jobsites without sacrificing heavy-duty performance using the DEVELON DX350LCR-7. Featuring an ultra-compact 75-inch tail swing radius, this 79,702-pound crawler excavator allows you to operate safely against structures and in confined spaces.
Despite its compact footprint, the machine leverages a 271-horsepower engine and 152 gallons per minute of hydraulic flow to deliver uncompromised digging power. Boasting 47,398 pounds of bucket breakout force and a 274-inch maximum dig depth, it easily tackles deep trenching tasks and heavy material extraction.
Current Promotions
Current promotions can save you money. We offer promotions that may include Low finance rates, cash back, bonus attachments and more. Check out our current promotional offers to see what may apply to your next equipment purchase.
DEVELON DX350LCR-7 Specifications
| Operator Protection | ROPS (ISO 12117-2:2008) Enclosed Cab |
| Operating Weight | 79702.0 lbs |
| Tail Swing Radius | 74.8 in |
| Overall Width | 141.7 in |
| Overall Height | 139.7 in |
| Overall Length | 392.7 in |
| Horsepower | 271.0 hp |
| Engine Make & Model | DEVELON DL08-LEE04 |
| Emissions Tier | Tier 4 Final (T4F) |
| Fuel Tank Capacity | 129.4 gal |
| Arm Length (standard) | 122.0 in |
| Max Digging Depth | 274.4 in |
| Max Reach at Ground Level | 418.1 in |
| Max Dumping Height | 317.5 in |
| Bucket Breakout Force | 47398.0 lbf |
| Stick Digging Force | 35053.0 lbs |
| Max Main Pump Flow | 152.2 (2 x 76.1) gal/min |
| Track Shoe Width | 33.5 in |
| Ground Pressure | 7.0 psi |
Specifications and images may vary in accuracy.
