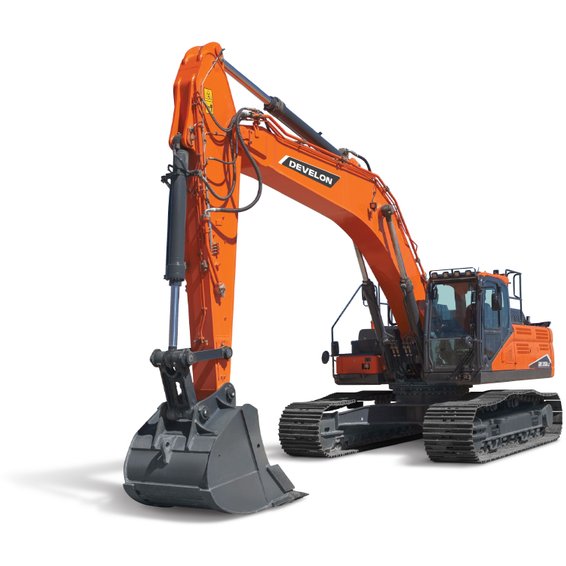

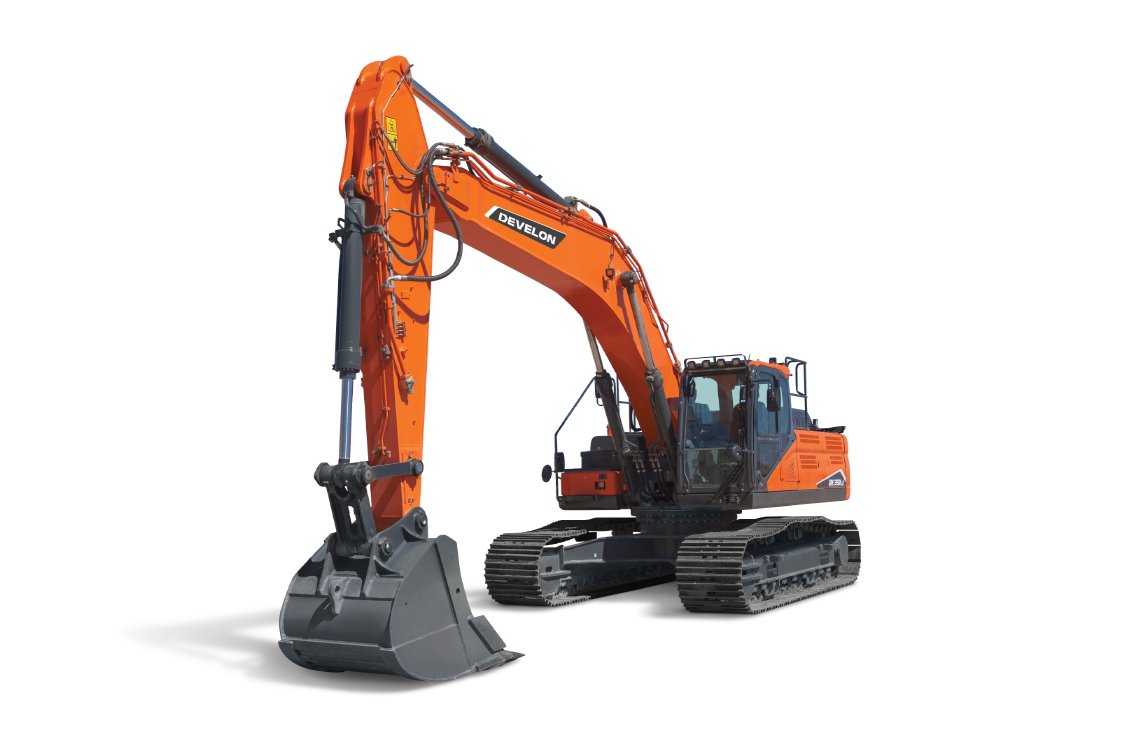

DEVELON DX350LC-7 Crawler Excavator

New Equipment

DEVELON DX350LC-7 Crawler Excavator

Tackle heavy-duty mass excavation without slowing down. The DEVELON DX350LC-7 features a 286 horsepower engine and an 83,478-pound operating weight, providing the extreme stability required for large-scale earthmoving and commercial site development.

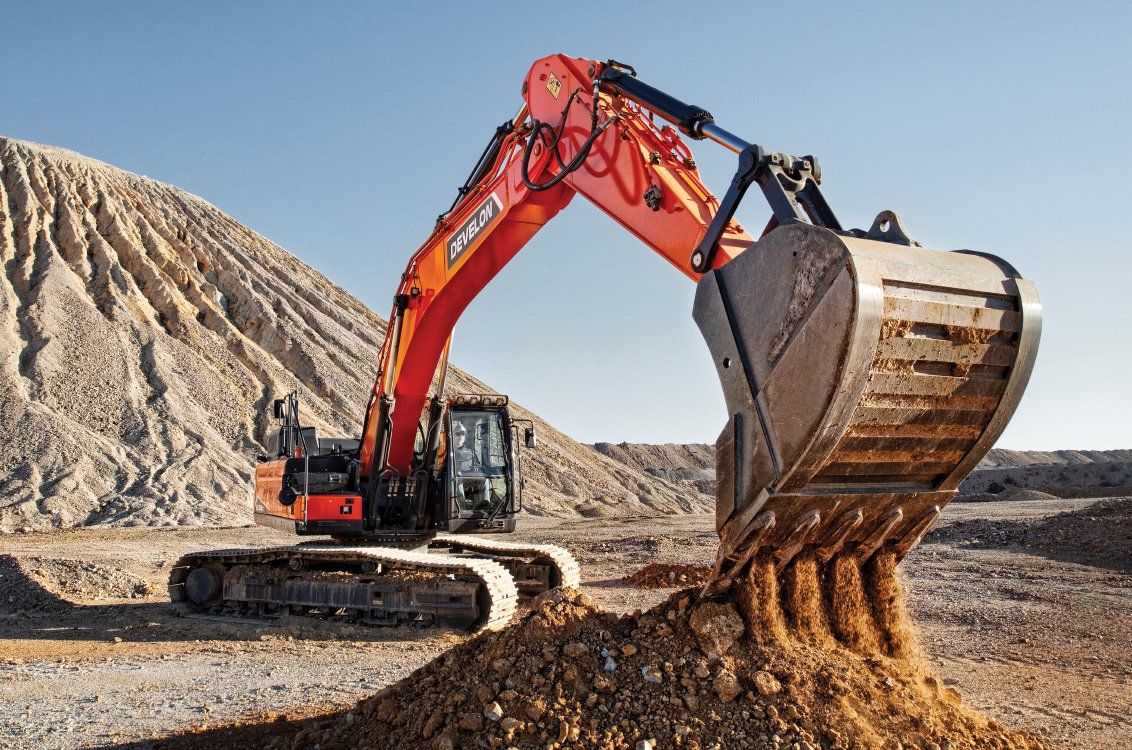

Accelerate your cycle times with a massive 185 gallon-per-minute main pump flow. Delivering an immense 57,099 pounds of bucket breakout force and a 297-inch maximum digging depth, this machine effortlessly tears through compacted rock and deep trenching tasks to keep your crew ahead of schedule

Request a Quote

Specifications

Operator Protection	ROPS (ISO 12117-2:2008) Enclosed Cab

Operating Weight	83478.0 lbs
Tail Swing Radius	139.0 in
Overall Width	137.0 in
Overall Height	134.6 in
Overall Length	445.5 in

Horsepower	285.6 hp
Engine Make & Model	DEVELON DL08-LEE04
Emissions Tier	Tier 4 Final (T4F)
Fuel Tank Capacity	155.9 gal

Arm Length (standard)	126.0 in
Max Digging Depth	296.7 in
Max Reach at Ground Level	431.9 in
Max Dumping Height	284.4 in
Bucket Breakout Force	57099.0 lbf
Stick Digging Force	41667.0 lbs

Max Main Pump Flow	185 (2 x 92.5) gal/min
Track Shoe Width	31.5 in
Ground Pressure	7.7 psi
