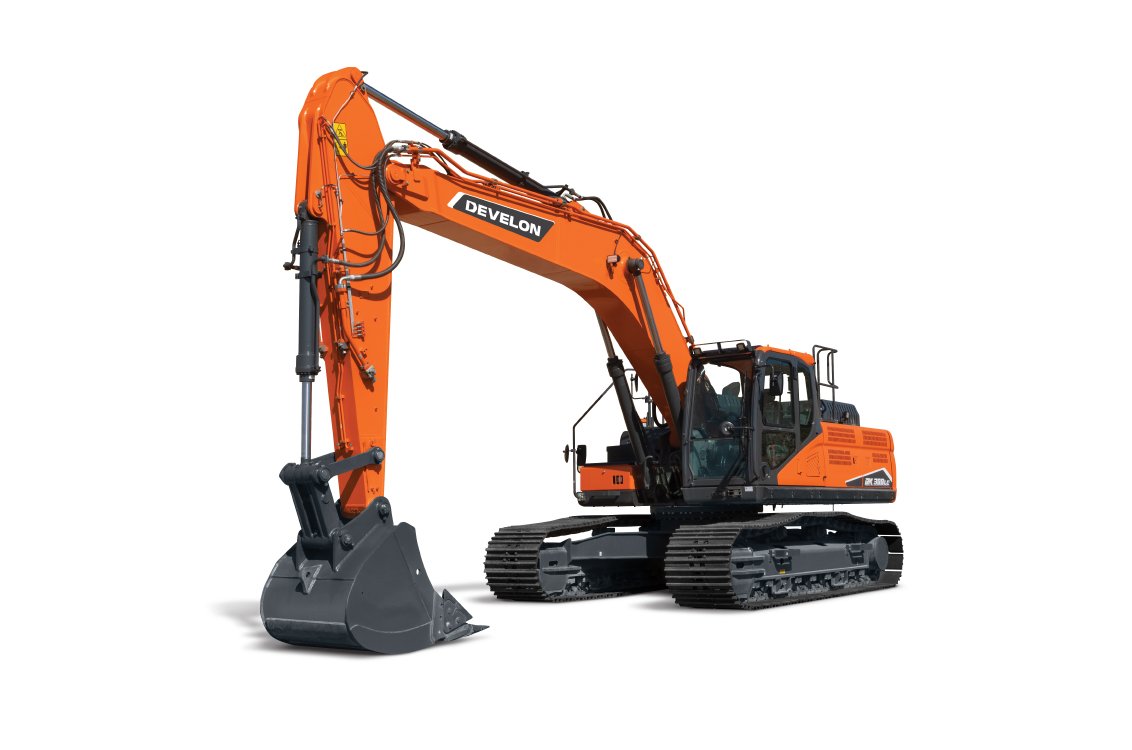

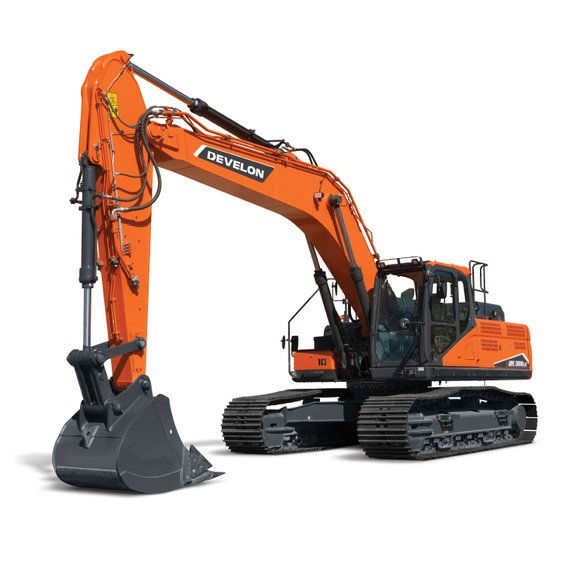

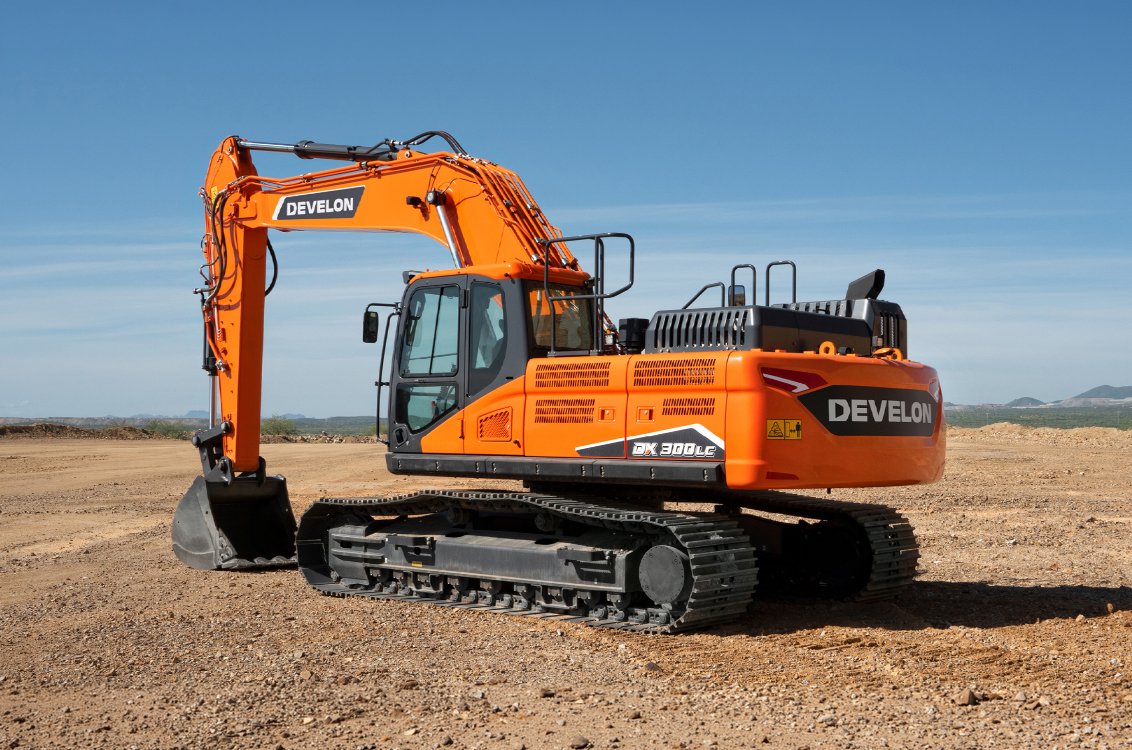

DEVELON DX300LC-7 Crawler Excavator
Maximize your earthmoving production and commercial site prep without sacrificing efficiency. The DEVELON DX300LC-7 features a robust 270 horsepower engine and a highly stable 73,413-pound operating weight, providing the raw muscle needed for heavy excavation and large-scale development.
Despite its massive size, this machine maintains rapid, fluid cycle times with a high-capacity 152 gallon-per-minute main pump flow. Generating a relentless 44,092 pounds of bucket breakout force and a 288-inch maximum digging depth, it easily tears through compacted rock and deep trenching tasks to keep your jobsite strictly on schedule.
Specifications
| Operator Protection | ROPS (ISO 12117-2:2008) Enclosed Cab |
| Operating Weight | 73413.0 lbs |
| Tail Swing Radius | 127.2 in |
| Overall Width | 133.8 in |
| Overall Height | 132.7 in |
| Overall Length | 417.5 in |
| Horsepower | 270.1 hp |
| Engine Make & Model | DEVELON DL06-LEE04 |
| Emissions Tier | Tier 4 Final (T4F) |
| Fuel Tank Capacity | 129.4 gal |
| Arm Length (standard) | 122.0 in |
| Max Digging Depth | 287.6 in |
| Max Reach at Ground Level | 414.6 in |
| Max Dumping Height | 286.6 in |
| Bucket Breakout Force | 44092.0 lbf |
| Stick Digging Force | 30643.0 lbs |
| Max Main Pump Flow | 152.2 gpm (2 x 76.1 gpm) gal/min |
| Track Shoe Width | 31.5 in |
| Ground Pressure | 6.8 psi |
