New Equipment

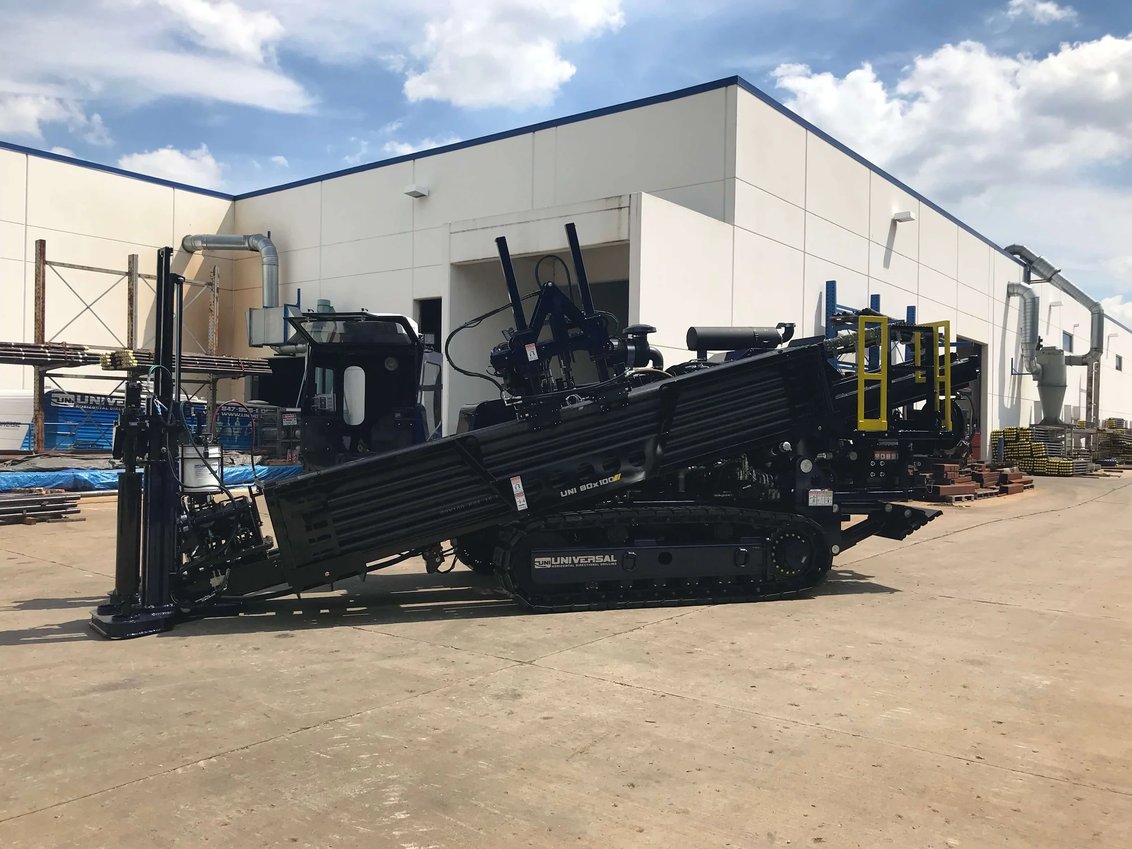

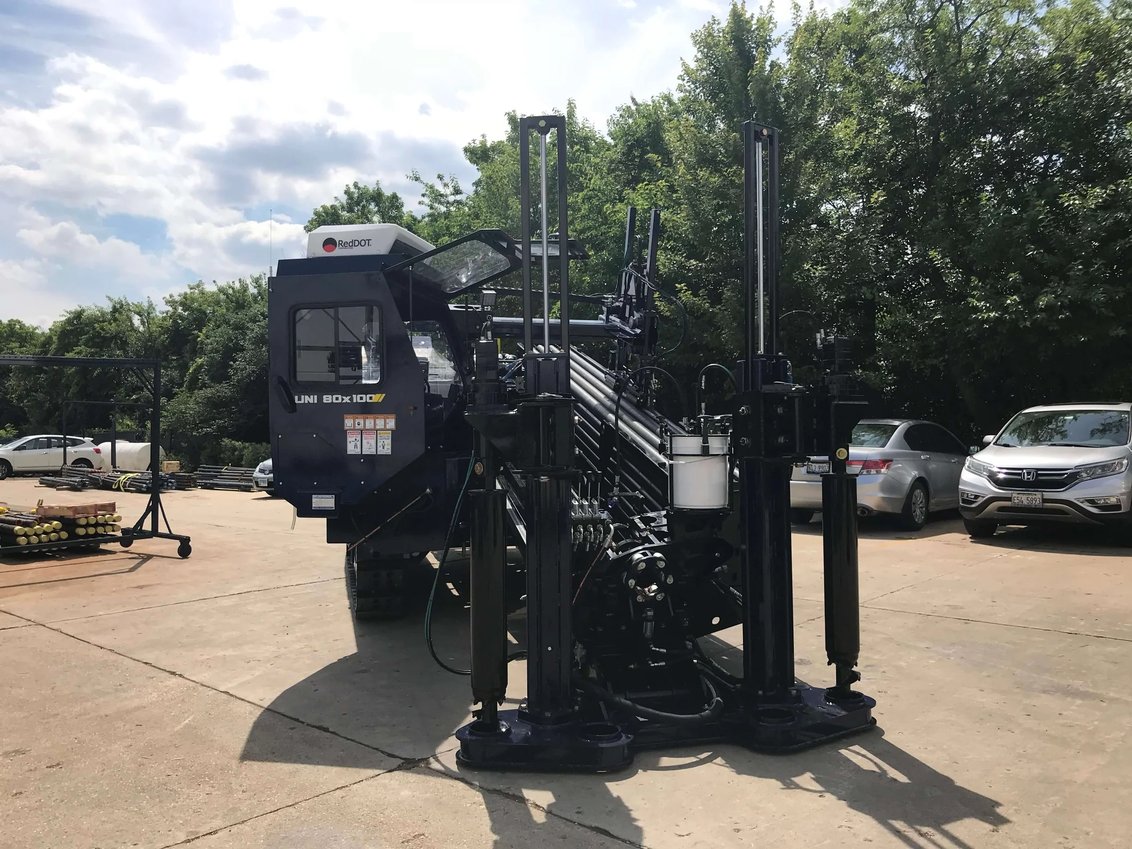

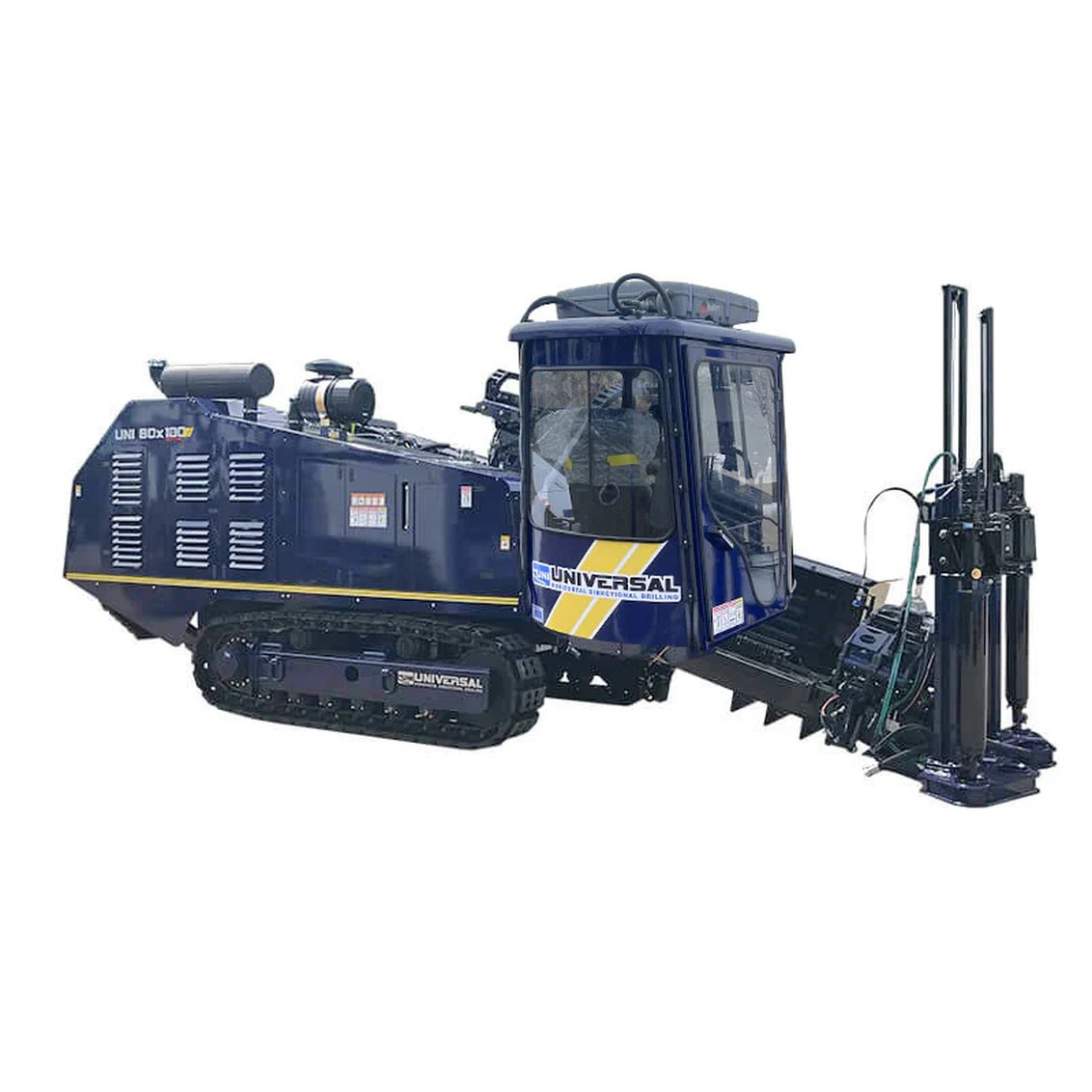

Universal HDD UNI 80x120 Directional Drill
The UNI 80x120 Directional Drill by Universal HDD is a robust mid-range horizontal directional drilling (HDD) rig, engineered to deliver exceptional performance in demanding underground utility installations. With its powerful thrust and pullback capabilities, high torque output, and advanced operator features, the UNI 80x120 is designed to tackle challenging drilling projects with efficiency and precision.
Specifications
| Drill Pipe Length | 15.0 ft |
| Engine Manufacturer | John Deere |
| Engine Type | Turbo Diesel |
| Gross Horsepower | 200.0 hp |
| Rated RPM | 2400.0 rpm |
| Horsepower | 200.0 hp |
| Emissions Tier | Tier IV |
| Fuel Tank Capacity | 43.0 gal |
| Hydraulic Tank Capacity | 109.0 gal |
| Maximum Thrust | 80000.0 lbs |
| Maximum Pullback | 80000.0 lbs |
| Maximum Spindle Speed | 160.0 rpm |
Current Promotions
Current promotions can save you money. We offer promotions that may include Low finance rates, cash back, bonus attachments and more. Check out our current promotional offers to see what may apply to your next equipment purchase.
Specifications and images may vary in accuracy.
Data Powered By EquipmentWatch
