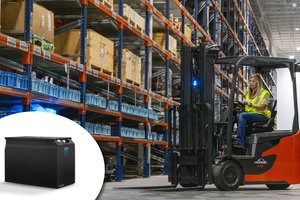

Linde E20 Cushion Electric Rider Forklift
Master your most demanding indoor material handling tasks with the Linde E20, a premium 4,000-pound capacity electric cushion tire forklift built precisely to your specifications. Select a traditional 3-wheel setup for maximum agility on smooth warehouse floors, or opt for a 4-wheel configuration equipped with the Linde Combi-axle, giving operators the grounded stability of four wheels without sacrificing maneuverability in tight aisles. Driven by a 100% AC traction and lift motor system, this machine delivers powerful acceleration and gradeability while keeping routine maintenance costs remarkably low thanks to its 1,000-hour service intervals and enclosed wet-disc brakes. One can utilize traditional 36V or 48V lead-acid power, or equip the E20 with cutting-edge Linde Li-ION technology for fast opportunity charging and continuous multi-shift performance.
The E20 shines in dense warehousing environments, utilizing the Combi-axle for a tight 70.4-inch turning radius. Safety and precision are seamlessly integrated into the cab design, featuring a 4.3-inch full-color interactive display, automatic parking brake with ramp hold, and a high-visibility orange seat belt. For maximum ergonomic comfort, operators utilize fingertip-controlled hydraulic levers integrated right into the armrest, allowing for fatigue-free operation hour after hour.
Specifications
| Lift Capacity | 4000.0 lbs |
| Up to Max Lift Height | 166.2 in |
| Free Lift | 53.9 in |
| Load Centre | 24.0 in |
| Mast Type | Standard (Triplex and Quad Optional) |
| Steering Type | Power Steering (Linde Combi-axle) |
| Operator Protection | Standard Overhead Guard |
| Operating Weight | 8535.0 lbs |
| Overall Width | 42.0 in |
| Overall Length (to Fork Face) | 85.5 in |
| Overhead Guard Height | 80.5 in |
| Turning Radius | 70.4 in |
| Max Travel Speed | 12.8 mph |
| Max Gradeability | 22.0 % |
| Brake Type | Maintenance-Free Oil-Submerged Wet-Disc |
| Max Lift Speed | 110 fpm |
| Front Tire Size | 18 x 7 x 12.125 in |
| Rear Tire Size | 16 x 6 x 10.5 in |
| Tire Type | Cushion |
| Power Mode | Battery (Lead-Acid) |
| Voltage | 36 V / 48 V |
