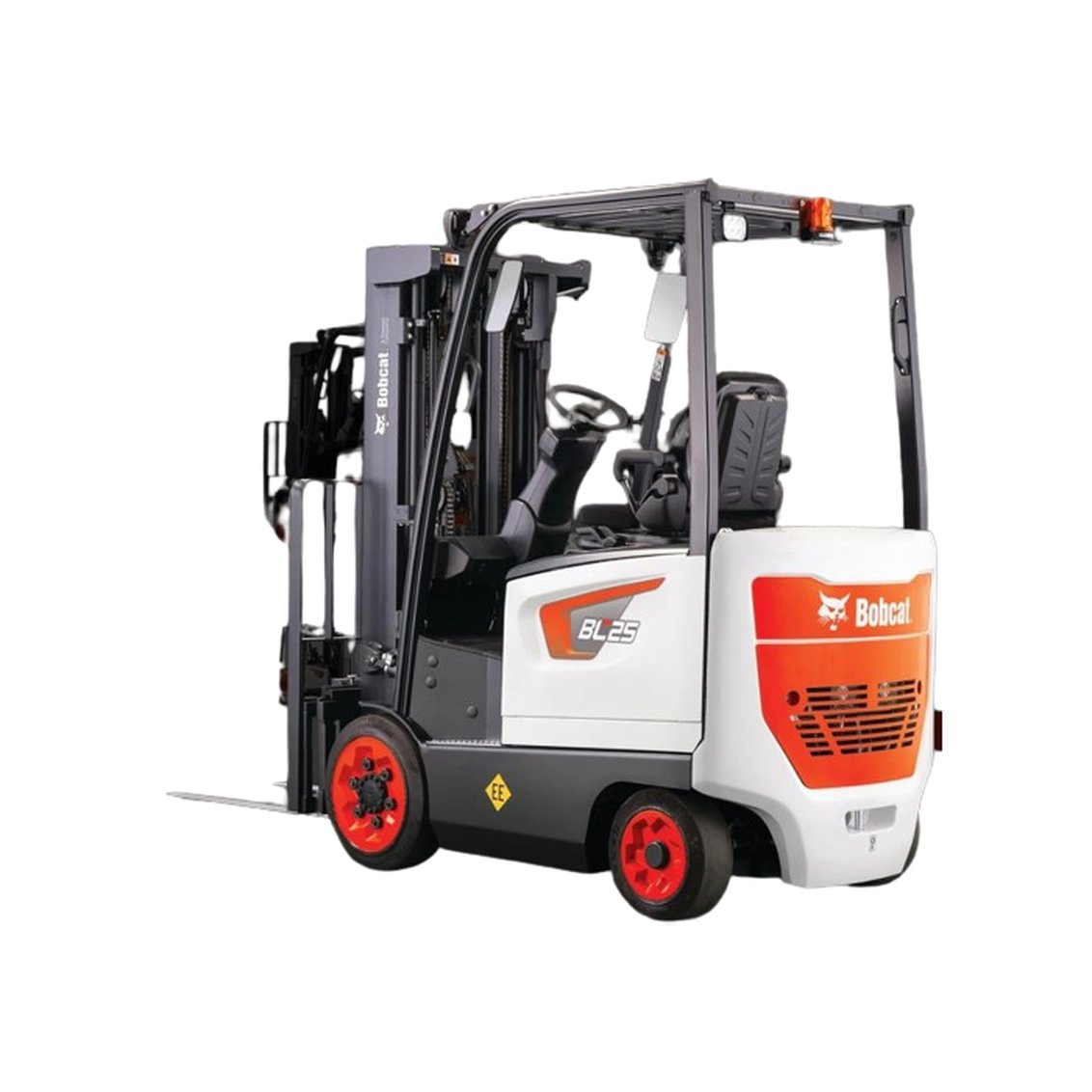

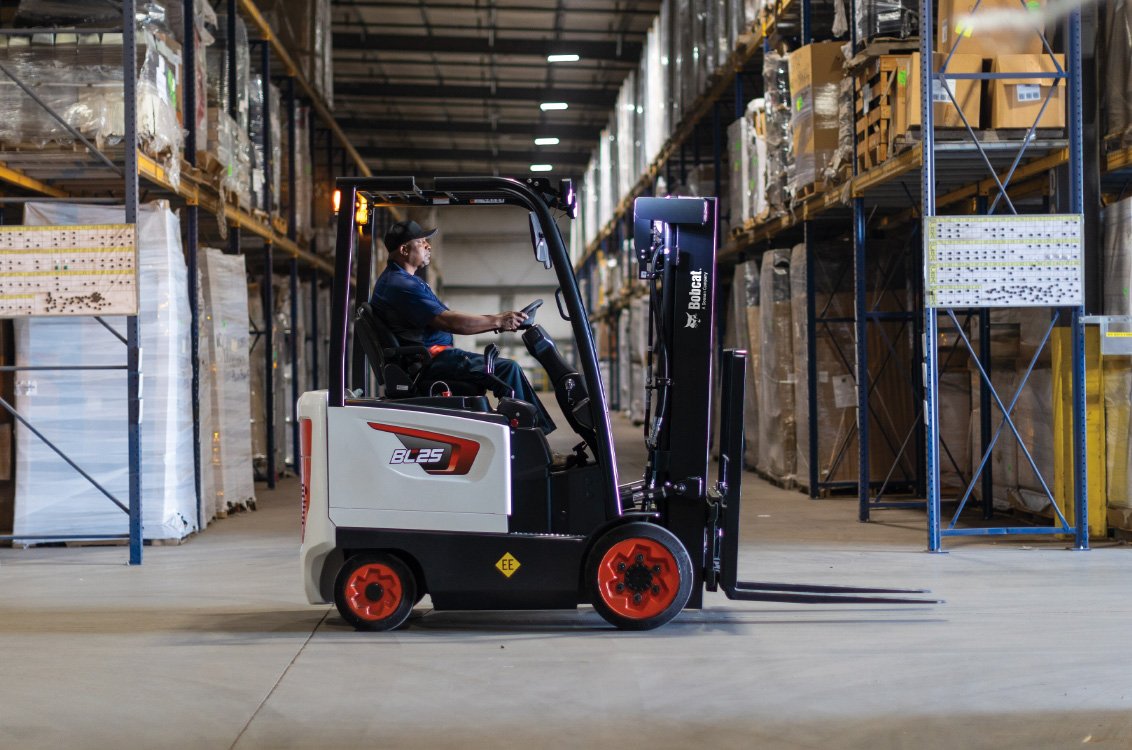

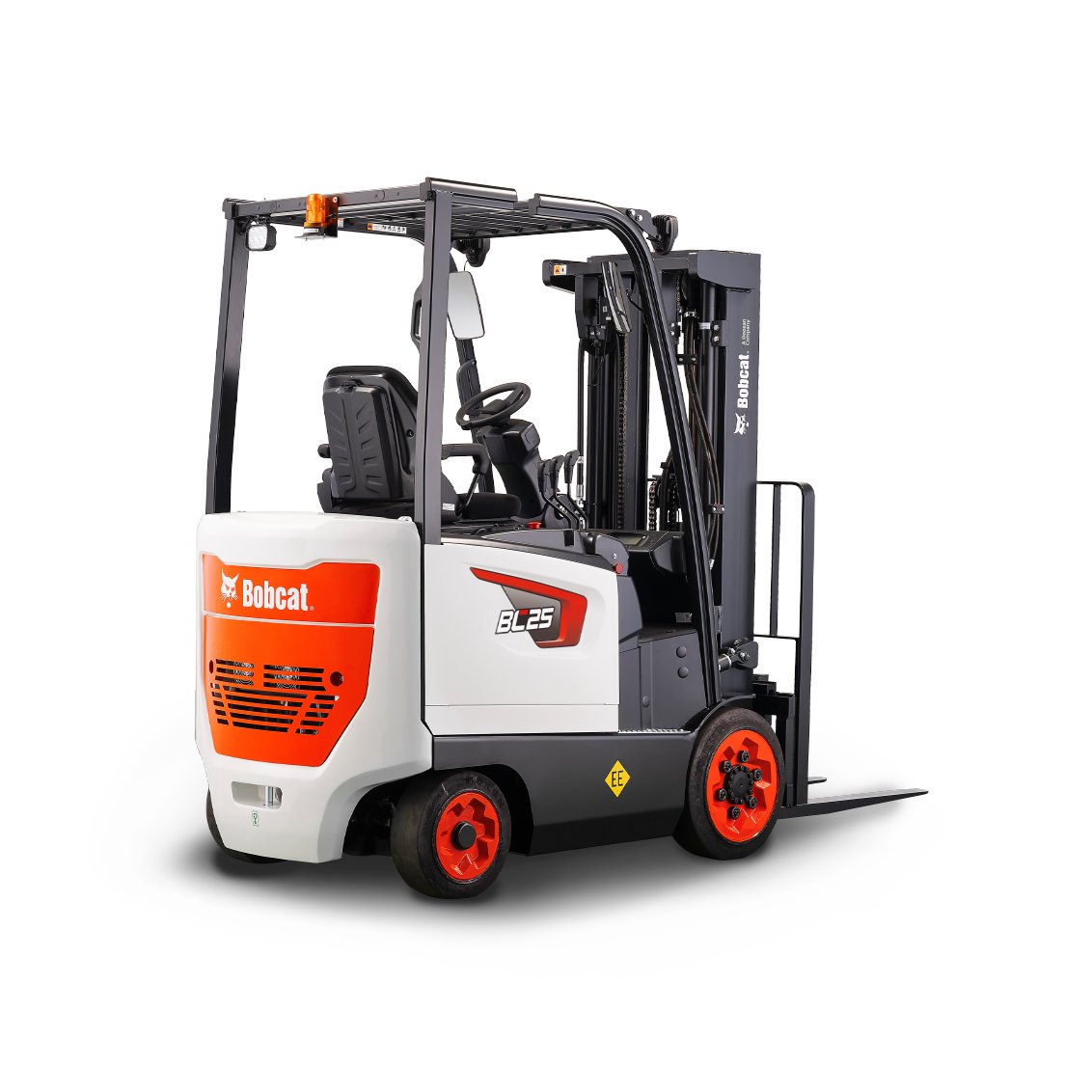

Bobcat BC20S-7 Electric Cushion Forklift
Streamline indoor material handling with the Bobcat BC20S-7, a highly responsive 4-wheel electric cushion tire forklift delivering a 4,000-pound lift capacity. Engineered for high-throughput environments like manufacturing plants, food processing facilities, and distribution centres, this model is available in either 36V or 48V configurations, allowing you to choose the exact AC powertrain to match your facility's existing charging infrastructure and performance needs.
The BC20S-7 excels in tight quarters thanks to an advanced steering axle that achieves tight turning angles, complemented by a rounded counterweight design for seamless right-angle stacking in narrow aisles. Built to prioritize operator protection and machine uptime, it features the Guardian Stability System (GSS), Cornering Speed Control, an Electromagnetic Auto Parking Brake, and IP65-rated sealed controllers to shut out dust and moisture. Operators enjoy an ergonomic workspace complete with a full-suspension comfort seat, adjustable steering column, and intuitive instrument panel.
Specifications
| Lift Capacity | 4000.0 lbs |
| Up to Max Lift Height | 127.0 in |
| Free Lift | 6.0 in |
| Load Centre | 24.0 in |
| Mast Type | Standard Two-Stage (FF and FFT Optional) |
| Steering Type | Power Steering |
| Operator Protection | Standard Overhead Guard |
| Operating Weight | 9193.0 lbs |
| Overall Width | 43.7 in |
| Overall Length (to Fork Face) | 82.9 in |
| Overhead Guard Height | 87.0 in |
| Turning Radius | 73.2 in |
| Max Travel Speed | 11.2 mph |
| Max Gradeability | 24.0 % |
| Brake Type | Hydraulic Service Brake / Electromagnetic Auto Parking Brake |
| Max Lift Speed | 126 fpm |
| Front Tire Size | 21 x 7 x 15 in |
| Rear Tire Size | 16 x 6 x 10.5 in |
| Tire Type | Cushion |
| Power Mode | Battery (Lead-Acid) |
| Voltage | 36 V / 48 V |
