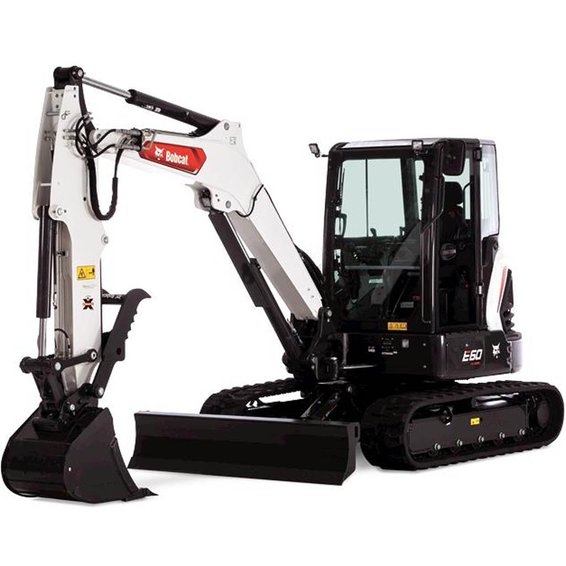

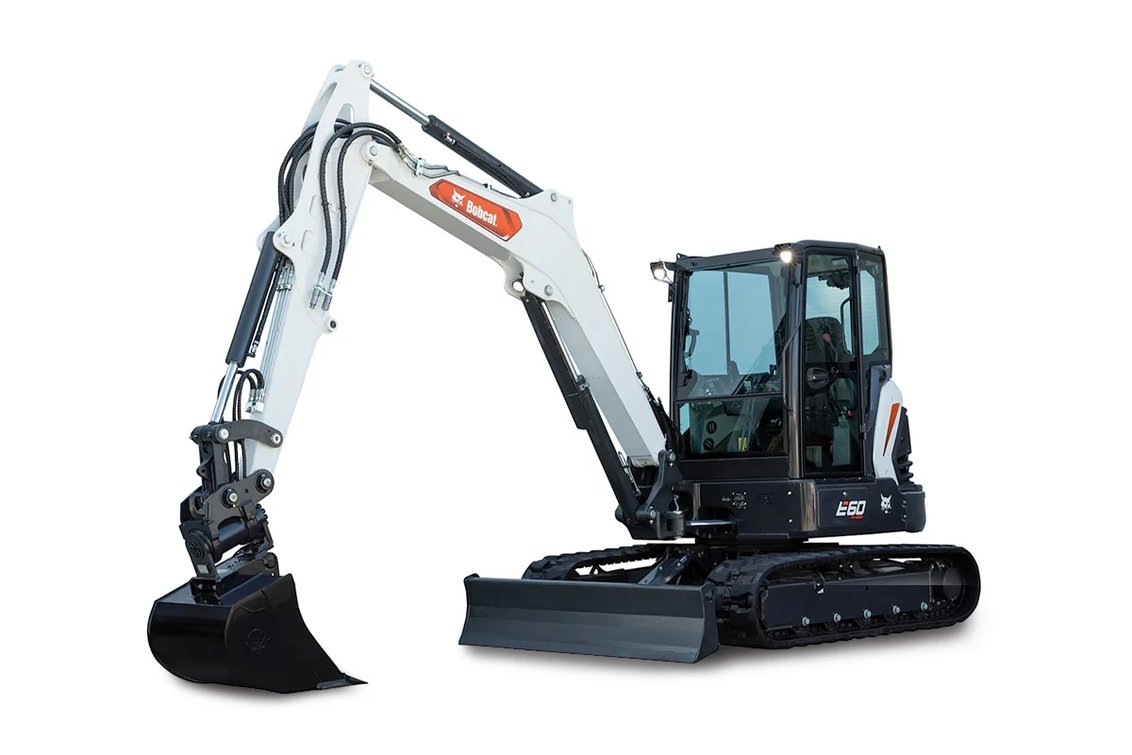

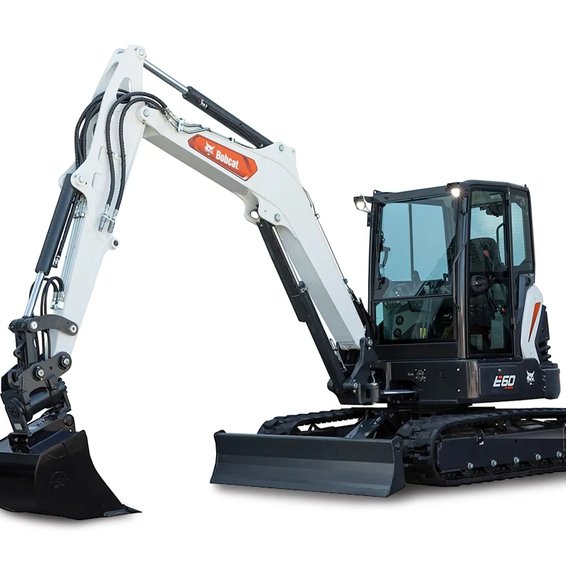

Bobcat E60 Mini Excavator
The Bobcat E60 compact excavator is a 6-ton commercial workhorse built to deliver maximum lifting performance and earthmoving power. Engineered with a Conventional Tail Swing design, this machine utilizes its rear overhang as a massive counterweight to provide unmatched over-the-side lifting capacity and leverage. Powered by a highly efficient 55 HP engine and delivering an impressive 13-foot digging depth, the E60 is the ultimate heavy-duty solution for demanding utility installations, deep trenching, and commercial site prep.
Specifications
| Operator Protection | TOPS / ROPS / FOPS |
| Tail Swing Type | Conventional Tail Swing |
| Operating Weight | 12315.0 lb |
| Overall Width | 77.2 in |
| Overall Height | 100.2 in |
| Overall Length | 215.3 in |
| Horsepower | 55.0 hp |
| Engine Manufacturer | Bobcat |
| Emissions Tier | Tier 4 / Non-DPF |
| Fuel Tank Capacity | 19.0 gal |
| Maximum Digging Depth | 156.0 in |
| Maximum Reach at Ground Level | 245.5 in |
| Maximum Dumping Height | 166.8 in |
| Bucket Breakout Force | 9754.0 lbf |
| Stick Digging Force - Standard | 6243.0 lbf |
| Blade Size (H x W) | 15.6 x 77.2 in |
| Arm Configuration | Standard |
| Auxiliary Circuit Flow | 20.0 gal/min |
| Track Shoe Type | Rubber |
| Ground Pressure | 4.7 psi |
Current Promotions
Current promotions can save you money. We offer promotions that may include Low finance rates, cash back, bonus attachments and more. Check out our current promotional offers to see what may apply to your next equipment purchase.
Dig Deep, Save Bigger. Own a legendary Bobcat Mini Excavator today and pay 0% interest for up to 48 months OR secure up to $15,700 in rebates in lieu of financing.
Specifications and images may vary in accuracy.
