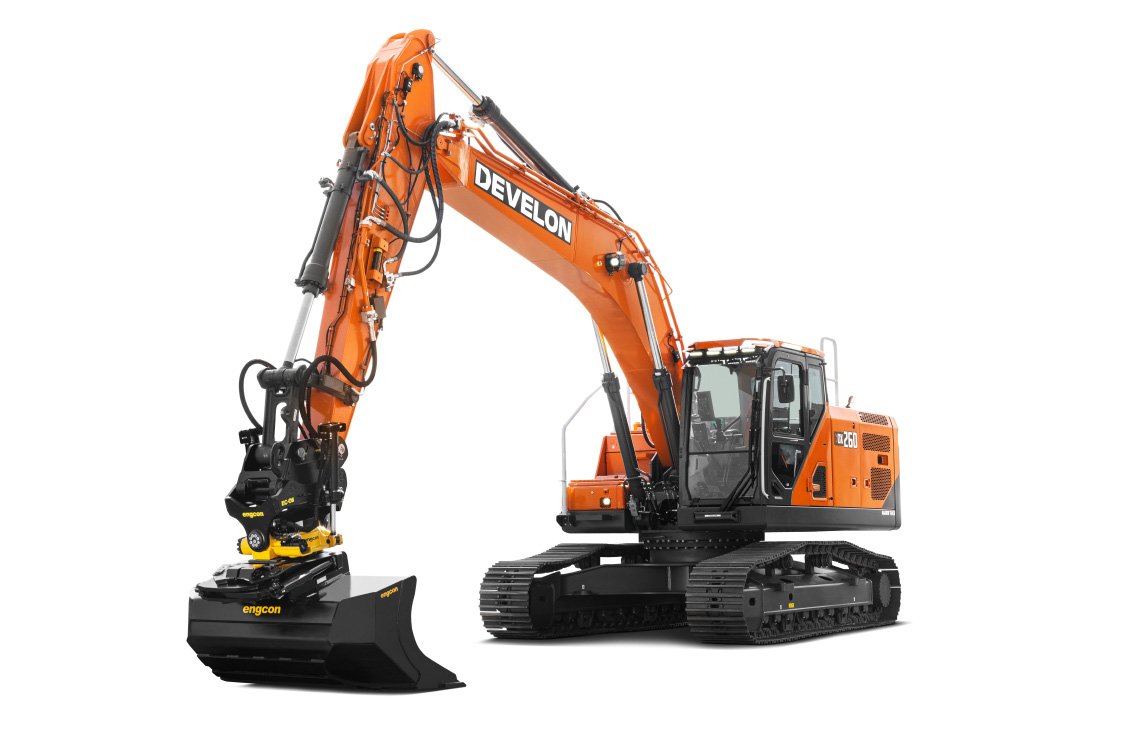

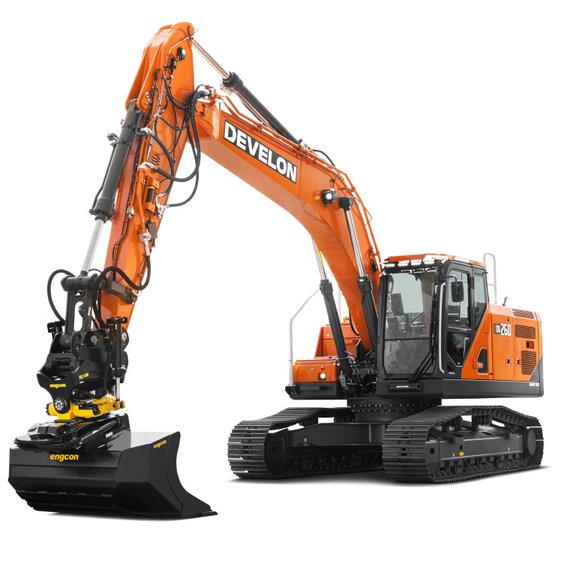

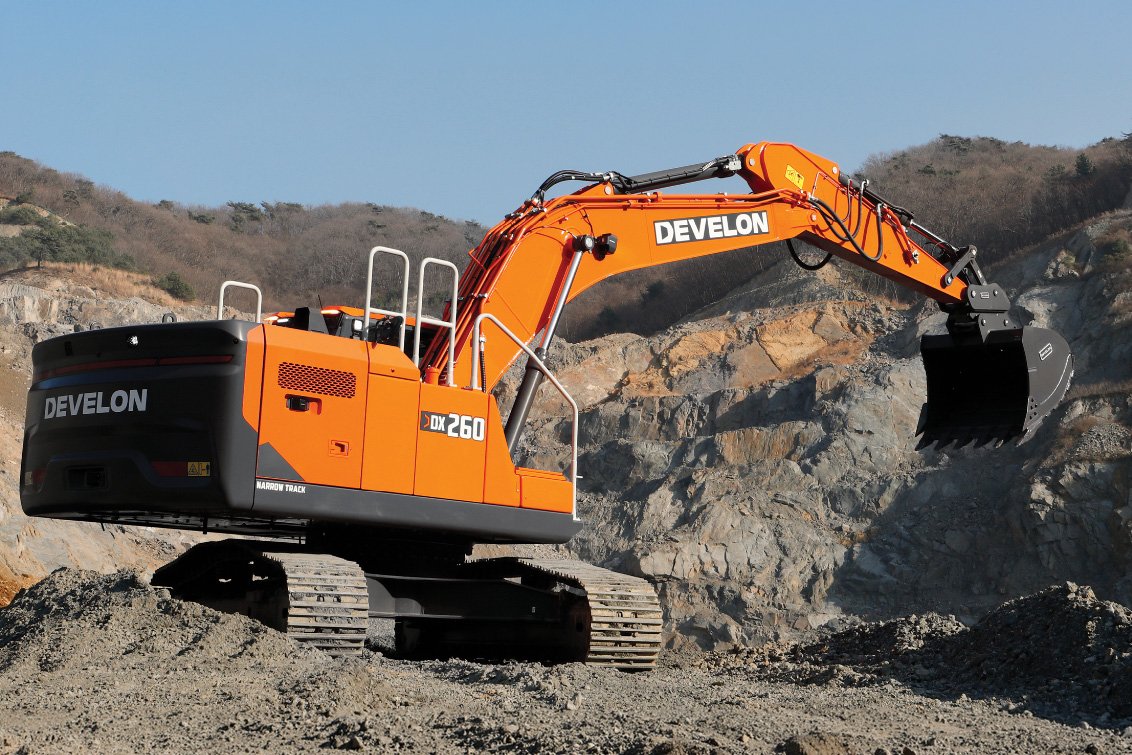

DEVELON DX260LC-9 Crawler Excavator
Command your largest commercial excavation and pipeline projects with the DEVELON DX260LC-9. Tipping the scales at a formidable 60,407 pounds, this heavy-duty crawler excavator provides the ultimate anchor for extreme earthmoving. It harnesses 229 horsepower to slice through dense, rocky terrain, empowering operators to reach a maximum digging depth of 268 inches. With an expansive ground-level reach of 393 inches, crews can clear massive areas without constantly repositioning the tracks, drastically accelerating jobsite timelines.
To maintain rapid cycle times under heavy loads, the DX260LC-9 features a dual main pump system that pushes 125 gallons per minute of hydraulic flow. This sheer fluid volume translates to a devastating 43,652 pounds of bucket breakout force, allowing the machine to pry out compacted materials with absolute ease. During those long, gruelling shifts, operators remain highly productive inside the standard ROPS-certified cab. Completely enclosed and climate-controlled, it utilizes advanced vibration damping and ergonomic joystick setups to minimize fatigue and keep your heavy operations moving smoothly.
Specifications
| Operator Protection | ROPS (ISO 12117-2:2008) Enclosed Cab |
| Operating Weight | 60407.0 lbs |
| Tail Swing Radius | 120.0 in |
| Overall Width | 133.9 in |
| Overall Height | 127.4 in |
| Overall Length | 397.0 in |
| Horsepower | 229.4 hp |
| Engine Make & Model | DEVELON DX05V |
| Emissions Tier | Tier 4 Final (T4F) |
| Fuel Tank Capacity | 121.0 gal |
| Arm Length (standard) | 118.1 in |
| Max Digging Depth | 268.1 in |
| Max Reach at Ground Level | 393.3 in |
| Max Dumping Height | 276.6 in |
| Bucket Breakout Force | 43652.0 lbf |
| Stick Digging Force | 31306.0 lbs |
| Max Main Pump Flow | 125.4 gpm (2 x 62.7 gpm) gal/min |
| Track Shoe Width | 31.5 in |
| Ground Pressure | 6.0 psi |
