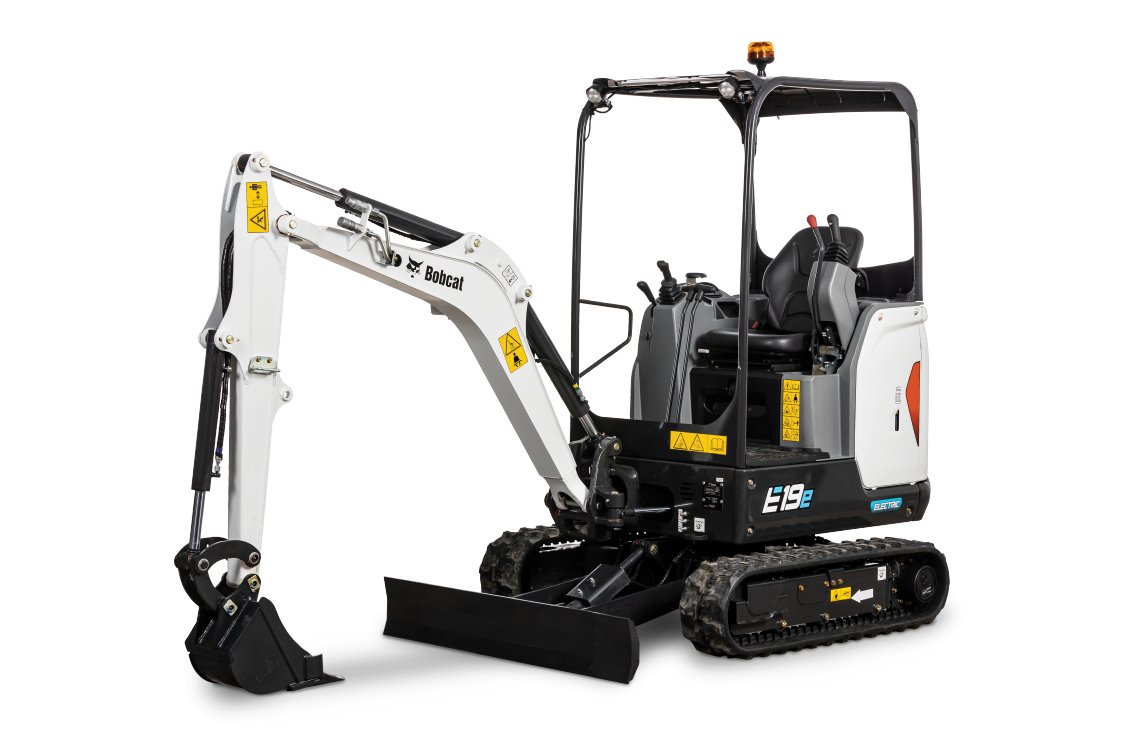

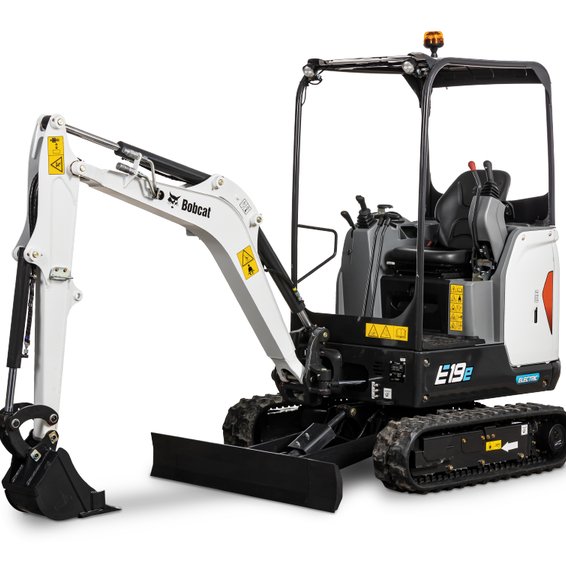

Bobcat E19e Electric Mini Excavator

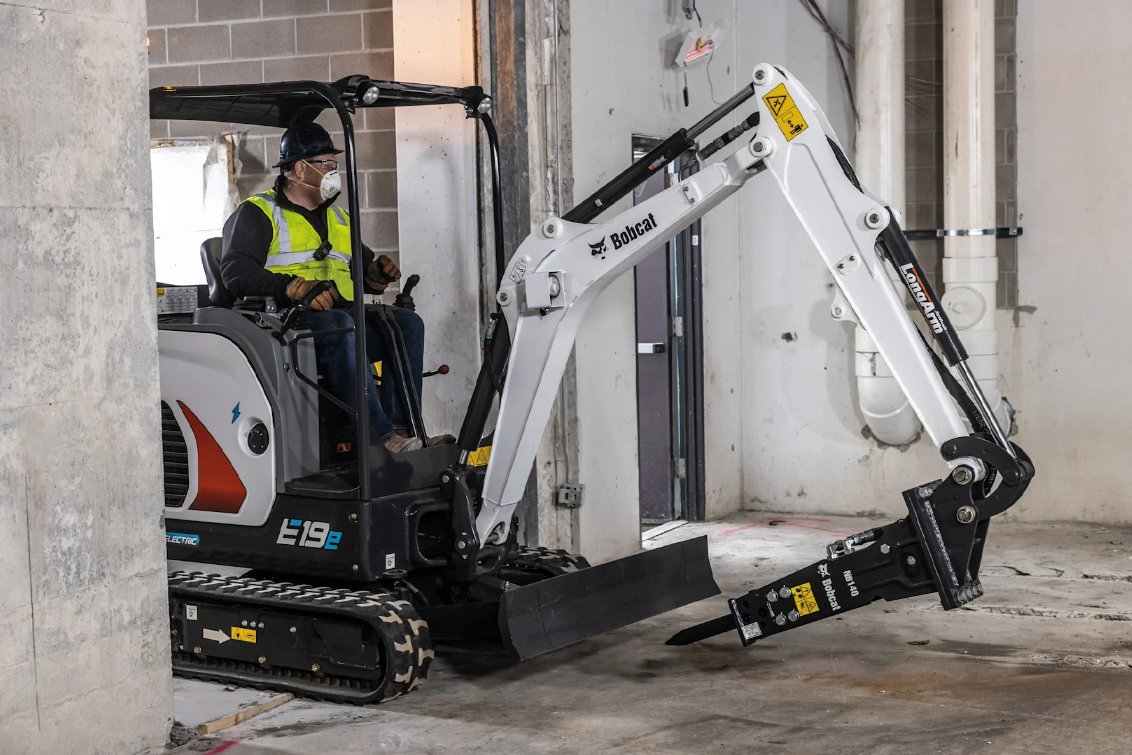

The Bobcat E19e Electric Mini Excavator delivers 2-ton diesel performance with zero emissions for your most demanding indoor and urban jobs. Featuring a hydraulically retractable undercarriage that narrows to just 39 inches, this 4212 lb. machine easily accesses tight backyards and indoor demolition sites. Once in position, the tracks expand to 54 inches to provide the over-the-side stability expected of a Conventional Tail Swing design. Powered by a 17.3 kWh lithium-ion battery system, the E19e comes equipped with a standard long arm to offer a 101-inch dig depth and 4684 lbf. of bucket digging force, ensuring you don't have to sacrifice heavy-duty power to go electric.
Specifications
| Operator Protection | ROPS / TOPS / FOPS |
| Tail Swing Type | Conventional Tail Swing |
| Operating Weight | 4212.0 lb |
| Overall Width | 39.0 in |
| Overall Width (extended) | 54.0 in |
| Overall Height | 91.0 in |
| Overall Length | 150.1 in |
| Engine Manufacturer | SCHABMULLER |
| Emissions Tier | Zero Emissions (All Electric) |
| Battery Capacity | 17.3 kWh |
| System Voltage | 51.8 V |
| Maximum Digging Depth | 101.0 in |
| Maximum Reach at Ground Level | 165.9 in |
| Maximum Dumping Height | 101.0 in |
| Bucket Breakout Force | 4684.0 lbf |
| Stick Digging Force - Standard | 2086.0 lbf |
| Blade Size (H x W) | 39 in |
| Arm Configuration | Standard Long Arm |
| Auxiliary Circuit Flow | 6.4 gal/min |
| Track Shoe Type | Rubber |
