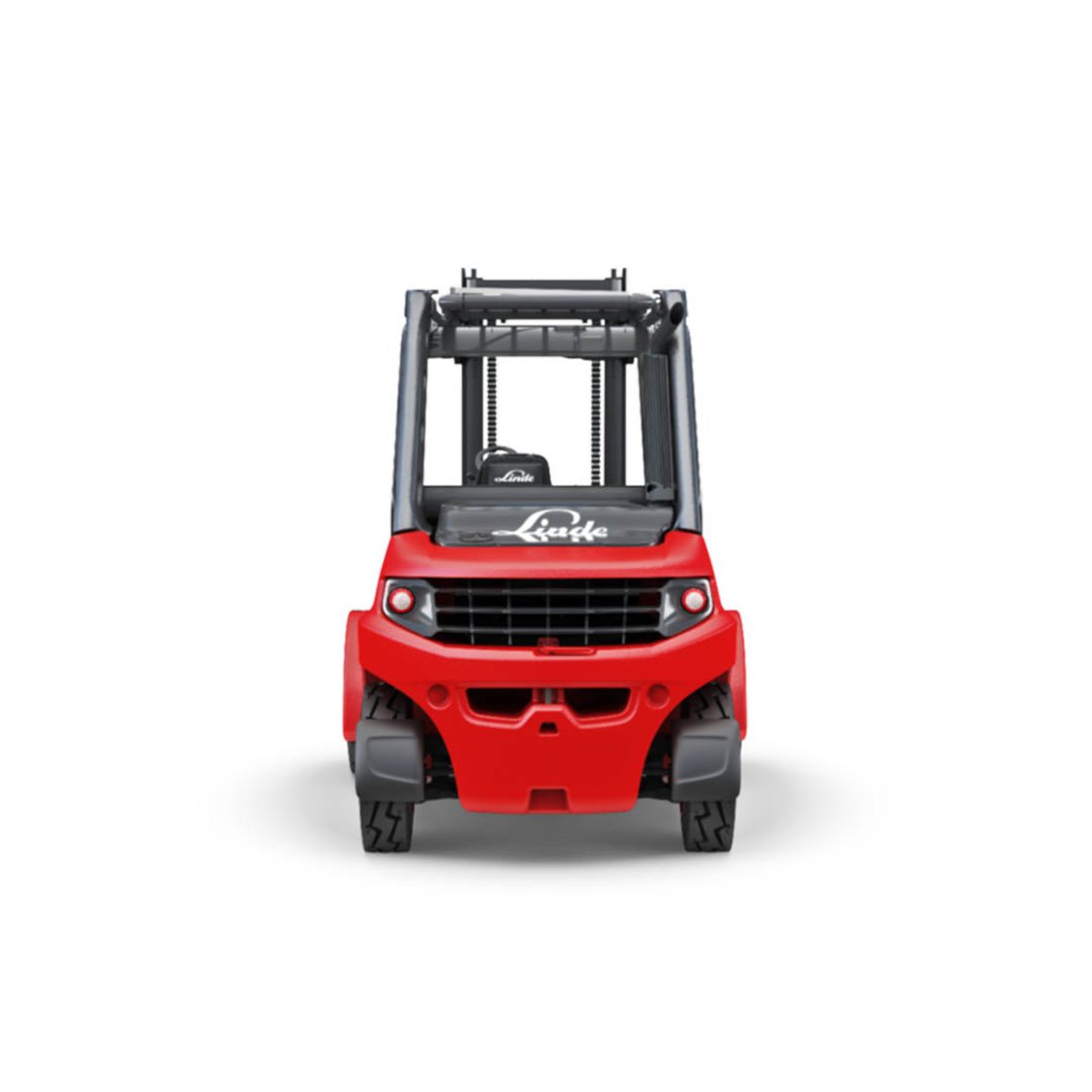

Linde H80D IC Pneumatic Forklift
Built for the toughest applications and designed with Linde’s history of performance and power, Linde H80D IC-Counterbalanced Lift Truck delivers superior results. Safe handling and high handling performance come hand in hand. Suited for heavy-duty applications, this truck has a lift capacity of 16,000 lbs. Key performance features and built-in safety measures helps increase your productivity on the job. Its powerful engine, hydrostatic direct drive, and the Linde Load Control lift mask control system all deliver a high operational performance. Reduce service time and increase handling capacity – the Linde H60D forklift truck can be of great value to your business.
Specifications
| Brakes | Hydrostatic |
| Power Mode | Diesel |
| Engine | BF6M1012 |
| Horsepower | 100.0 hp |
| Engine Manufacturer | KHD |
| Cylinders/Displacement | 6/369 |
| Relief Pressure Hyd | 3771.0 |
| Lowered Overall Height | 126.5 in |
| Maximum Fork Height | 163.5 in |
| Mast | 2-Stage |
| Steering | Hydrostatic |
| Transmission | Hydrostatic |
| Number of Speeds | Variable |
| Fork Size (T x W x L) | 2.75 X 6 X 48 in |
| Front Overhang | 23.6 in |
| Height to Top Overhead Guard | 106.9 in |
| Overall Length | 133.9 in |
| Overall Width | 87.8 in |
| Tread (Front/Rear) | 67.6/63.0 |
| Wheelbase | 85.0 in |
| Center of Wheelbase | 9.7 in |
| Steer Tire Size | 300 - 15/18PR |
| Drive Tire Size | 8.25 - 15/18PR |
| Lift Capacity | 17500.0 lbs |
| Maximum Drawbar Pull | 13062.0 lbs |
| Load Center | 24.0 in |
| Travel Speed Loaded | 13.7 mph |
| Gradeability Loaded @ 1 mph | 26.0 percent |
| Max Fork Height Rated Capacity | 238.5 in |
