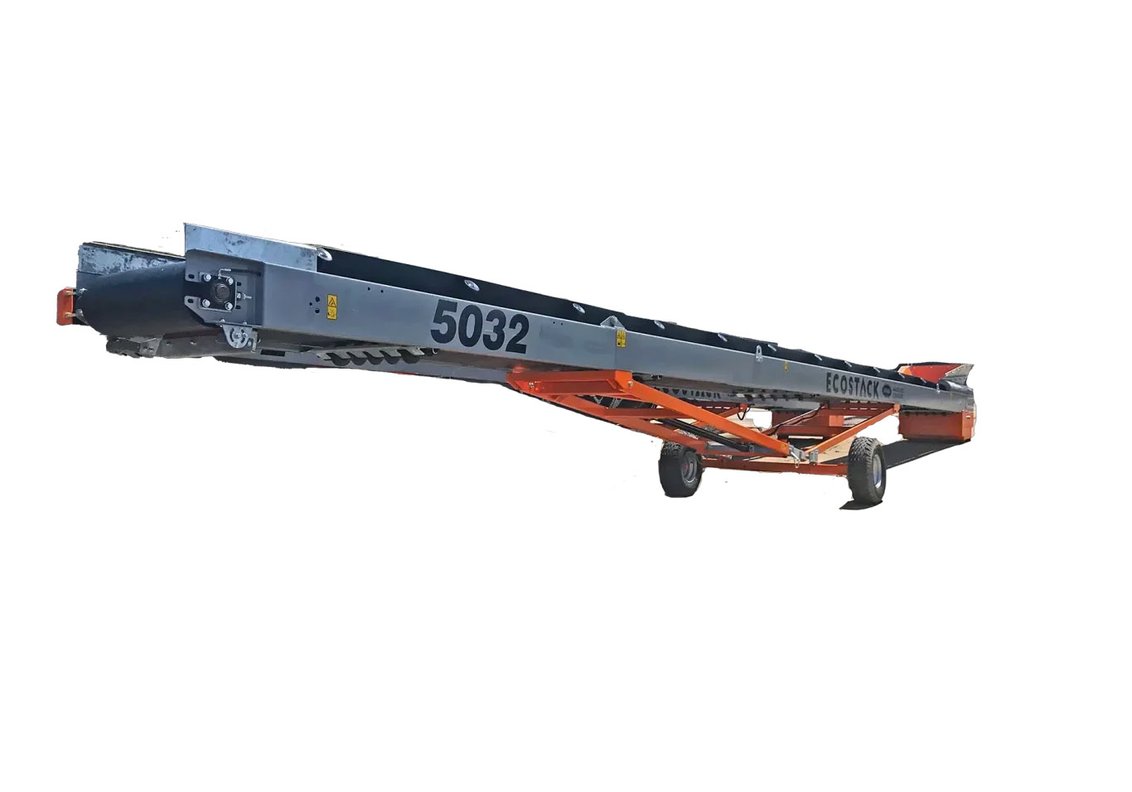

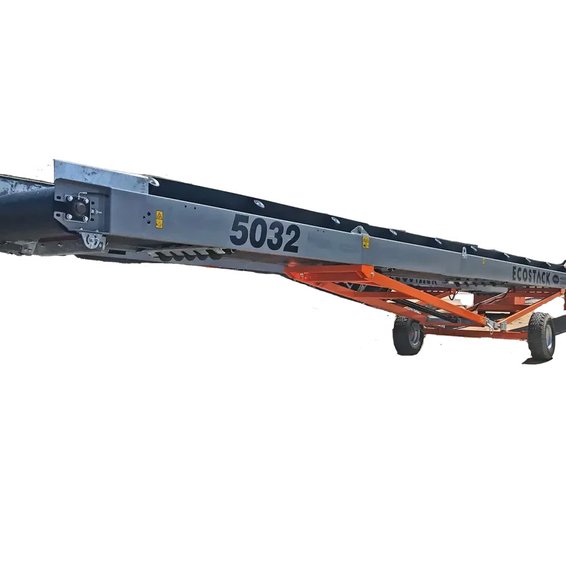

The EcoStack 5032W Wheeled Stacker is a compact yet powerful solution for efficient material handling across various industries. Designed to follow screening plants, crushers, or grinders, this stacker enhances operational efficiency by reducing material handling, lowering labor costs, and minimizing equipment wear.

Key Features

• Compact Design with High Capacity: Measuring 50 feet in length with a 32-inch-wide belt, the 5032W is Ecoverse's most compact stacker, capable of handling substantial volumes despite its smaller footprint.

• Hydraulic Wrap Drive: The belt is driven close to the engine compartment, ensuring maximum power transfer and efficiency across various applications.

• Efficient Setup: Features like hydraulic top fold, raise/lower mechanisms, and axle jacks facilitate quick and safe setup, allowing for rapid deployment on-site.

• Durable Construction: Equipped with 5mm steel liners on the feed boot and an impact bar system under the feed area, the 5032W is built to withstand demanding conditions.

• Optional Road-Legal Package: For enhanced mobility, an optional road-legal package includes lights, fenders, LED flashers, a King-Pin coupling, and air brakes, making transportation between sites straightforward.

Technical Specifications

• Conveyor Length: 50 feet

• Belt Width: 32 inches

• Engine Power: Optional configurations available

• Stockpile Capacity:

  • Cone: 390 cubic yards

  • At 180°: 2,976 cubic yards

Ideal for applications in aggregate processing, composting, wood waste management, and more, the EcoStack 5032W Wheeled Stacker offers a robust and efficient solution for material stockpiling needs.
