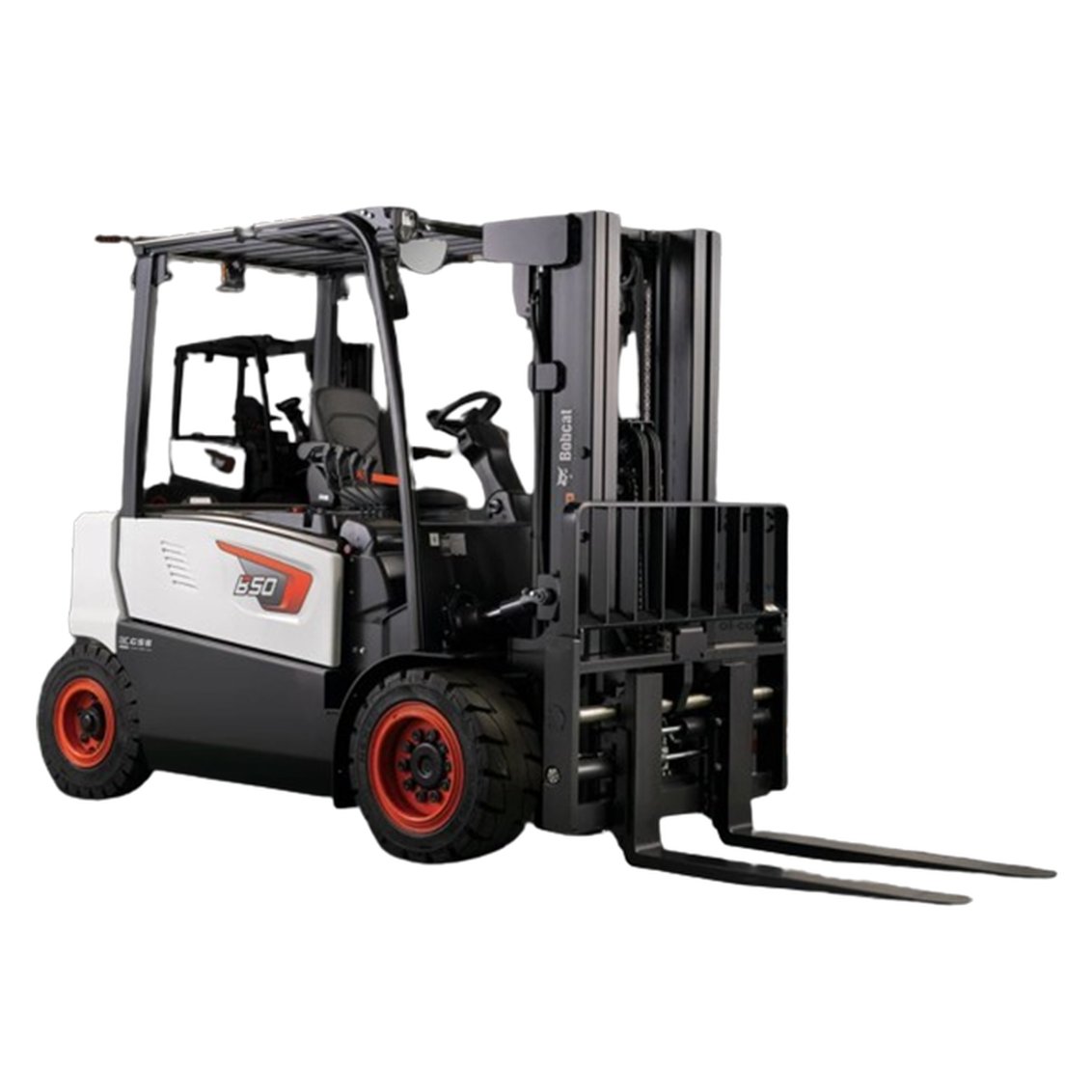

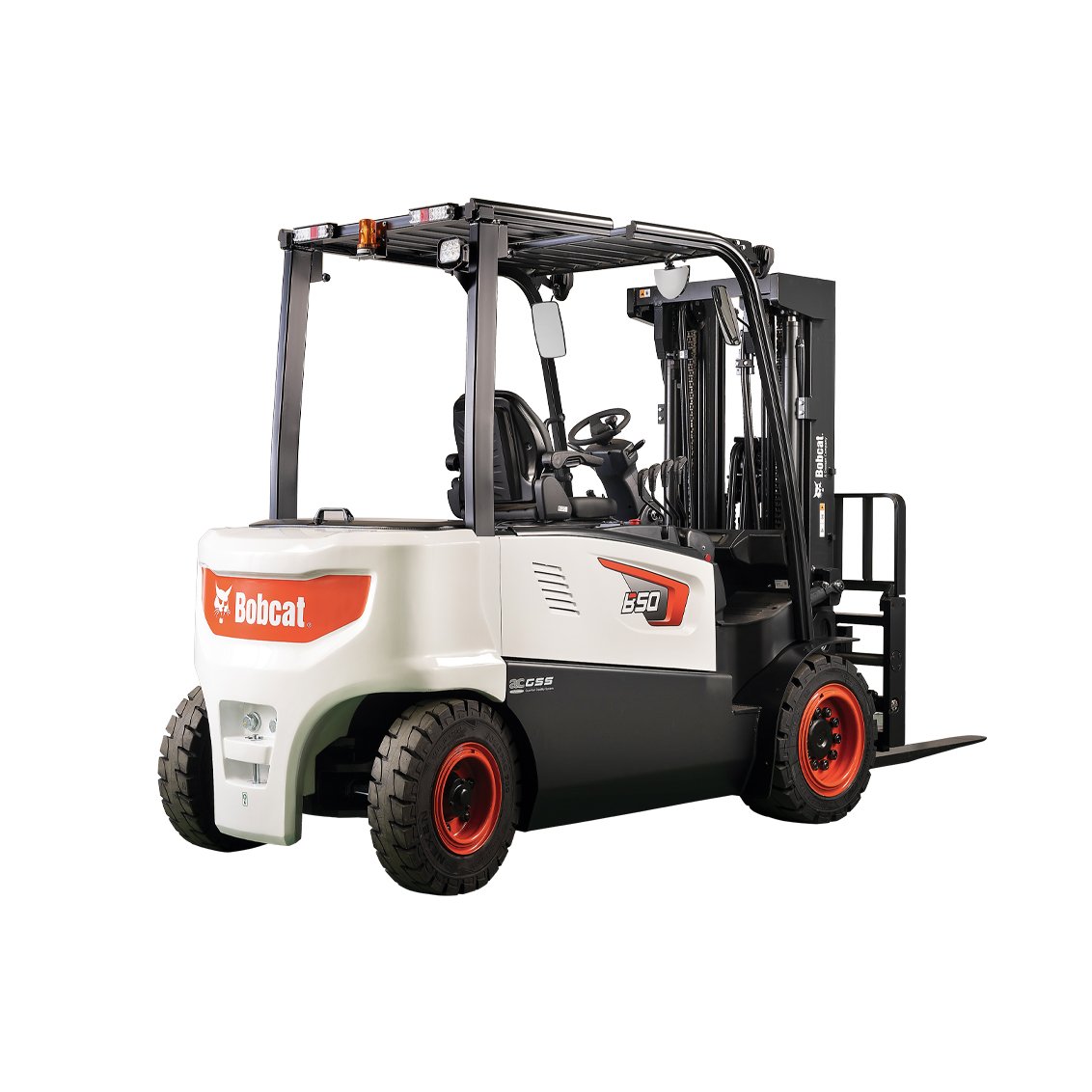

Bobcat B45X-7 Electric Pneumatic Forklift
Conquer heavy-duty material handling with the Bobcat B45X-7, a rugged 4-wheel electric forklift engineered to lift up to 9,000 pounds. Built for demanding environments like lumber yards, manufacturing facilities, and heavy-duty loading docks, this non-Plus heavy-series model utilizes a high-efficiency 80V electrical system to deliver the immense power and torque of an IC truck without the noise or emissions.
The B45X-7 is armored against the elements, featuring IP43-rated enclosed drive motors and IP65-rated sealed controllers to block out moisture and worksite dust. Maintenance costs are slashed thanks to Bobcat's exclusive Oil-Cooled Disc Brakes (OCDB), a fully enclosed system designed to run up to 10,000 hours without the constant adjustments required by traditional shoe brakes. Designed with operator comfort in mind, the spacious cab includes an adjustable premium suspension seat, an ergonomic steering column, and an easy-to-read instrument panel for on-the-fly performance adjustments.
Specifications
| Lift Capacity | 9000.0 lbs |
| Up to Max Lift Height | 129.9 in |
| Free Lift | 6.3 in |
| Load Centre | 24.0 in |
| Mast Type | Standard Two-Stage (FF and FFT Optional) |
| Steering Type | Power Steering |
| Operator Protection | Standard Overhead Guard |
| Operating Weight | 16374.0 lbs |
| Overall Width | 51.3 in |
| Overall Length (to Fork Face) | 116.4 in |
| Overhead Guard Height | 92.5 in |
| Turning Radius | 104.1 in |
| Max Travel Speed | 9.9 mph |
| Max Gradeability | 27.0 % |
| Brake Type | Oil-Cooled Disc Brakes (OCDB) / Hand-Mechanical Parking Brake |
| Max Lift Speed | 92.5 fpm |
| Front Tire Size | 28 x 12 - 15 in |
| Rear Tire Size | 7 - 12 in |
| Tire Type | Pneumatic / Solid (Super-elastic) |
| Power Mode | Battery (Lead-Acid / Lithium-Ion optional) |
| Voltage | 80 V |
