New Equipment

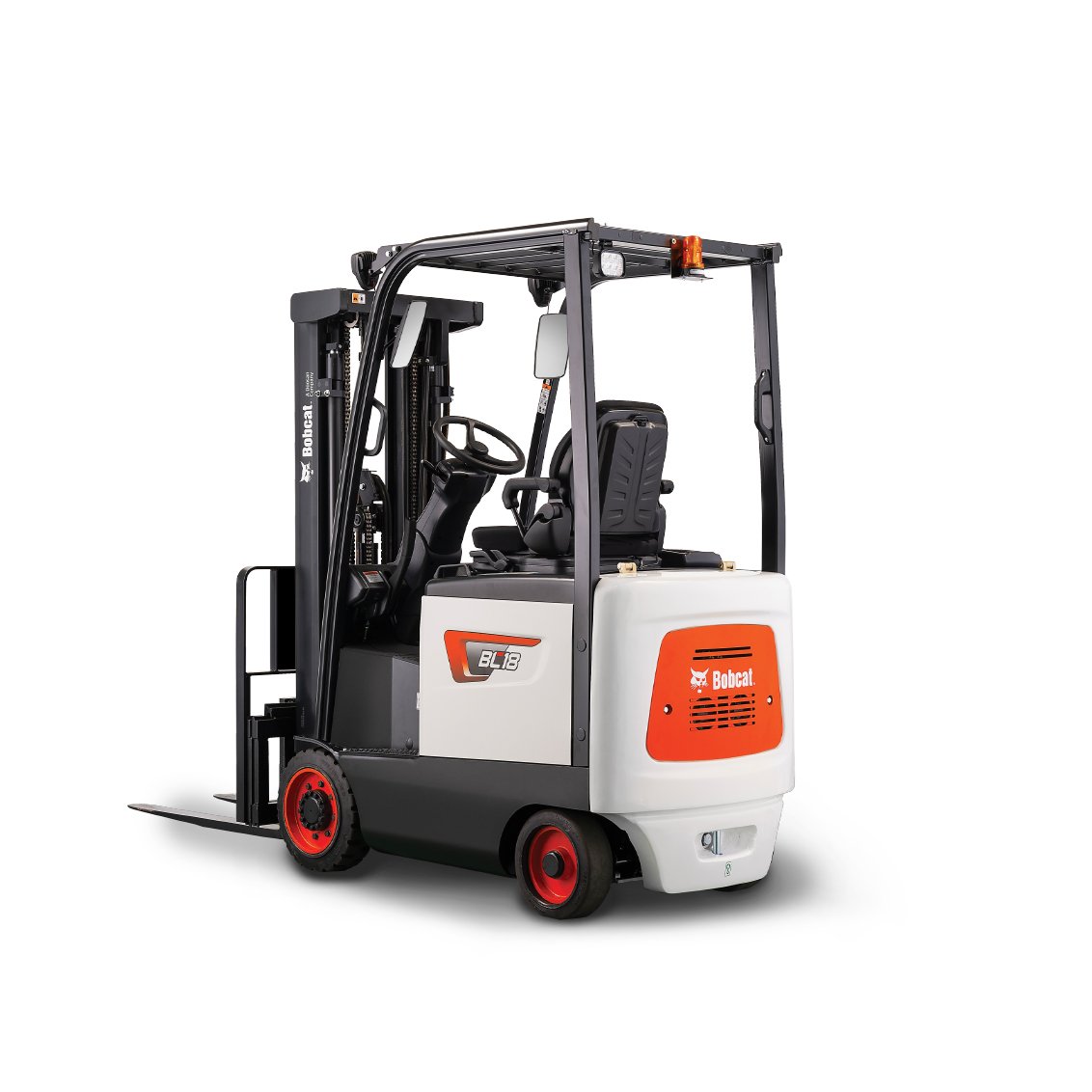

Bobcat BC18-5 Small-Capacity Electric Cushion Forklift

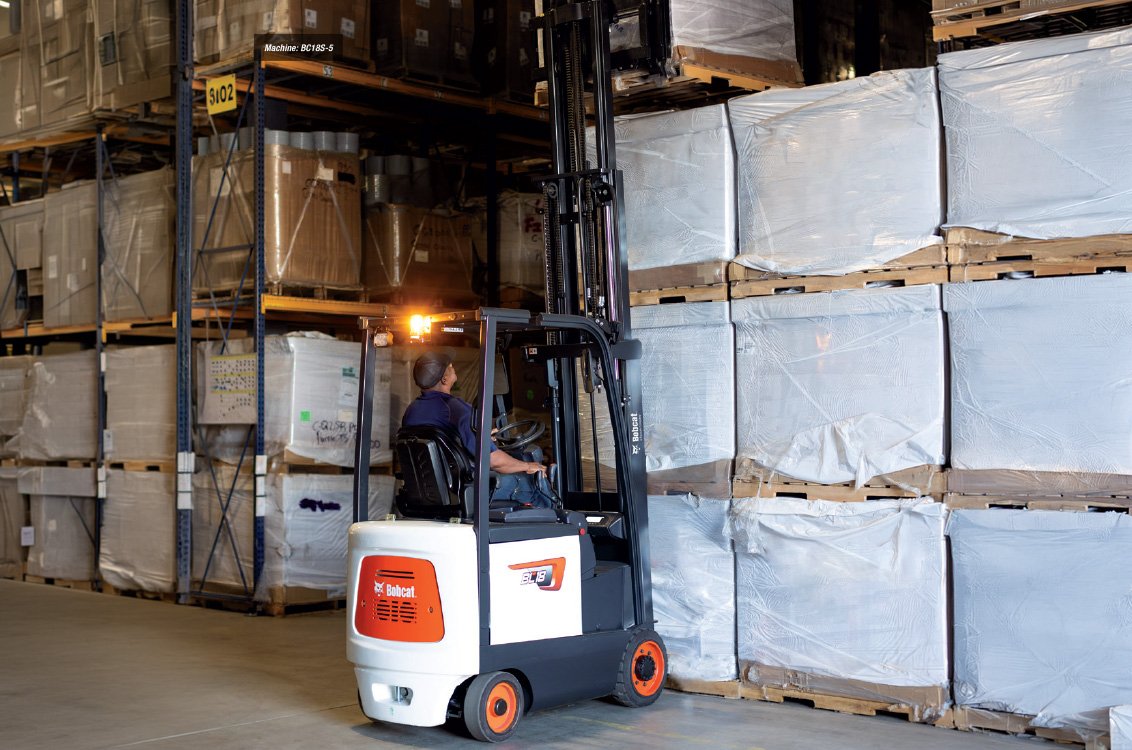

The Bobcat BC18-5 is a nimble, small-capacity cushion electric forklift built for tight, smooth-floor spaces. It confidently handles 3,500 lbs, and can reach up to 130-inches with a standard 2-stage mast (higher options available). It runs a clean, quiet 36V electric system to keep things moving. These forklifts are great for docks, manufacturing, and narrow staging lanes.
Specifications
| Brakes | Oil Disc |
| Power Mode | Electric |
| Maximum Fork Height | 187.0 in |
| Standard Mast: Free Lift | 63.0 in |
| Mast | 3-Stage |
| Control Type | Microprocessor |
| Drive Motor | DC |
| Minimum Battery Weight | 1852.0 lbs |
| Plug Type | SB-350 Gray |
| Voltage | 36.0 V |
| Steering | Hydrostatic |
| Min. Aisle Right Ang Stack +LL | 82.0 in |
| Maximum Fork Spread | 35.6 in |
| Front Overhang | 15.5 in |
| Tread (Front/Rear) | 31/31 |
| Outside Turning Radius | 66.5 in |
| Height To Top Overhead Guard | 85.2 in |
| Lowered Overall Height | 83.0 in |
| Center of Wheelbase | 3.7 in |
| Overall Length | 76.2 in |
| Overall Width | 37.2 in |
| Wheelbase | 48.0 in |
| Steer Tire Size | 14 x 5 x 10 |
| Drive Tire Size | 18 x 6 x 12-1/8 in |
| Lift Capacity | 3500.0 lbs |
| Travel Speed Loaded | 7.9 mph |
| Load Center | 24.0 in |
Current Promotions
Current promotions can save you money. We offer promotions that may include Low finance rates, cash back, bonus attachments and more. Check out our current promotional offers to see what may apply to your next equipment purchase.
Specifications and images may vary in accuracy.
Data Powered By EquipmentWatch
