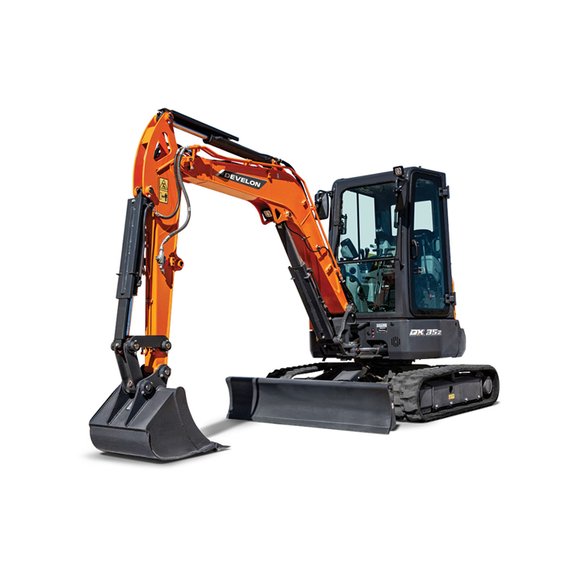

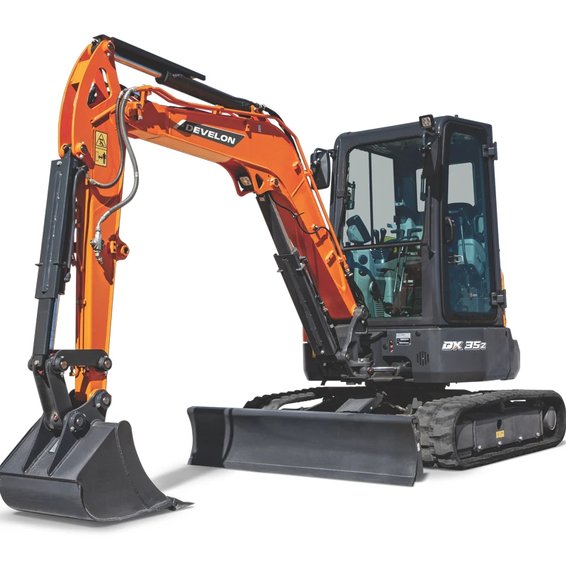

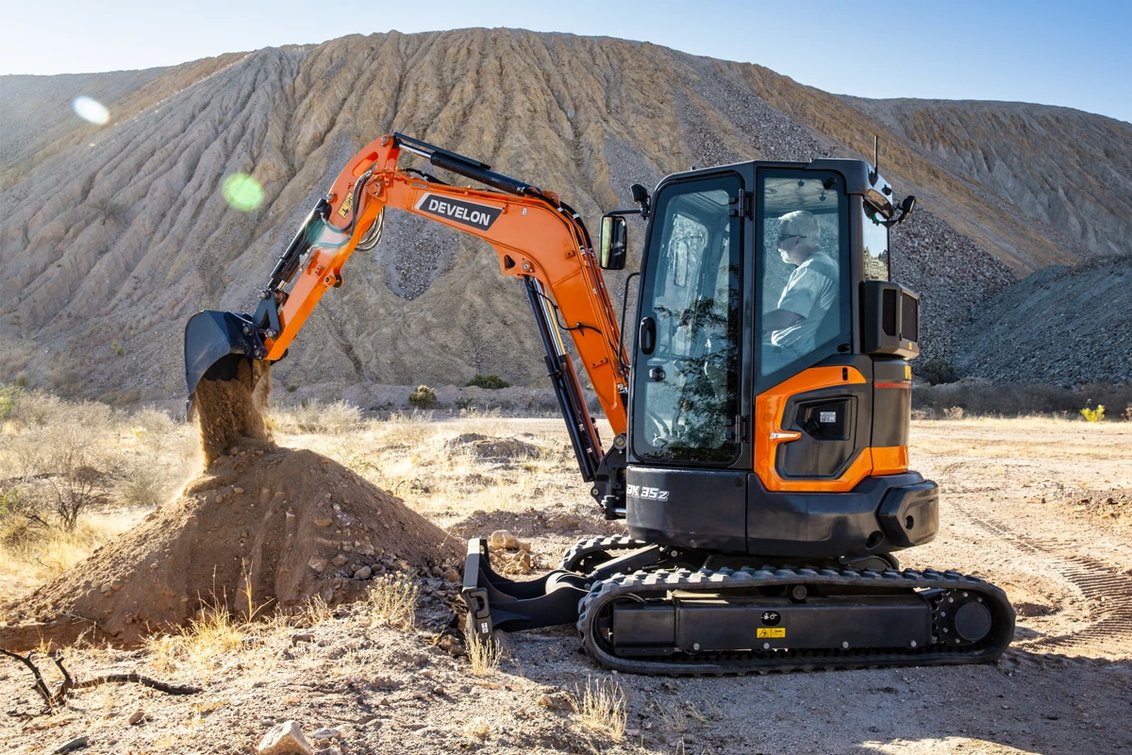

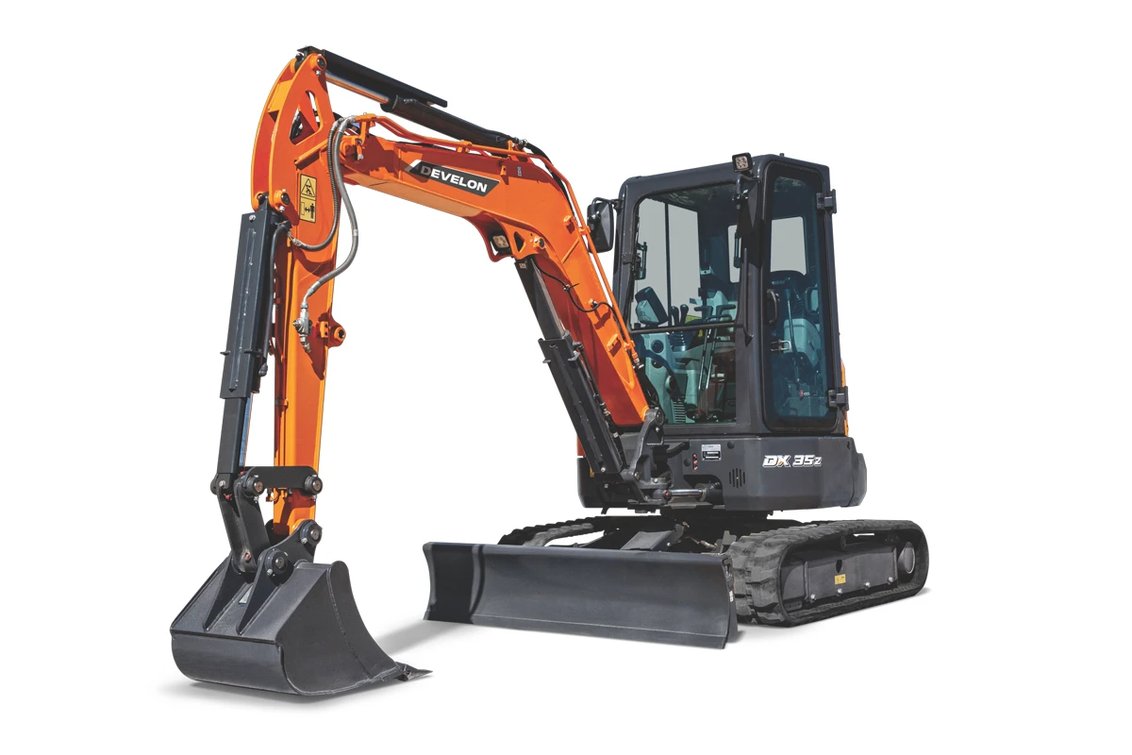

DEVELON DX35Z-7 Mini Excavator
Step up your site prep and utility work without sacrificing tight-access maneuverability. The DEVELON DX35Z-7 is a 4-metric-ton powerhouse featuring a true zero tail swing design, allowing you to operate safely in single lanes or flush against structures. It is powered by dual 10.0 gpm main pumps, providing a massive combined 20.0 gpm of hydraulic flow for smooth, simultaneous attachment operation.
Armed with an aggressive 7,143 lbf of bucket breakout force and a 128.9-inch maximum digging depth, this machine chews through compacted soil and easily manages heavy lifting tasks that smaller minis can't handle.
Specifications
| Operator Protection | ROPS / TOPS |
| Tail Swing Type | Zero Tail Swing |
| Operating Weight | 8554.0 lb |
| Overall Width | 66.9 in |
| Overall Height | 97.6 in |
| Overall Length | 188.2 in |
| Horsepower | 24.7 hp |
| Engine Manufacturer | DEVELON |
| Engine Model | DN1.7 |
| Emissions Tier | Tier 4 Final |
| Fuel Tank Capacity | 9.5 gal |
| Maximum Digging Depth | 128.9 in |
| Maximum Reach at Ground Level | 206.1 in |
| Maximum Dumping Height | 140.9 in |
| Bucket Breakout Force | 7143.0 lbf |
| Stick Digging Force - Standard | 4674.0 lbf |
| Blade Size (H x W) | 15 x 66.9 in |
| Arm Configuration | Standard |
| Auxiliary Circuit Flow | 20.0 gal/min |
| Track Shoe Type | Rubber |
| Ground Pressure | 5.12 psi |
Current Promotions
Current promotions can save you money. We offer promotions that may include Low finance rates, cash back, bonus attachments and more. Check out our current promotional offers to see what may apply to your next equipment purchase.
Tackle your toughest seasonal projects with the DEVELON DX35Z-7 Mini Excavator. Upgrade your equipment lineup today with this versatile, high-performance machine and get ready to maximize your job site efficiency.
Specifications and images may vary in accuracy.
