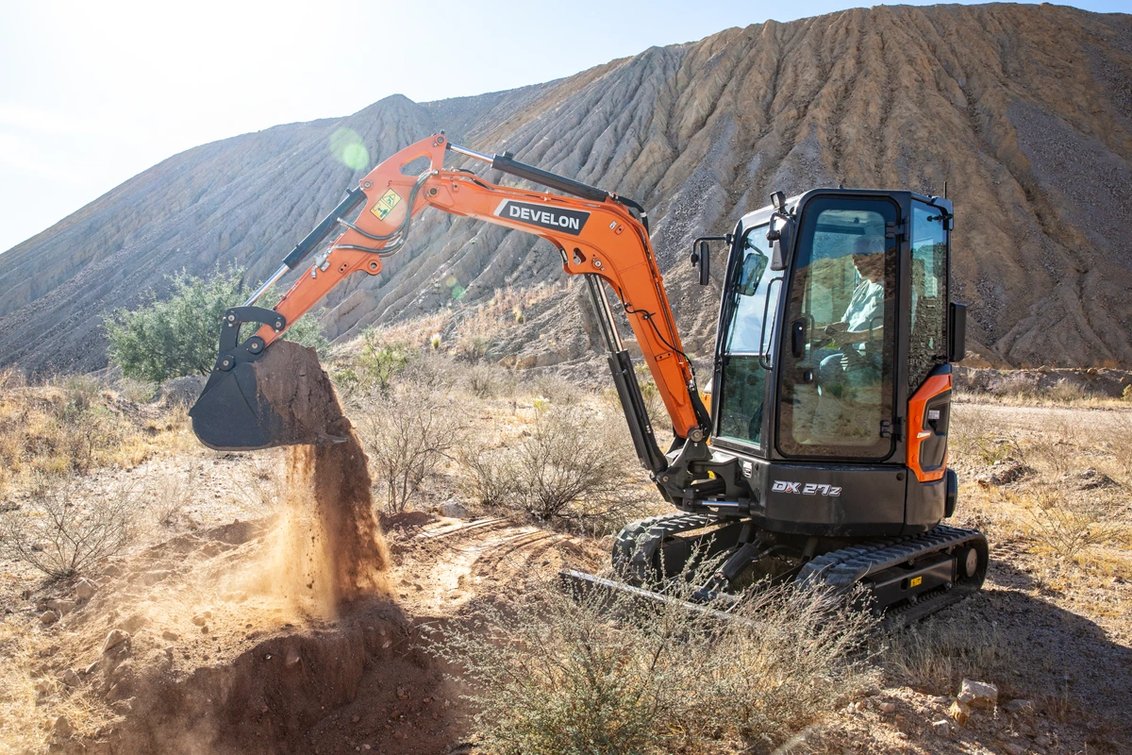

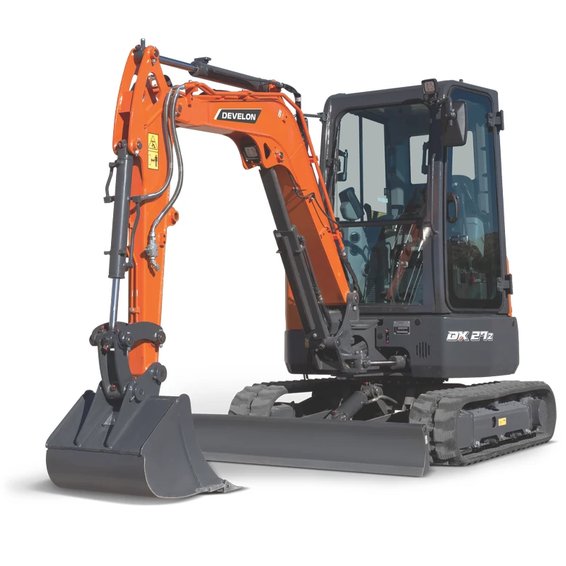

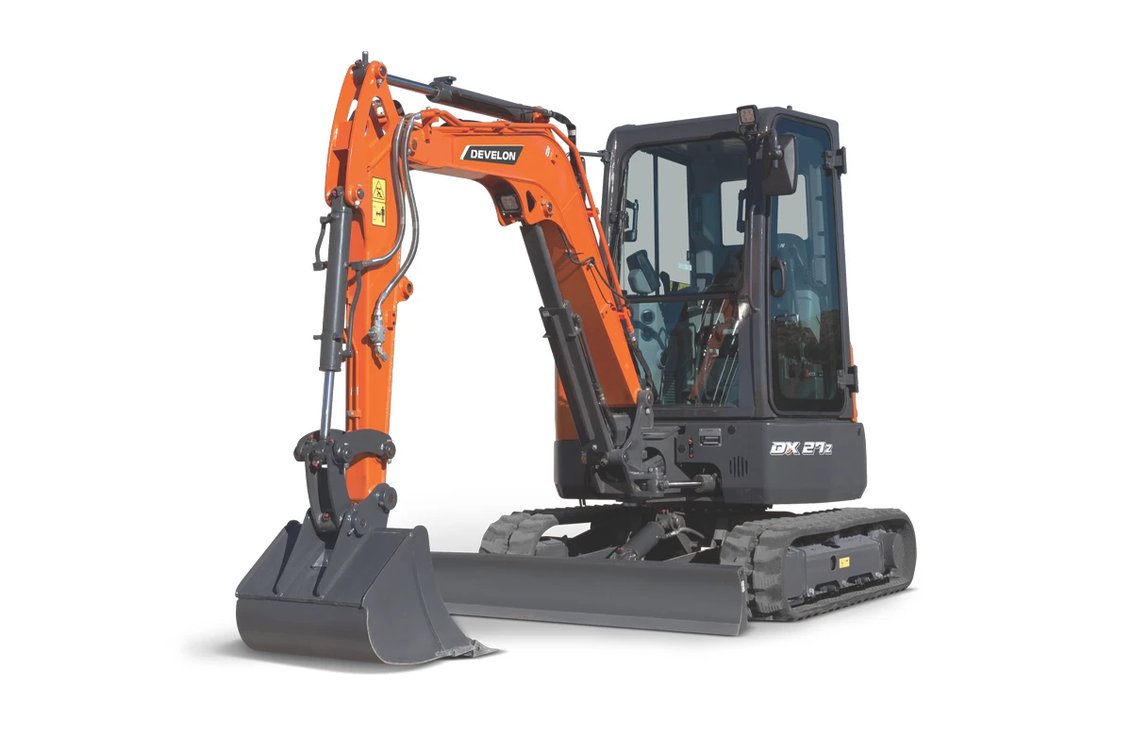

DEVELON DX27Z-7 Mini Excavator
The DEVELON DX27Z-7 eliminates the guesswork of working in crowded urban environments. Featuring a true zero tail swing design and a compact 61-inch width, you can rotate 360 degrees flush against walls without the risk of rear-swing impact.
This 2.7-ton powerhouse is driven by dual 7.6 gpm main pumps, providing a combined 15.2 gpm of hydraulic flow for smooth, multi-function attachment performance. Whether you are using the standard arm or the optional long-arm configuration, the DX27Z-7 provides the muscle needed to break through tough soil with 4,894 lbf of bucket breakout force.
Specifications
| Operator Protection | ROPS / TOPS / FOPS |
| Tail Swing Type | Zero Tail Swing |
| Operating Weight | 6106.8 lb |
| Overall Width | 61.0 in |
| Overall Height | 96.0 in |
| Overall Length | 164.8 in |
| Horsepower | 24.7 hp |
| Engine Manufacturer | DEVELON |
| Engine Model | DN1.7 |
| Emissions Tier | Tier 4 Final |
| Fuel Tank Capacity | 9.5 gal |
| Maximum Digging Depth | 104.1 in |
| Maximum Reach at Ground Level | 178.0 in |
| Maximum Dumping Height | 115.6 in |
| Bucket Breakout Force | 4894.0 lbf |
| Stick Digging Force - Standard | 3197.0 lbf |
| Blade Size (H x W) | 10.2 x 61 in |
| Arm Configuration | Standard |
| Auxiliary Circuit Flow | 15.2 gal/min |
| Track Shoe Type | Rubber |
| Ground Pressure | 3.8 psi |
