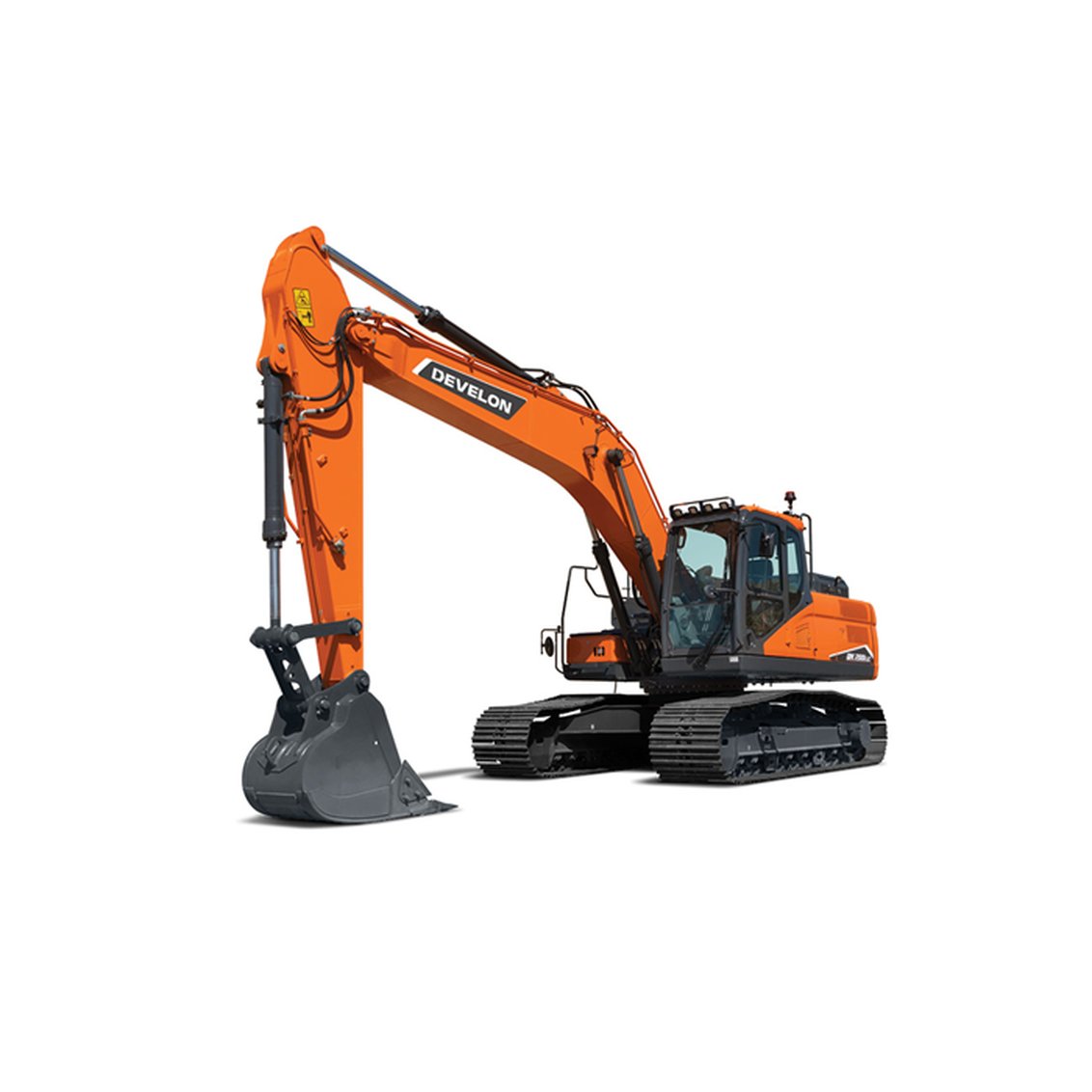

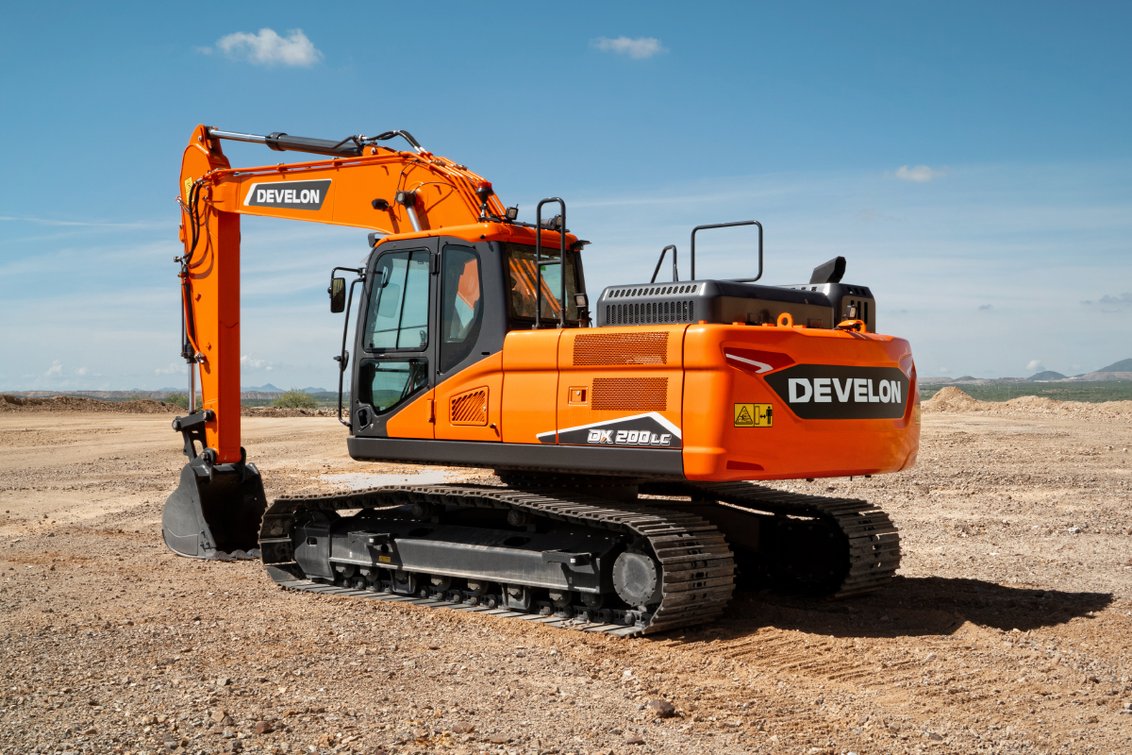

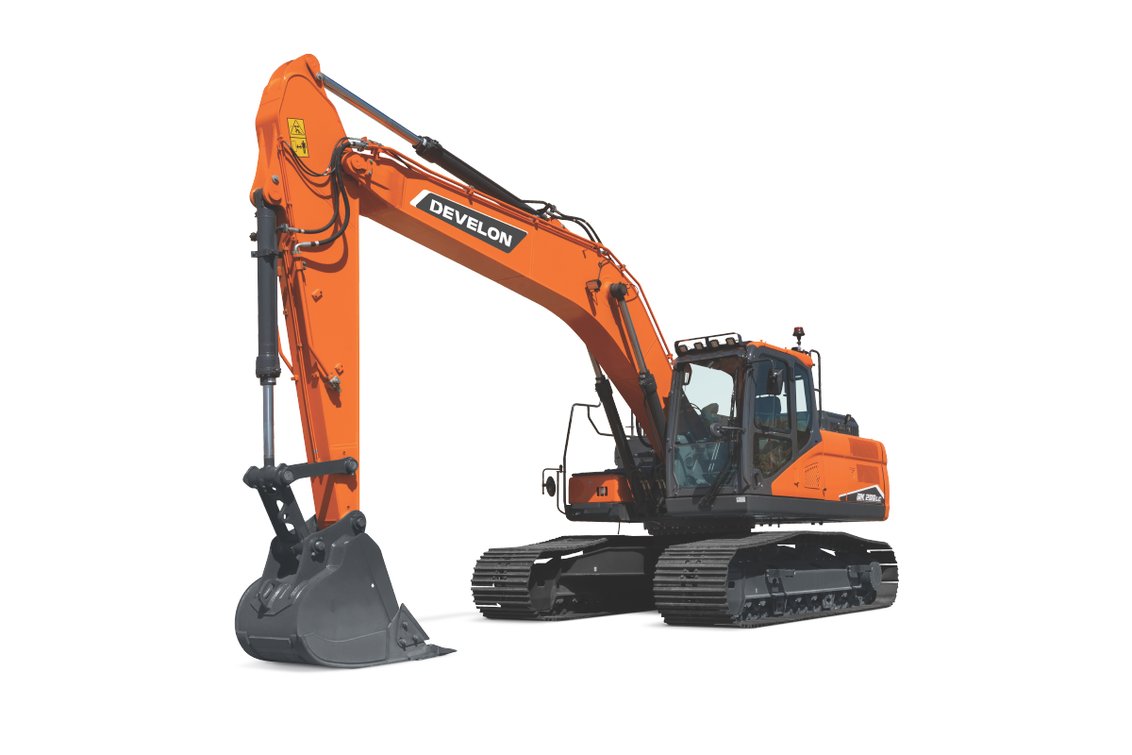

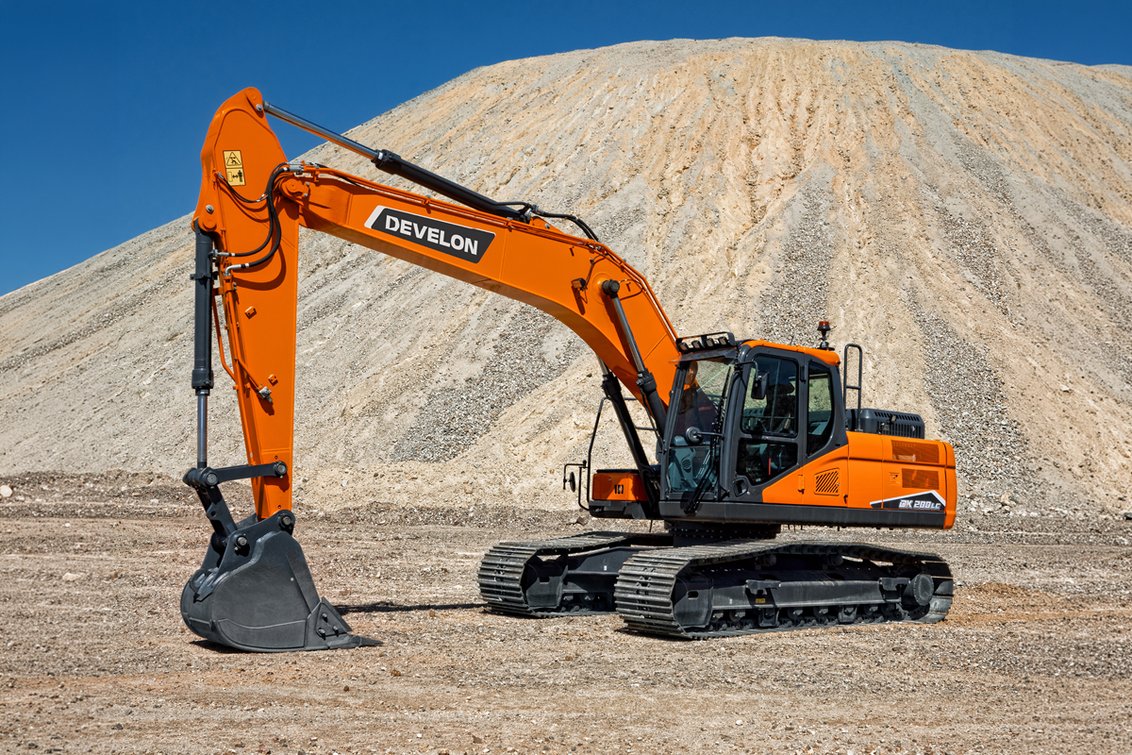

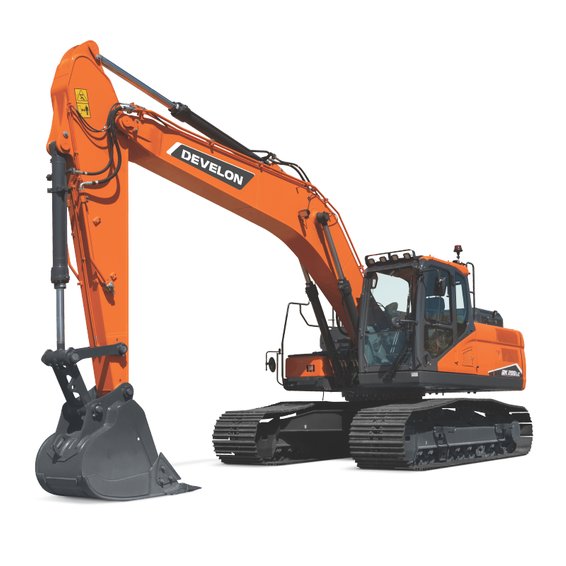

DEVELON DX200LC-7 Crawler Excavator
Command your heavy commercial jobsites with the DEVELON DX200LC-7 crawler excavator. Driven by a robust 147 hp Perkins Tier 4 Final engine, this machine boasts a highly stable 50,706 lb operating weight and unyielding structural durability, making it the perfect anchor for your high-volume earthmoving and pipe-laying operations.
You can overcome the most heavily compacted ground and aggressive projects. This machine delivers an enormous 36,376 lbf of bucket breakout force and a 240-inch maximum dig depth. It can easily tear through rocky terrain and heavy clay, keeping your most demanding mass excavation projects on schedule.
Specifications
| Operator Protection | ROPS (ISO 12117-2:2008) Enclosed Cab |
| Operating Weight | 51147.0 lbs |
| Tail Swing Radius | 96.5 in |
| Overall Width | 125.0 in |
| Overall Height | 117.0 in |
| Overall Length | 378.0 in |
| Horsepower | 138.1 hp |
| Engine Make & Model | Perkins 1204J |
| Emissions Tier | Tier 4 Final |
| Fuel Tank Capacity | 101.4 gal |
| Arm Length (standard) | 94.0 in |
| Max Digging Depth | 240.4 in |
| Max Reach at Ground Level | 364.4 in |
| Max Dumping Height | 262.8 in |
| Bucket Breakout Force | 36376.3 lbf |
| Stick Digging Force | 29541.9 lbs |
| Max Main Pump Flow | 112 (2 x 56) gal/min |
| Track Shoe Width | 31.5 in |
| Ground Pressure | 5.3 psi |
Current Promotions
Current promotions can save you money. We offer promotions that may include Low finance rates, cash back, bonus attachments and more. Check out our current promotional offers to see what may apply to your next equipment purchase.
Specifications and images may vary in accuracy.
Data Powered By EquipmentWatch
