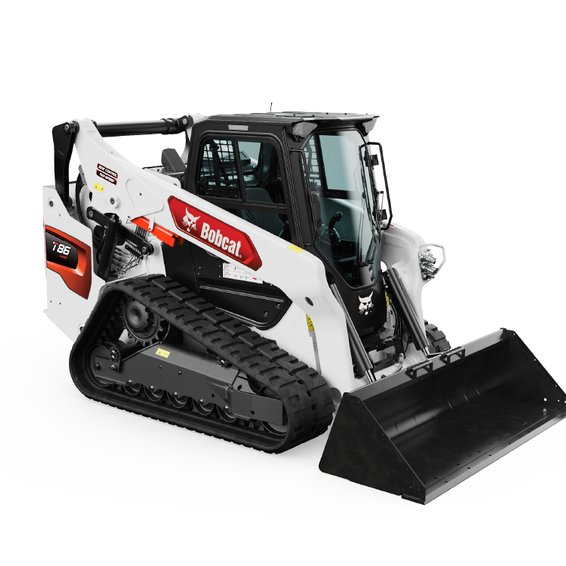

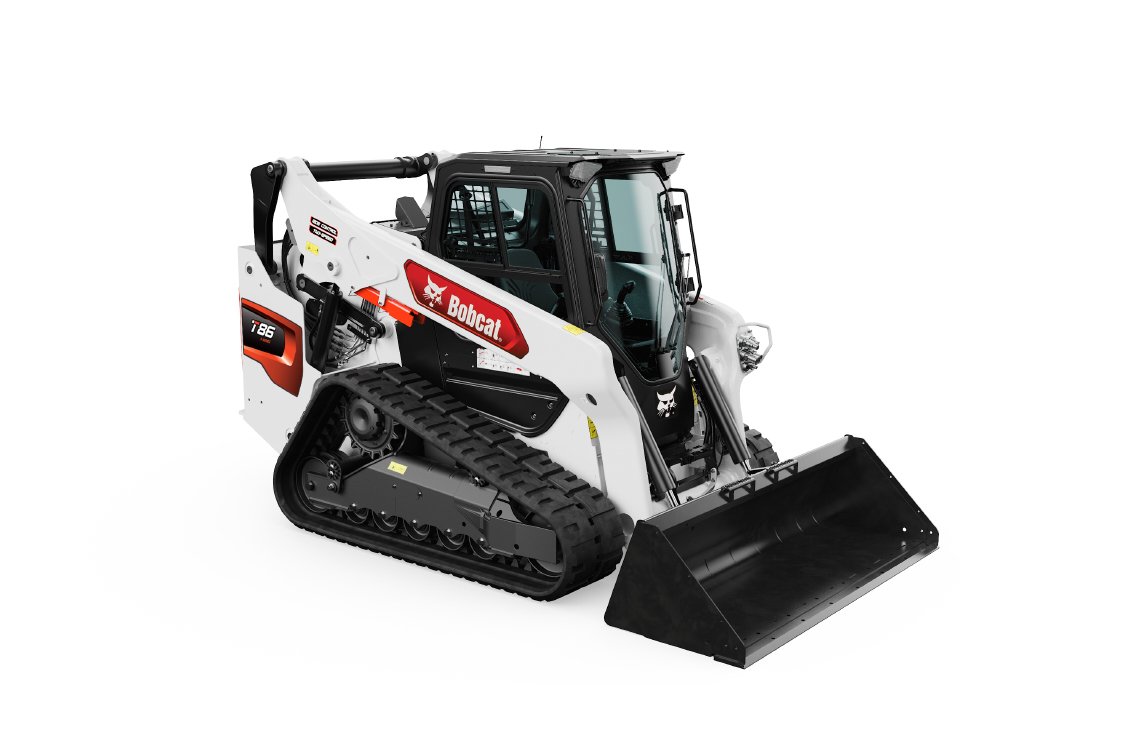

Bobcat T86 Compact Track Loader

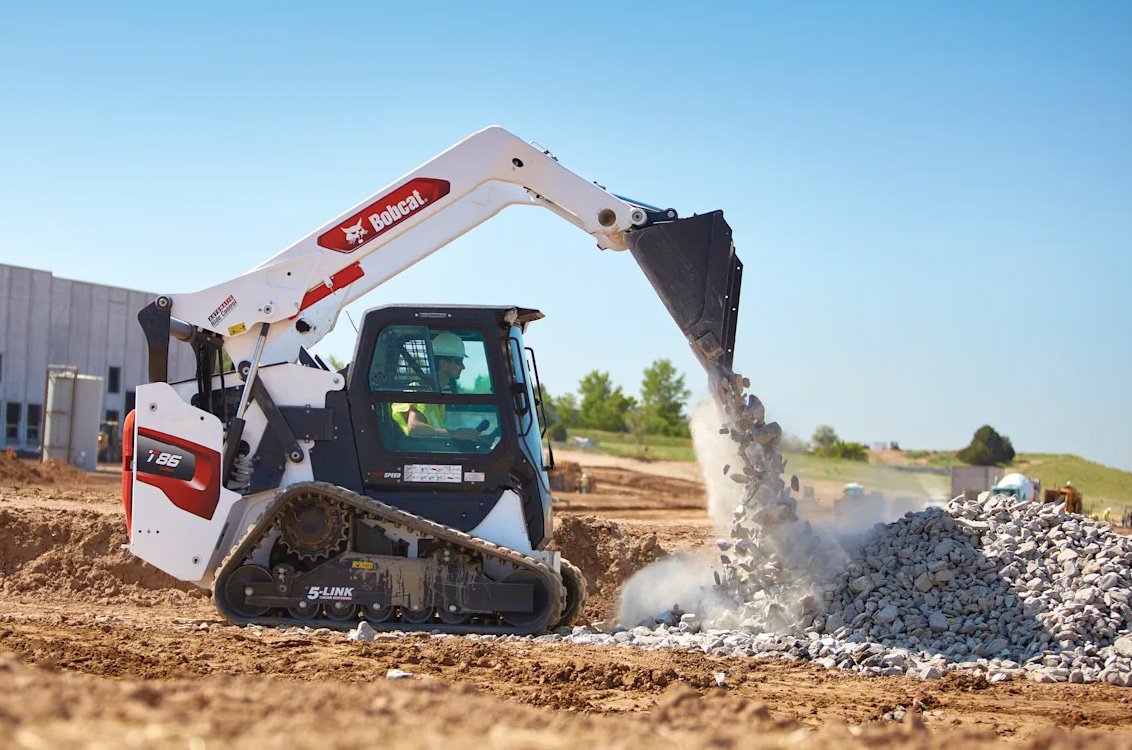

Take on the most extreme forestry, grading, and material handling jobs with the Bobcat T86. Tipping the scales at a massive 11,477 pounds, this machine is driven by a 110-horsepower engine to deliver unmatched pushing capability and breakout force. With a 3,800-pound rated operating capacity and a 132-inch hinge pin height, operators can effortlessly manage towering soil piles and load large commercial dump trucks.

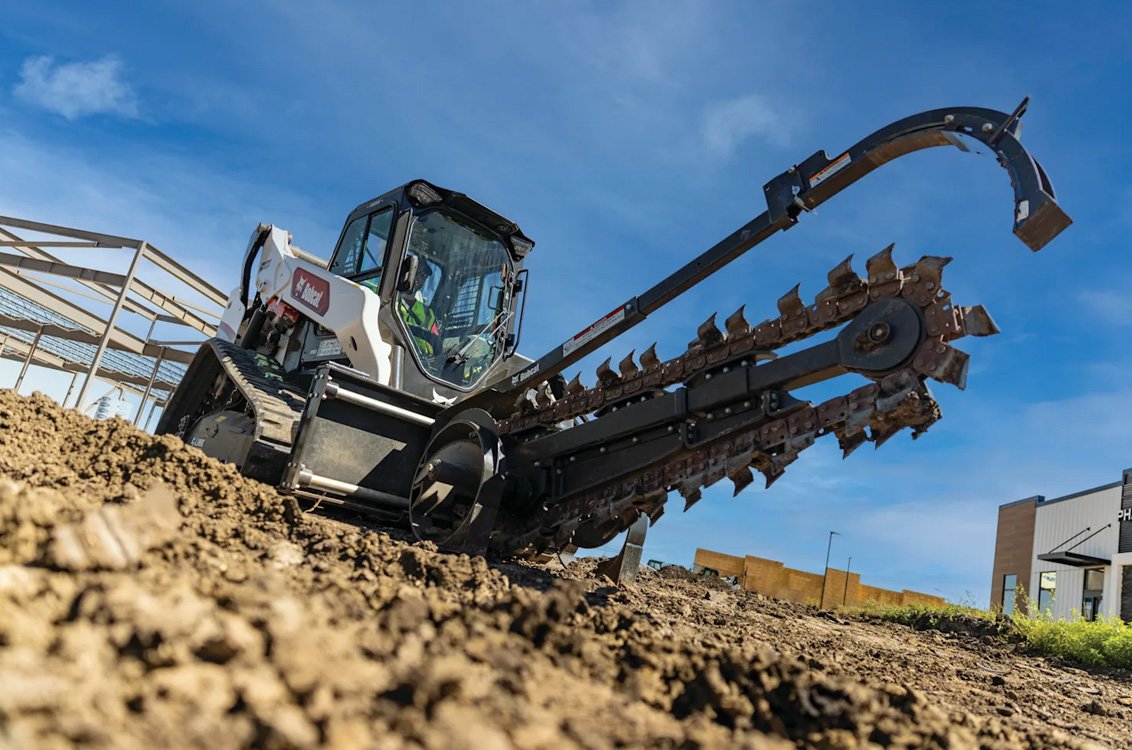

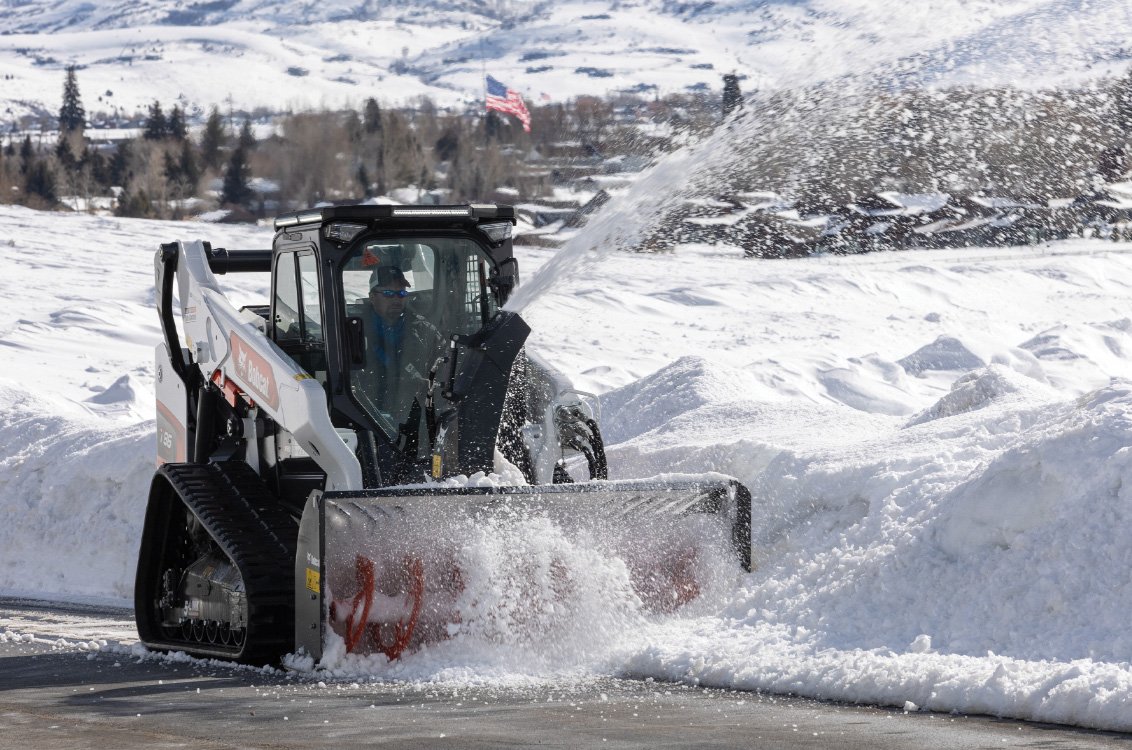

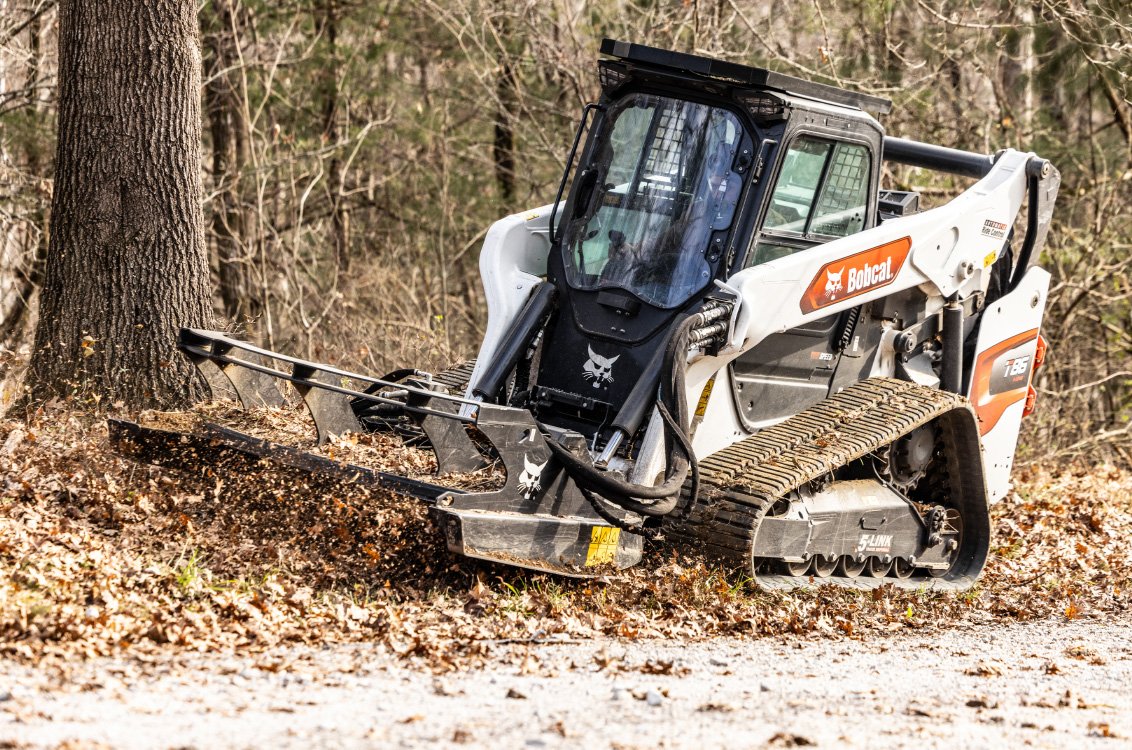

Despite its formidable size, the T86 maintains a low 5-psi ground pressure to easily navigate soft terrain without sinking. Equipped with standard joystick controls, a 32-gallon fuel tank, and the ability to run high-demand attachments with up to 42 gpm of optional super-flow hydraulics, it maximizes daily productivity on any heavy-duty site.
Specifications
| Operator Protection | Enclosed Cab |
| Control Type | Standard Joystick Control |
| Operating Weight | 12441.0 lbs |
| Length with Bucket | 153.5 in |
| Overall Width | 80.0 in |
| Height to Top of Cab | 83.1 in |
| Track Width | 17.7 in |
| Ground Pressure | 4.8 psi |
| Engine Model | D34 BSH SV |
| Gross Horsepower | 105.0 hp |
| Emissions Tier | Stage V |
| Fuel Tank Capacity | 31.7 gal |
| Rated Operating Capacity (ROC) | 3800 lbs |
| Tipping Load | 11194 lbs |
| Height to Hinge Pin | 132.0 in |
| Standard Auxiliary Flow | 23.0 gal/min |
| High Auxiliary Flow | 36.6 gal/min |
| Travel Speed (low) | 5.5 mph |
| Travel Speed (high) | 10.7 mph |
