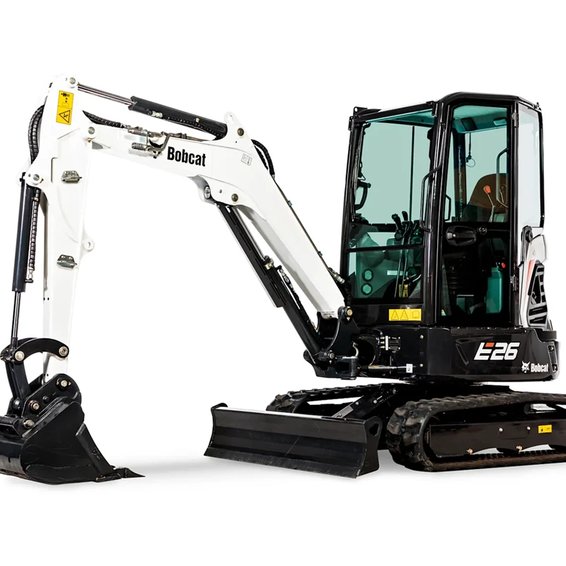

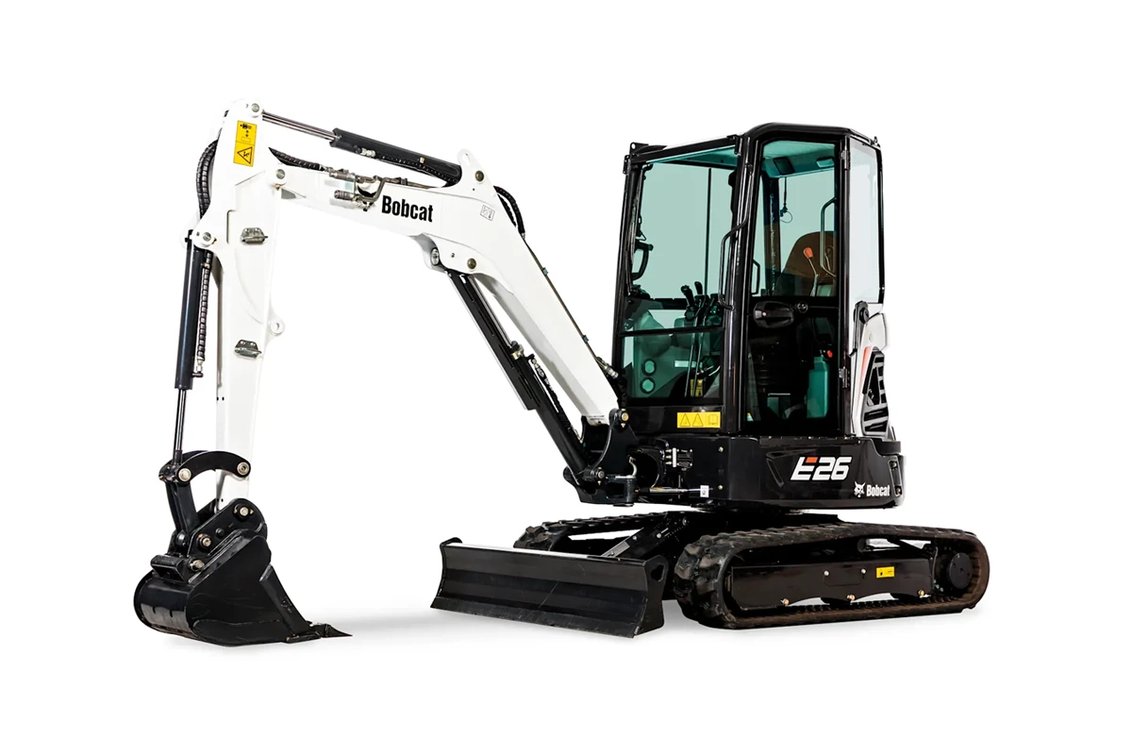

Bobcat E26 Mini Excavator
The Bobcat E26 compact excavator delivers exceptional reach and stability in a highly transportable 3-ton package. Featuring a standard long-arm configuration, this machine provides an extended 114.4-inch digging depth so you can do more work without repositioning. Combined with a Minimal Tail Swing design and a fuel-efficient, Tier 4-compliant engine, the E26 allows you to work confidently flush against walls and obstacles while maximizing your working range.
Specifications
| Operator Protection | TOPS / ROPS / FOPS |
| Tail Swing Type | Minimal Tail Swing |
| Operating Weight | 6489.0 lb |
| Overall Width | 61.0 in |
| Overall Height | 96.0 in |
| Overall Length | 170.4 in |
| Horsepower | 24.8 hp |
| Engine Manufacturer | Bobcat |
| Engine Model | D1.3 |
| Emissions Tier | Tier 4 / Non-DPF |
| Fuel Tank Capacity | 9.1 gal |
| Maximum Digging Depth | 114.4 in |
| Maximum Reach at Ground Level | 192.0 in |
| Maximum Dumping Height | 128.8 in |
| Bucket Breakout Force | 5262.0 lbf |
| Stick Digging Force - Standard | 3547.0 lbf |
| Blade Size (H x W) | 13.8 x 61 in |
| Arm Configuration | Long Arm (Standard) |
| Auxiliary Circuit Flow | 14.2 gal/min |
| Track Shoe Type | Rubber |
| Ground Pressure | 4.1 psi |
Current Promotions
Current promotions can save you money. We offer promotions that may include Low finance rates, cash back, bonus attachments and more. Check out our current promotional offers to see what may apply to your next equipment purchase.
Dig Deep, Save Bigger. Own a legendary Bobcat Mini Excavator today and pay 0% interest for up to 48 months OR secure up to $15,700 in rebates in lieu of financing.
Specifications and images may vary in accuracy.
