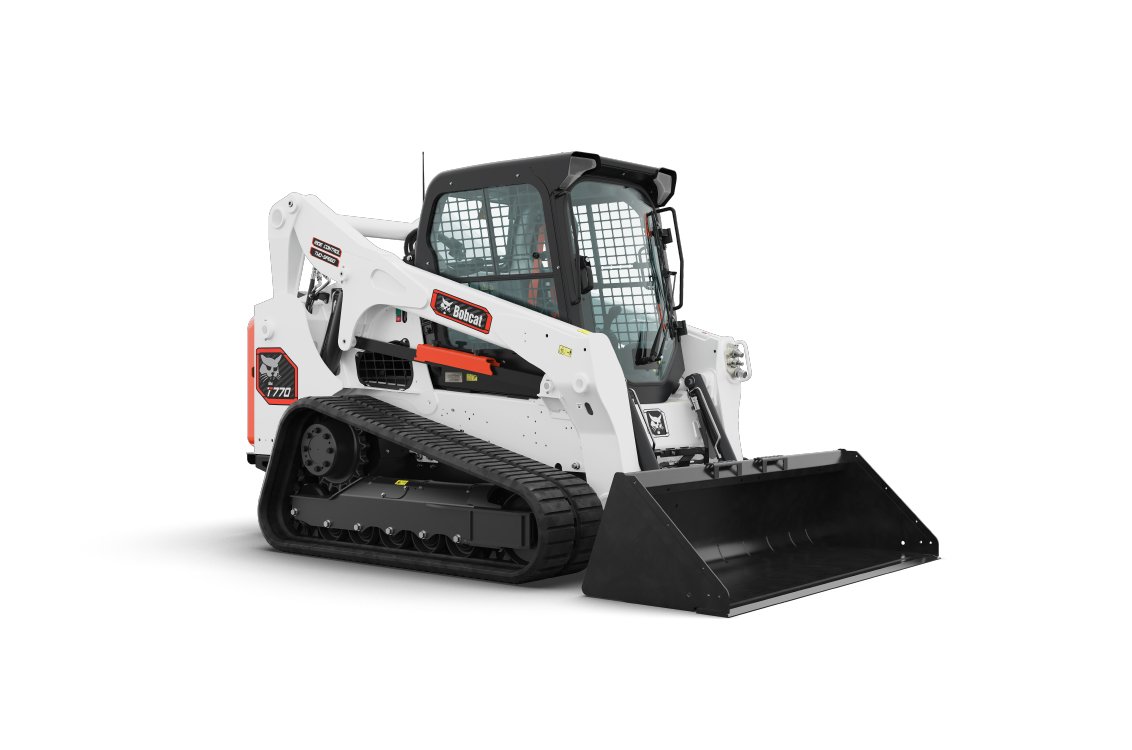

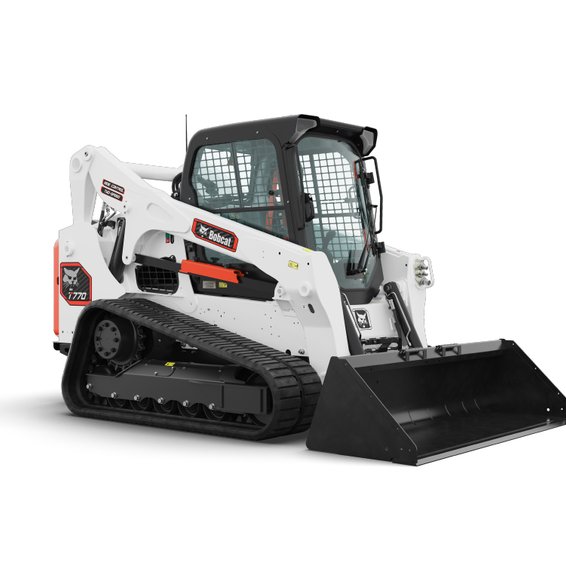

Bobcat T770 Compact Track Loader
Dominate the most demanding jobsites with the Bobcat T770, a heavy-duty compact track loader built for extreme lifting and aggressive grading. Powered by a 92-horsepower engine, this 10,515-pound machine utilizes a massive 3,475-pound rated operating capacity to effortlessly haul oversized pallets and dense earth. Operators can easily clear towering commercial dump trucks and hoppers thanks to an impressive 132-inch hinge pin height.
Despite its immense size, the T770 distributes its weight to achieve a remarkable 4-psi ground pressure, allowing it to glide over soft terrain and mud without getting bogged down. Outfitted with a 44-gallon fuel tank and up to 37 gpm of high-flow auxiliary hydraulics, this loader is primed to run the most power-hungry forestry or construction attachments all day long.
Specifications
| Operator Protection | ROPS |
| Control Type | Optional Joystick Control |
| Operating Weight | 10327.0 lbs |
| Length with Bucket | 141.6 in |
| Overall Width | 78.0 in |
| Height to Top of Cab | 81.3 in |
| Track Width | 17.7 in |
| Ground Pressure | 4.2 psi |
| Engine Manufacturer | Kubota |
| Engine Model | V3800 |
| Gross Horsepower | 92.0 hp |
| Emissions Tier | Tier 4 Interim |
| Fuel Tank Capacity | 27.2 gal |
| Rated Operating Capacity (ROC) | 3475 lbs |
| Tipping Load | 9929 lbs |
| Height to Hinge Pin | 132.0 in |
| Standard Auxiliary Flow | 23.0 gal/min |
| High Auxiliary Flow | 36.6 gal/min |
| Transmission | Hydrostatic |
| Travel Speed (low) | 6.1 mph |
| Travel Speed (high) | 10.7 mph |
