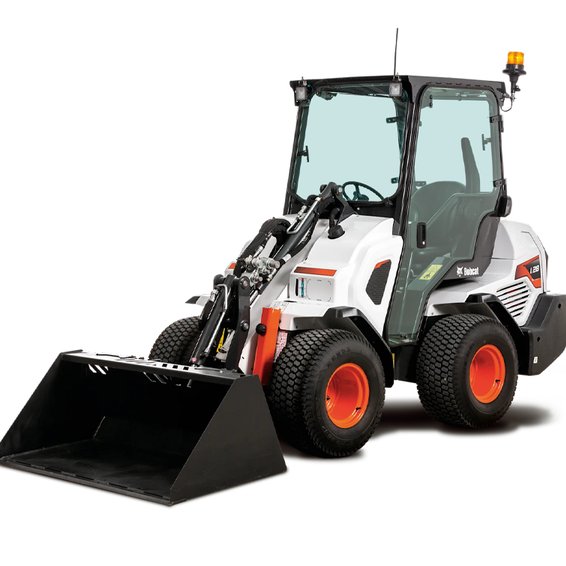

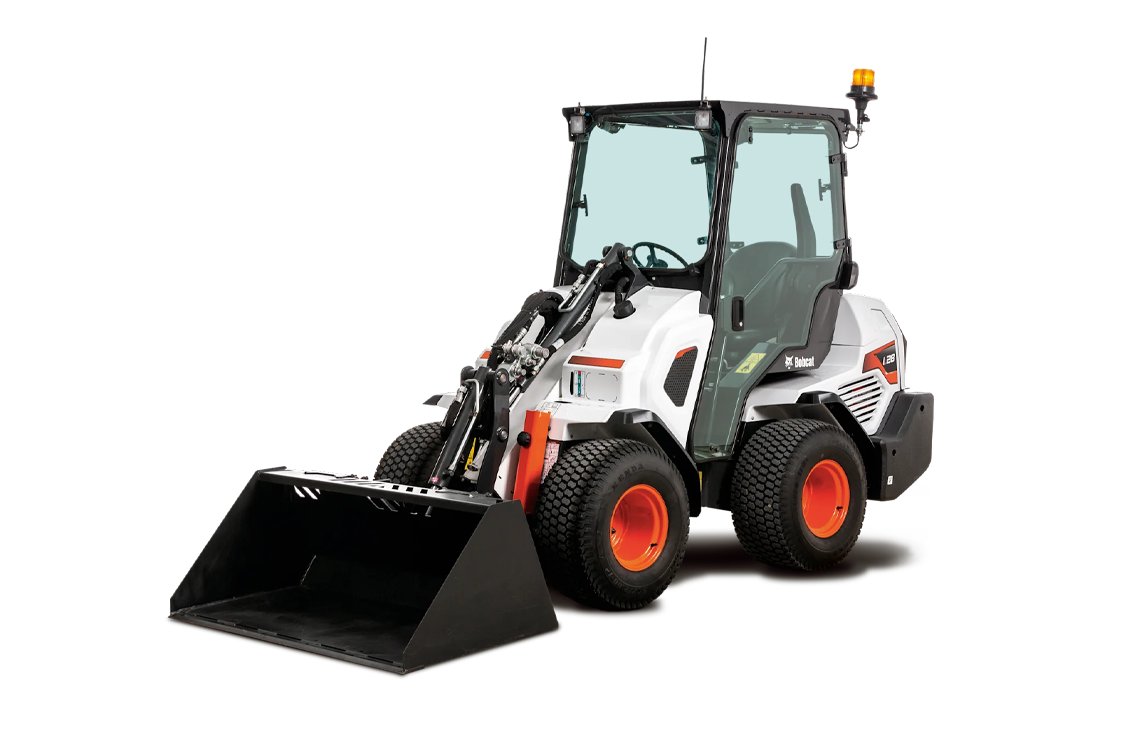

Bobcat L28 Small Articulated Loader
Elevate your lifting capabilities and material placement with the Bobcat L28 small articulated loader, engineered for landscape and hardscape operations that demand extended reach. Driven by a 25-horsepower Kubota diesel engine, this 4,195-pound machine features an innovative telescoping lift arm that achieves a maximum hinge pin height of 104 inches, allowing operators to easily clear the sides of tall dump trailers or stack block pallets. The loader safely manages a straight rated operating capacity of 1,534 pounds and an articulated capacity of 1,222 pounds while maintaining a turf-protecting profile at just 47 inches wide. Delivering a top travel speed of 8 mph and 11 gpm of auxiliary hydraulic flow, the L28 consistently powers specialized attachments and transports heavy materials across confined, sensitive terrain.
Specifications
| Operator Protection | ROPS |
| Cab Enclosure | Open (Enclosed Optional) |
| Operating Weight | 4195.0 lbs |
| Overall Length (with Standard Bucket) | 122.4 in |
| Length (Less Bucket) | 93.2 in |
| Overall Width (over Tires) | 550.0 in |
| Overall Height (to top of cab/ROPS) | 78.1 in |
| Ground Clearance | 5.5 in |
| Turning Radius (inside) | 78.2 in |
| Turning Radius (outside) | 100.9 in |
| Gross Horsepower | 24.8 hp |
| Engine Manufacturer | Kubota |
| Engine Model | D1305-E4B-BC-1 |
| Fuel Type | Diesel |
| Emissions Tier | Tier 4 Final |
| Fuel Tank Capacity | 9.6 gal |
| Rated Operating Capacity (straight) | 1534.0 lbs |
| Rated Operating Capacity (articulated) | 1222.0 lbs |
| Straight Tipping Load | 3068.0 lbs |
| Height to Hinge Pin (max) | 104.3 in |
| Max Travel Speed | 8.3 mph |
| Auxiliary Standard Flow | 11.4 gpm |
| System Pressure | 2900.0 psi |
| Tire Size | 23X10.5-12 |
