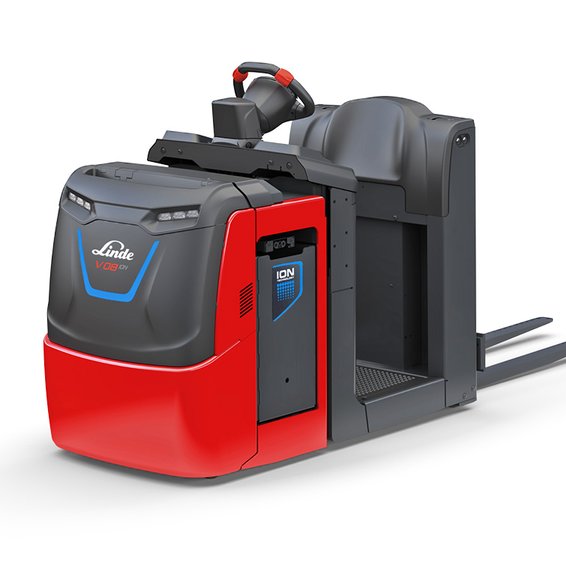

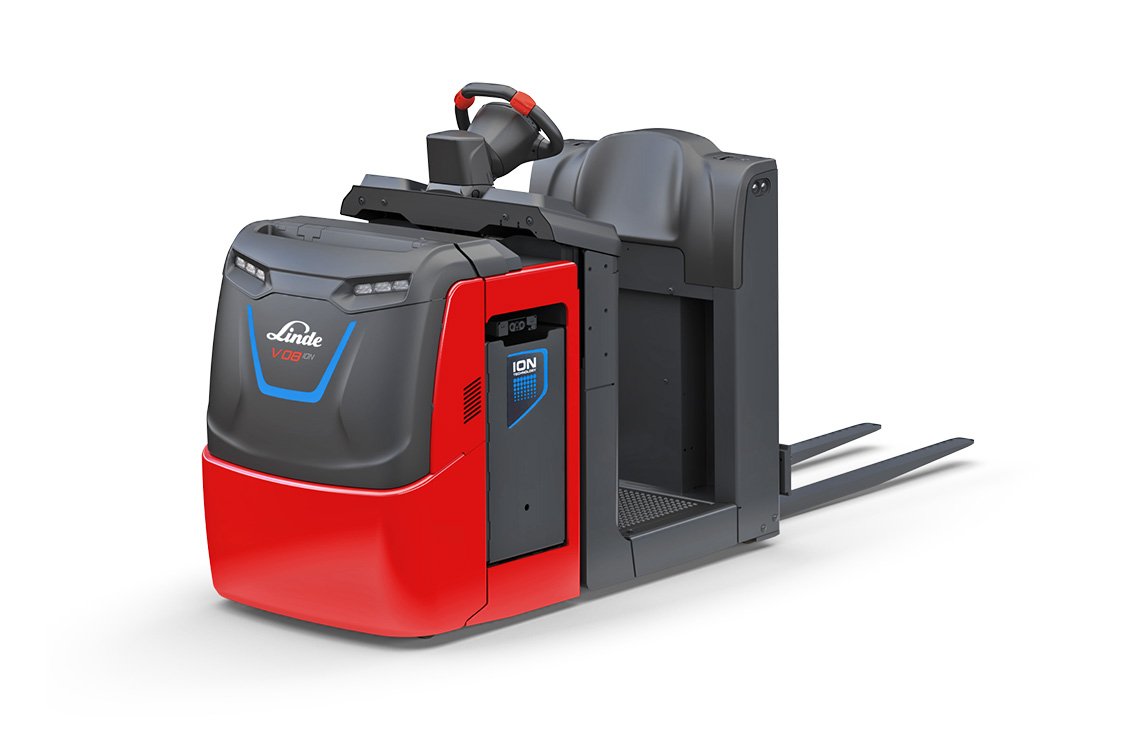

Linde V08-01 Electric Order Picker
The Linde V08-01 (1500 lbs) is a low-level, order picker for quick second-level picks: its operator platform lifts to 47 inches so you can reach the next rack level easily. The forks are fixed to the platform for straightforward handling of pallets or roll containers. A 24V AC drive delivers loaded travel speeds up to 6.2 mph, with Linde steering and OptiLift controls for smooth, precise moves.

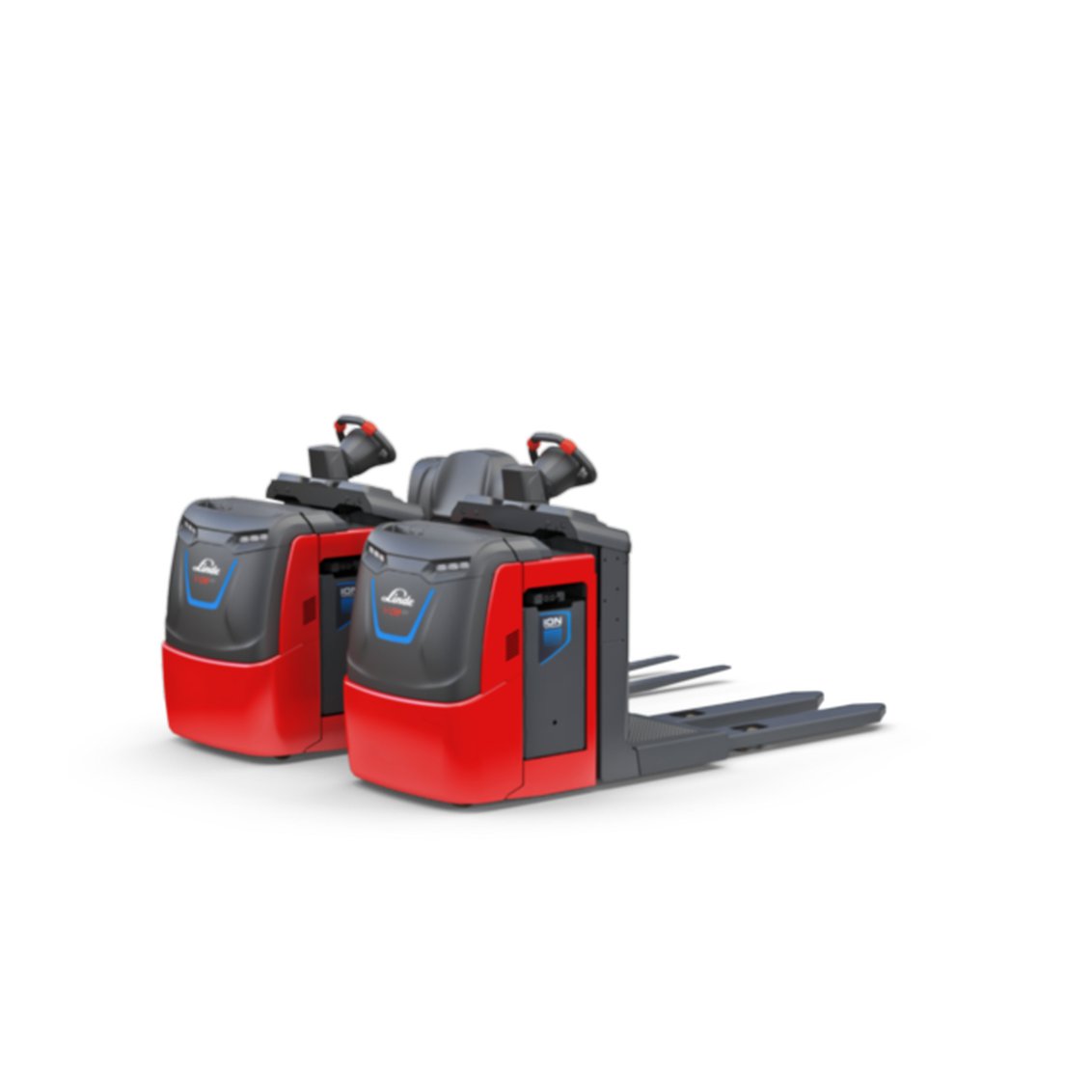

The V08-01 comes in two lift capacity models to suit your needs.
V08-01 700 kg
- Lift Capacity: 1540 lbs
- Lift Height: 41.3 in
- Travel Speed: 6.2 mph
- Turning Radius: 52.95 in
V08-01 1000 kg
- Lift Capacity: 2200 lbs
- Lift Height: 41.3 in
- Travel Speed: 5.6 mph
- Turning Radius: 68.58 in
Specifications
| Maximum Fork Height | 41.9 in |
| Lowered Overall Height | 50.9 in |
| Lift Height | 41.9 in |
| Power Mode | Electric |
| Voltage | 24.0 V |
| Overall Length | 102.4 in |
| Overall Width | 31.5 in |
| Capacity | 1543.2 lbs |
| Travel Speed Loaded | 6.2 mph |
