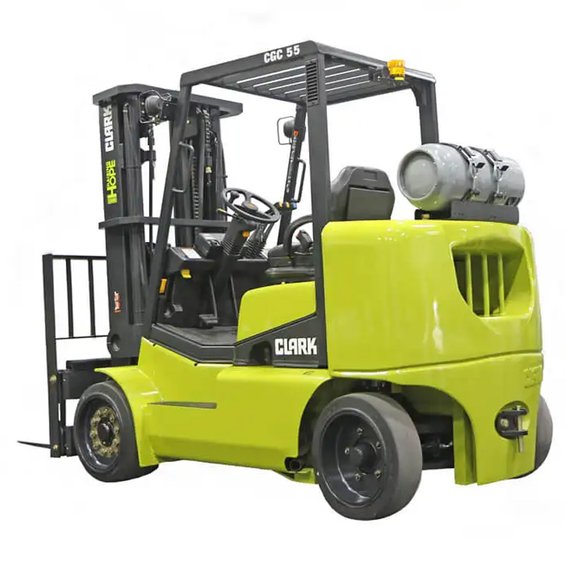

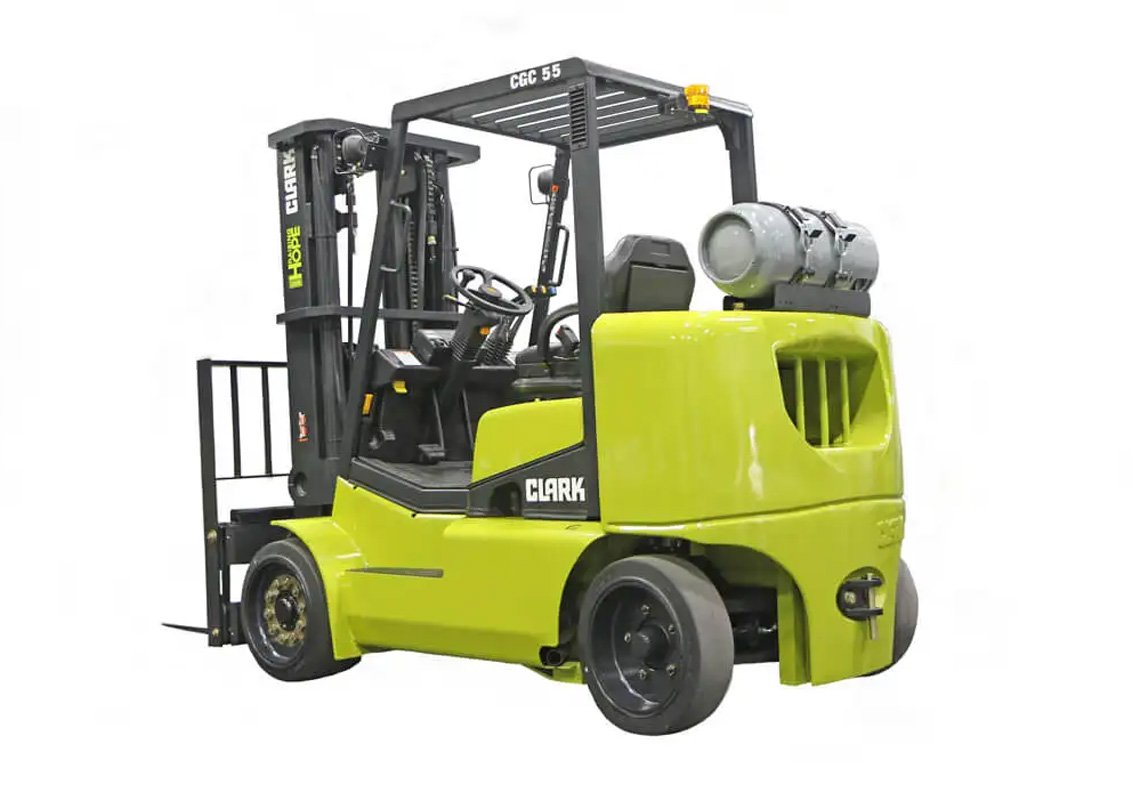

CLARK CGC55 IC Cushion Forklift
The CLARK CGC55 is a heavy-duty IC cushion forklift made for tight, smooth-floor spaces, such as manufacturing cells, trailers, boxcars, building-materials handling, paper rolls, cargo and distribution docks. It’s rated at 12,000 lb, giving solid capacity in a compact footprint. Turning is agile with an outside turning radius of about 100-in, and the standard 2-stage mast up to 159-in. 3-stage masts are also available. The mix of cushion tires, short radius, and flexible mast options makes the CGC55 a strong fit wherever heavy loads meet limited space.
This forklift incorporates Clark's history in ergonomics, power, safety, durability, and performance to offer a machine that is high performance and offers great value to your business. Contact your local Westerra Equipment dealership to learn more or to demo one today!
Specifications
| Brakes | Power Assist Disc |
| Power Mode | LPG |
| Engine Manufacturer | GM |
| Cylinders/Displacement | 262.0 |
| Engine | Vortec 4300LT |
| Horsepower | 93.0 hp |
| Torque @ RPM | 235.0 ft-lb |
| Standard Mast: Free Lift | 6.9 in |
| Lowered Overall Height | 89.5 in |
| Mast | 3-Stage |
| Maximum Fork Height | 169.0 in |
| Steering | Hydrostatic |
| Transmission | Powershift |
| Number of Speeds | 1F/1R |
| Overall Width | 54.8 in |
| Wheelbase | 70.5 in |
| Overall Length | 107.9 in |
| Tread (Front/Rear) | 43.8/43 |
| Center of Wheelbase | 6.1 in |
| Fork Size (T x W x L) | 2.25 X 6 X 48 in |
| Front Overhang | 18.4 in |
| Height to Top Overhead Guard | 87.2 in |
| Maximum Fork Spread | 48.0 in |
| Minimum Aisle Right Ang Stack | 118.3 in |
| Steer Tire Size | 22 x 7 x 16 |
| Drive Tire Size | 22 x 12 x 16 |
| Lift Capacity | 12000.0 lbs |
| Gradeability Loaded @ 1 mph | 18.2 percent |
| Maximum Drawbar Pull | 4750.0 lbs |
| Travel Speed Loaded | 11.7 mph |
| Load Center | 24.0 in |
| Max Fork Height Rated Capacity | 180.0 in |
