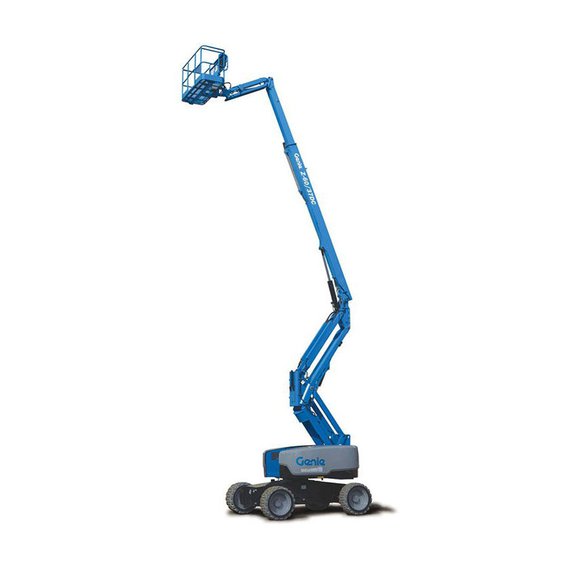

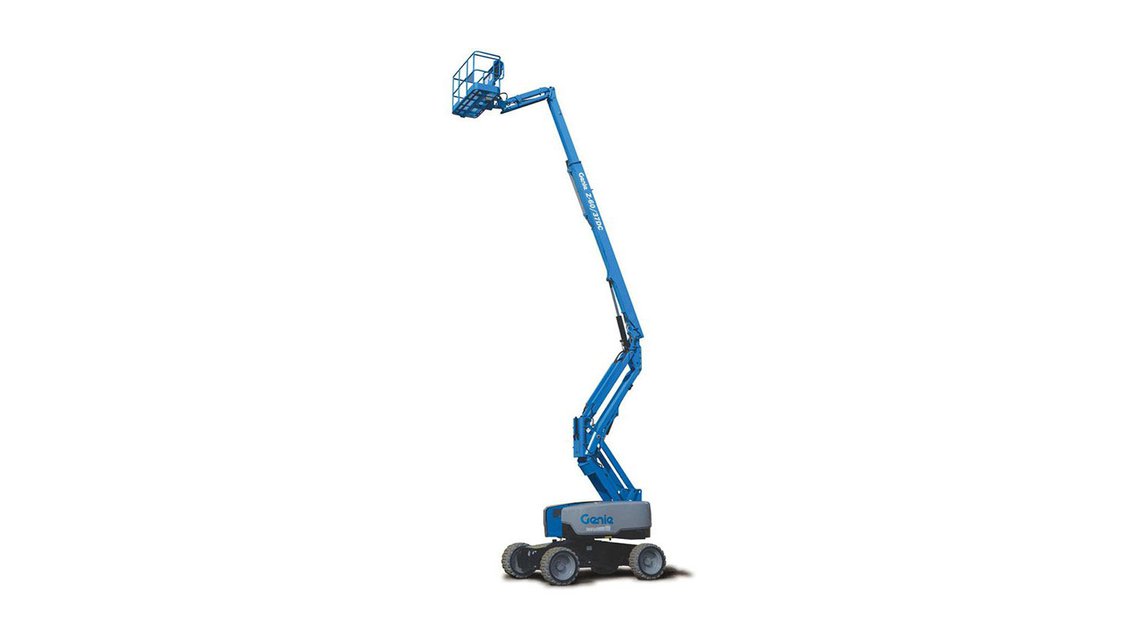

Genie Z60 Articulated Boom Lift
Extend your range of motion with the Genie Z60 articulated boom lift. Work with greater efficiency in high elevation applications, for both outdoor and indoor jobs. Adaptable to various surroundings and tasks, the Z60 offers a horizontal reach of 435inches and maximum platform capacity of 500 lbs. Add an articulated boom lift to your operations and benefit from increased work safety and higher job productivity.
Specifications
| Drive | 2WD |
| Travel Speed (Lowered) | 3.0 mph |
| Travel Speed (Raised) | 0.68 mph |
| Maximum Platform Capacity | 500.0 lbs |
| Maximum Platform Height | 724.0 in |
| Horizontal Reach | 435.0 in |
| Platform Rotation | 180.0 degrees |
| Platform Size | 30 X 72 in |
| Engine | DSG-423 |
| Engine Manufacturer | Ford |
| Horsepower | 75.0 hp |
| Power Mode | Hybrid |
| Fuel Tank Capacity | 20.0 gal |
| Hydraulic Tank Capacity | 45.0 gal |
| Ground Clearance | 16.0 in |
| Inside Turning Radius | 120.0 in |
| Operating Weight | 22520.0 lbs |
| Outside Turning Radius | 239.0 in |
| Overall Width | 97.0 in |
| Stowed Height | 106.0 in |
| Stowed Length | 321.0 in |
| Wheelbase | 99.0 in |
| Tire Size | 385/65D19.5 |
| Gradeability | 25.0 percent |
Current Promotions
Current promotions can save you money. We offer promotions that may include Low finance rates, cash back, bonus attachments and more. Check out our current promotional offers to see what may apply to your next equipment purchase.
Specifications and images may vary in accuracy.
Data Powered By EquipmentWatch
Related Equipment

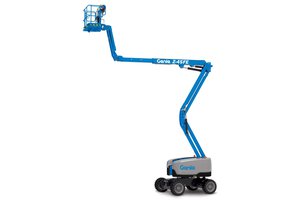

Genie Z45 Articulated Boom Lift
Maximum Platform Height: 546.0 in
Horizontal Reach: 300.0 in
Platform Size: 30 X 72 in
Horizontal Reach: 300.0 in
Platform Size: 30 X 72 in

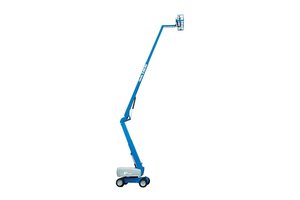

Genie Z80 Articulated Boom Lift
Maximum Platform Height: 936.0 in
Horizontal Reach: 720.0 in
Platform Size: 36 X 96 in
Horizontal Reach: 720.0 in
Platform Size: 36 X 96 in

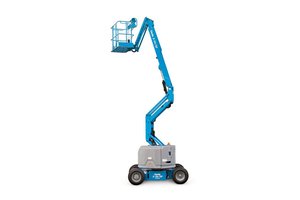

Genie Z34 Articulated Boom Lift
