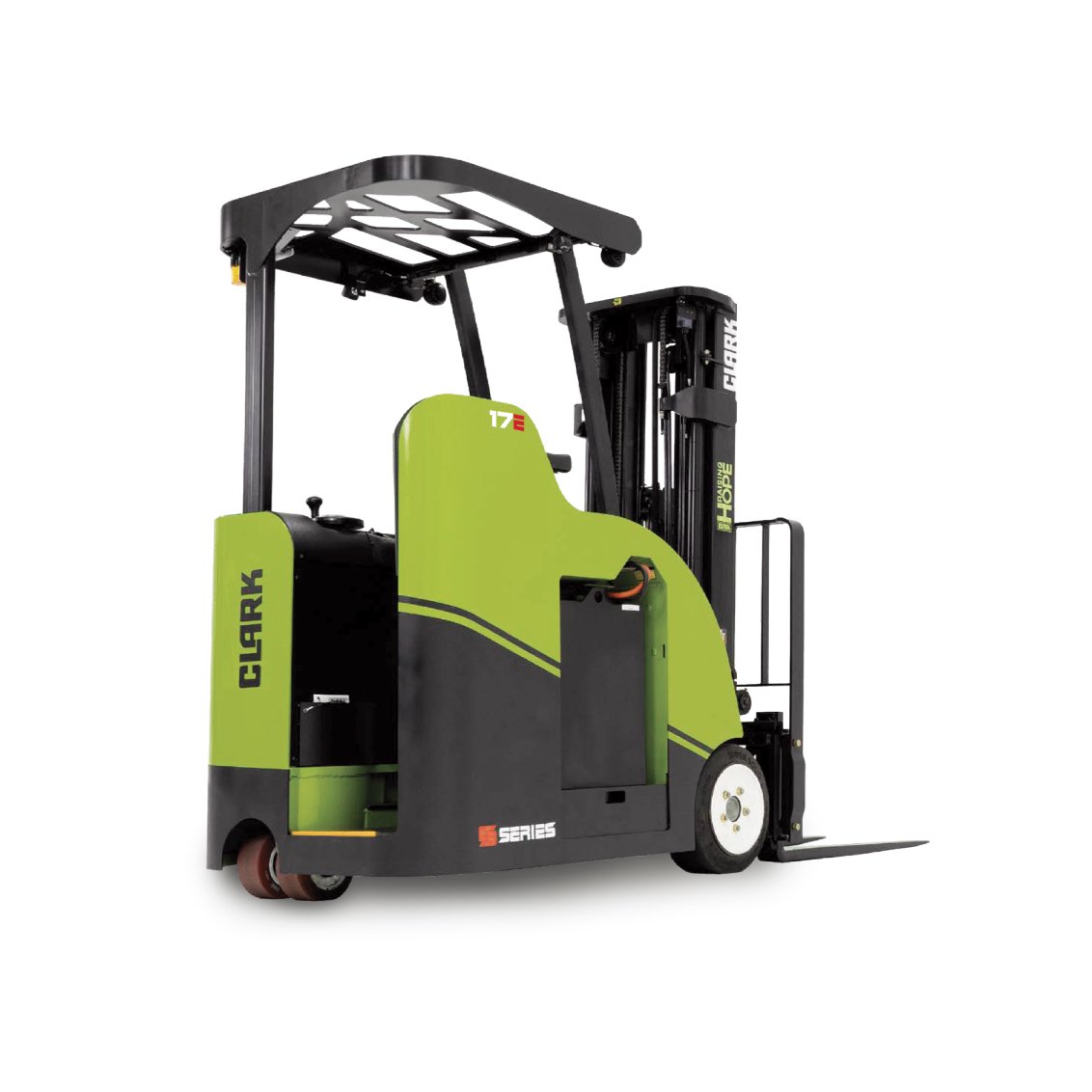

Clark SES17 Electric Stand-Up Cushion Forklift

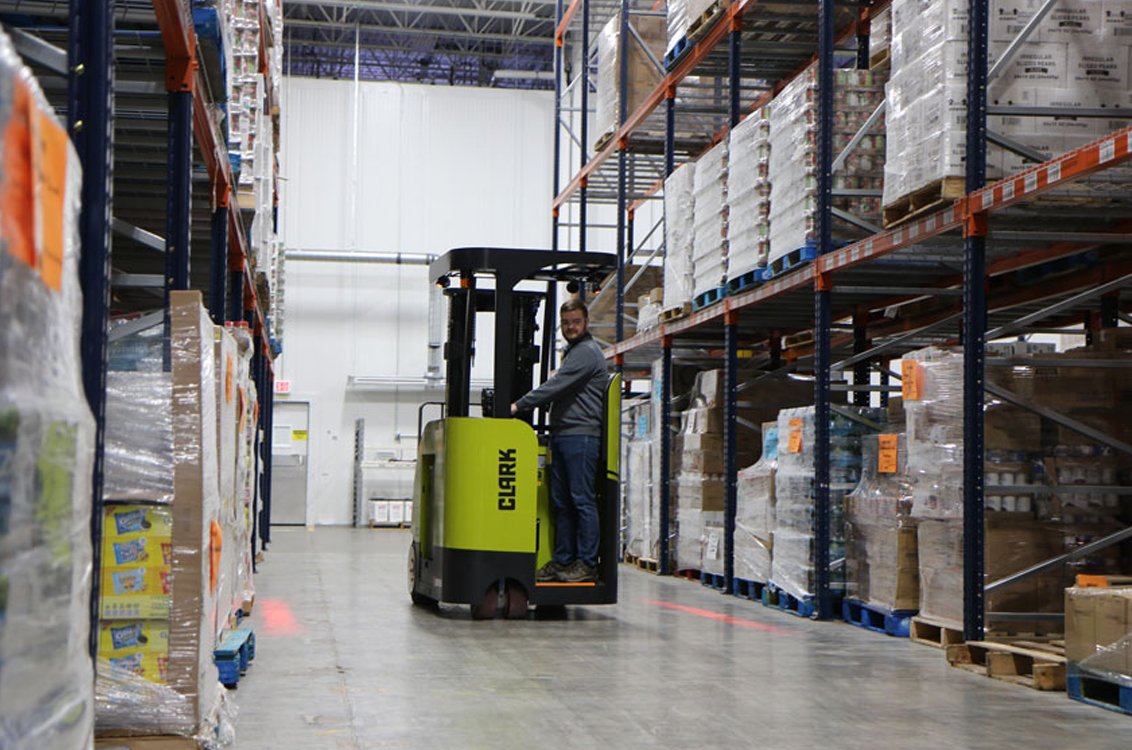

Step up throughput in high-density warehouses with the Clark SES17, a premium 3,500-pound capacity electric stand-up forklift. Built for narrow-aisle efficiency, this agile machine combines a 100% AC system with a maintenance-free electric braking design to lower operating costs and maximize runtime.
Operators benefit from a suspended floating floorboard that absorbs dock-shock, paired with a synchronized armrest and joystick control for ideal posture. When configured with the premium Quad-stage mast, the SES17 safely hoists loads up to 276.5 inches using a rigid nested I-beam design and an 8-roller carriage to suppress load wobble. Complete with automated curve control and a 5-inch color Smart Dash, it delivers swift, confident handling in tight spaces.
Specifications
| Lift Capacity | 3500.0 lbs |
| Up to Max Lift Height | 276.5 in |
| Free Lift | 71.0 in |
| Load Centre | 24.0 in |
| Mast Type | Standard Triple Stage (Optional Quad Stage) |
| Steering Type | Advanced Electric Steering |
| Operator Protection | Stand Up Overhead Guard |
| Operating Weight | 9043.0 lbs |
| Overall Width | 42.0 in |
| Overall Length (to Fork Face) | 70.9 in |
| Overhead Guard Height | 86.8 in |
| Turning Radius | 58.1 in |
| Max Travel Speed | 7.3 mph |
| Max Gradeability | 15.0 % |
| Brake Type | Maintenance-Free Electric |
| Max Lift Speed | 116.1 fpm |
| Front Tire Size | 18 x 8 x 12.12 in |
| Rear Tire Size | 9 x 5 in |
| Tire Type | Cushion |
| Power Mode | Battery (Lead-Acid / Li-ION) |
| Voltage | 36 V / 48 V |
