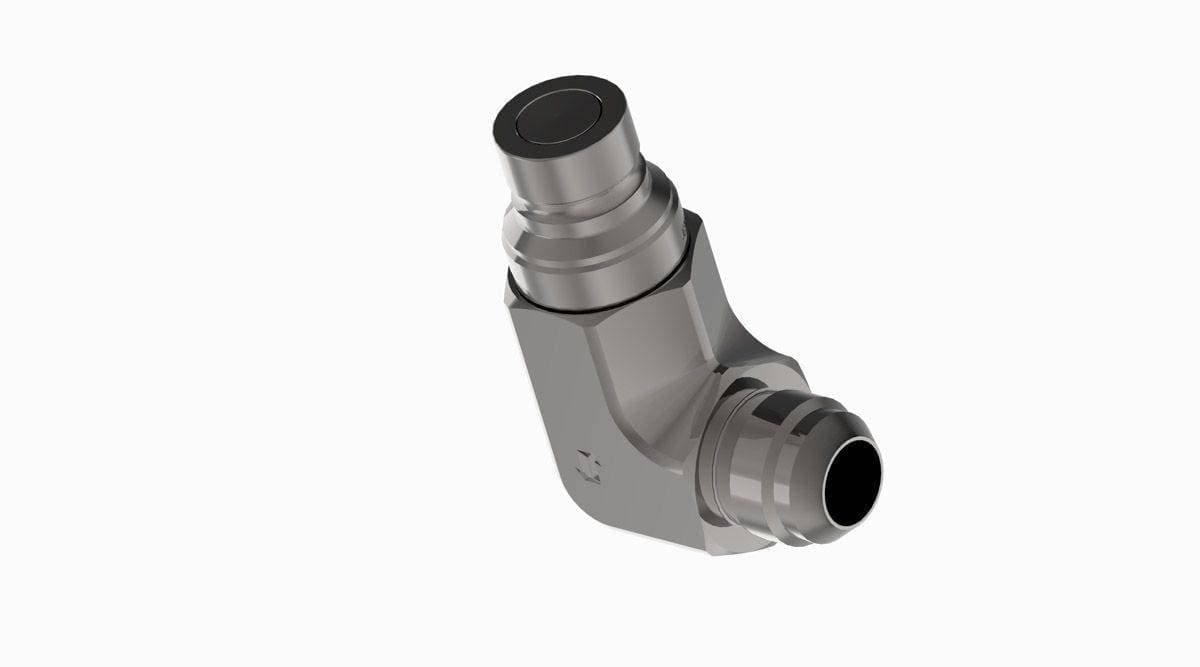

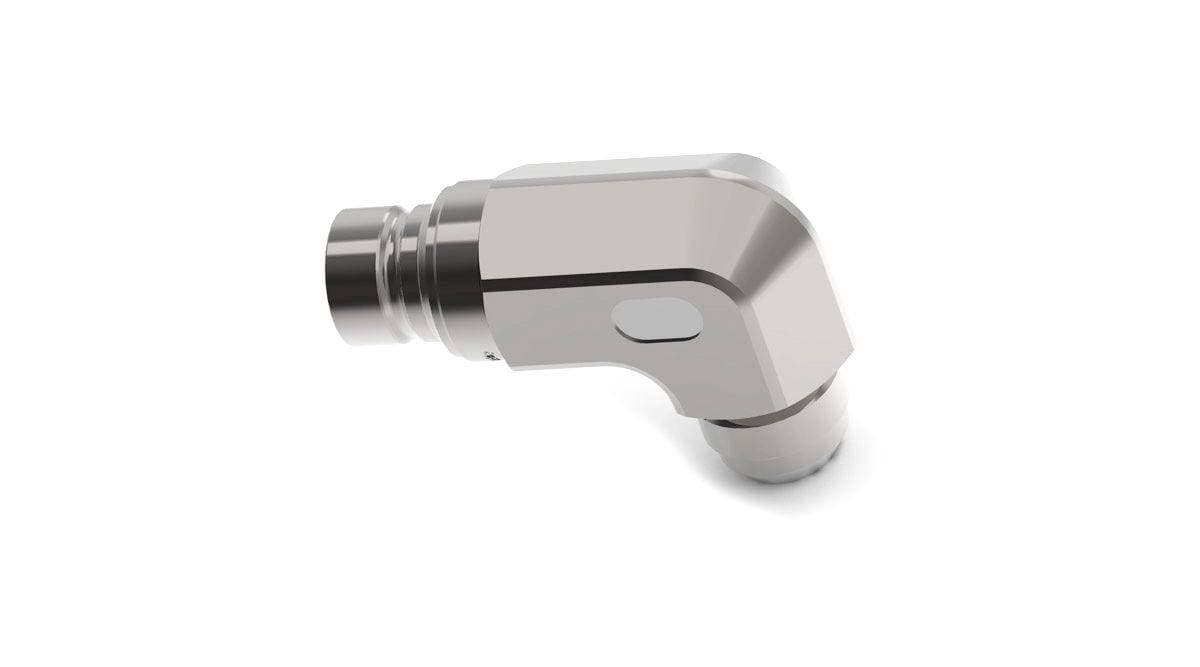

Bobcat 90 Degree Flat Faced Male Coupler, 1/2, 7246795 designed to fit Bobcat Attachments. See below for full compatibility details.
When a 90 degree elbow in the hydraulic circuit is needed, like when connecting attachments, this design allows for easy mounting without the need for additional fittings.
All couplers are identified with stamped supplier part numbers that contain FFI, FI or FFH, FH. FFI/FI and FFH/FH couplers are interchangeable.
- Designed to fit with flat faced couplers
- 90 degree elbow
- No fluid spillage or air inclusion keeping equipment safe and clean
- Avoid costly fluid spills
- Internal components designed to maximize fluid flow with minimal change in pressure
- Push to connect
- Working pressure of 35 MPa
- High grade carbon steel with zinc-nickel plating
- ISO 16028 interchange
- Half inch body size
- 1-1/16 inch JIC thread
- Manfacturers Part Number: FFH08-61/34S M
