Doosan DA40-5 Articulated Dump Truck
Ideal for construction sites as well as mining and quarrying applications, the Doosan® DA40-5 articulated dump truck offers excellent driving stability, equal weight distribution, and superior traction along with additional load capacity, superior power and better productivity. Its flexible and agile undercarriage ensures all six wheels have permanent ground contact, so you can achieve extreme performance in off-road conditions.
Contact your local Westerra Equipment sales representative to learn more or to demo one today.
Specifications
| Axle Configuration | 6 x 6 |
| Gross Weight | 158292.0 lbs |
| Overall Height | 157.5 in |
| Overall Length | 416.9 in |
| Body Capacity | 34.0 cu yd |
| Horsepower | 483.0 hp |
| Engine Manufacturer | Scania |
| Engine Model | DC13 |
| Power Mode | Diesel |
| Number Of Speeds F/R | 8F/4R |
| Transmission | Automatic |
| Rear Axle Weight (Gvw) | 106940.0 lbs |
| Front Axle Weight (Gvw) | 48045.0 lbs |
| Net Weight | 70107.0 lbs |
| Overall Width | 136.8 in |
| Rated Payload | 40.0 mt |
Current Promotions
Current promotions can save you money. We offer promotions that may include Low finance rates, cash back, bonus attachments and more. Check out our current promotional offers to see what may apply to your next equipment purchase.
Receive a cash rebate up to $28,000 and 3 year (5,000hr) powertrain & hydraulics warranty on select Doosan® mini excavators, crawler excavators, wheel excavators, log loaders, material handlers, articulated dump trucks, or wheel loaders.
Get financing as low as 0% APR plus powertrain and hydraulics extended warranty and additional rebate for DX140.

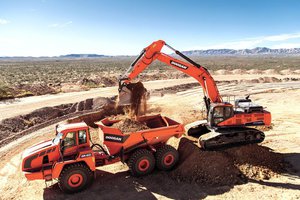

Purchase a new Doosan Articulated Dump Truck model DA30 / DA40 / 45 and receive aggressive lease rates PLUS 3-year/5,000-hour powertrain and hydraulics extended warranty.
